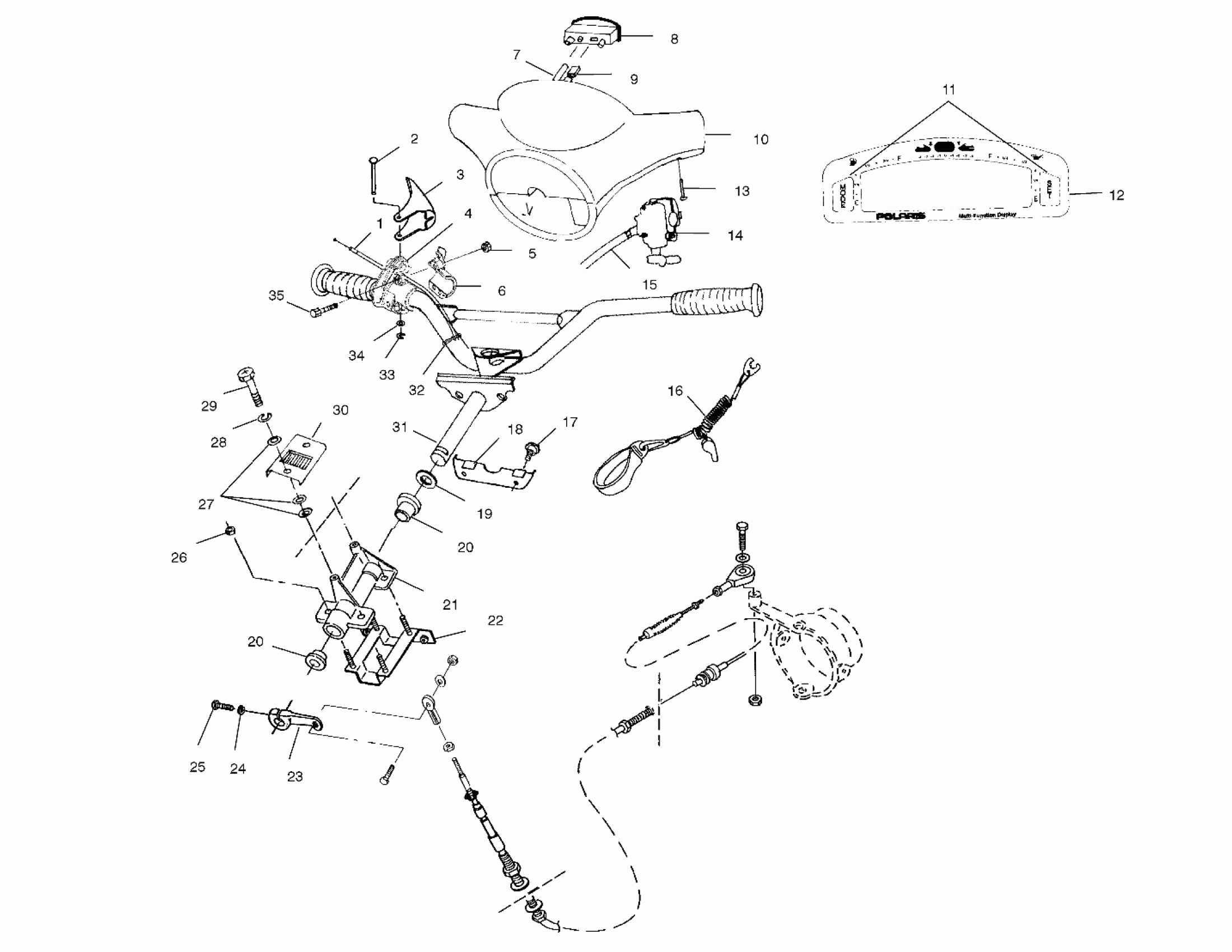

Polaris PRO 785 - B994978 STEERING - B994978 (4951515151a013) Diagram

#

Description
Price

1

CABLE,THROTTLE

7080504

$102.99

2

Pin, Retaining

7661628

Unavailable

3

LEVER,THROTTLE

5432372

Unavailable

4

BLOCK,SPLIT-THROTTLE

5432729

$9.05

5

NUT, HEX, S.S.(10)

7541931

$5.99

6

CLAMP,SPLIT-THROTTLE BLK.

5432728

Unavailable

7

PITOT LINE,90DEG FORMED,235CM. Substituted by 8450070-277

8450070-235

$24.25

8

GAUGE-MFD,12 PIN,6 RPM TRIM Substituted by 2872638

3280307

Unavailable

9

TERM.BOARD ASM,MFD

2434014

Unavailable

9

HARNESS,WIRE,MFD.

2460655

Unavailable

10

PAD,H'BAR,MFD,TRIM,BLK

5432789-070

Unavailable

11

KIT,MFD.BUTTON Substituted by 2201263

2200826

Unavailable

12

BEZEL,MFD,W/OVERLAY

3280266

Unavailable

13

SCREW, SS.(10)

7512047

$1.99

14

SWITCH

4110221

$249.99

15

CABLE,CHOKE,67.92

7080668

$35.24

16

LANYARD,W/WHISTLE

7080675

Unavailable

17

BOLT,SHOULDER(10)

7515387

Unavailable

18

STOP, STEERING

5222677

Unavailable

19

BUSH.(10)

7555875

$7.94

20

BUSHING,STRG.SUPPORT

5431382

Unavailable

20

BUSHING,STRG.SUPPORT

5431382

Unavailable

21

HUB,SPRT.STRG/ANODE.

5131509

Unavailable

22

PLATE, BOLT

1060101

Unavailable

23

ARM,STRNG.,ANODIZED

5131441

$113.99

24

WASHER, LOCK, S.S.(10)

7552610

Unavailable

25

BOLT, S.S.(10)

7515375

$3.81

26

NUT, HEX, S.S.(10)

7542335

Unavailable

27

WASHER, FLAT, S.S.(10)

7555837

$1.59

28

WASHER, LOCK(10)

7552615

Unavailable

29

SCREW, S.S.(10)

7512051

$1.27

30

PLATE-RECEIVER,LATCH,SLT-PRO

5243533

$15.08

31

H'BAR ASM,W/GRIP,BLK,SL

1860125-070

$172.22

32

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

33

RING,RETAIN.EXT.,S.S.(10)

7710426

Unavailable

34

WASHER, FLAT, S.S.(10)

7555840

$3.33

35

SCREW,SS.,(10)

7517520

$2.38
