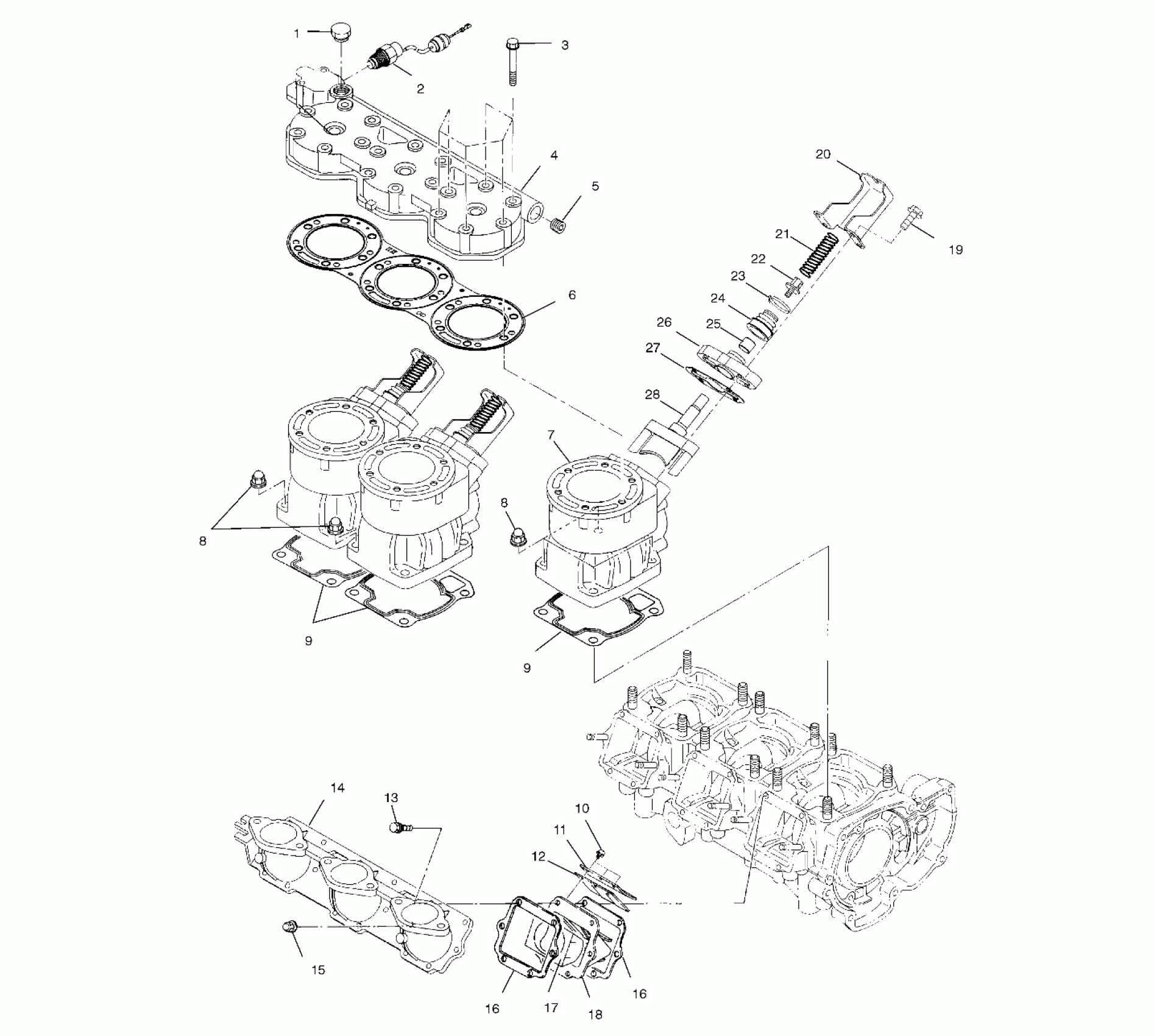

Polaris PRO 785 - B994978 CYLINDER, HEAD & EXHAUST VALVES - B994978 (4951515151c003) Diagram

#

Description
Price

1

PLUG

3240219

$12.21

2

SWITCH,THERMO

3240223

Unavailable

3

BOLT,FLANGE

3085582

$2.74

4

HEAD-CYLINDER

3240370

$515.96

5

PLUG

3240306

Unavailable

6

GASKET-HEAD

3240371

Unavailable

7

CYLINDER

3240301

Unavailable

8

NUT,FLANGE CAP

3240253

$6.35

8

NUT,FLANGE CAP

3240253

$6.35

9

GASKET, CYL.

3240249

Unavailable

9

GASKET, CYL.

3240249

Unavailable

10

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

11

Stopper

3240065

Unavailable

12

VALVE, REED(10)

3240064

Unavailable

13

BOLT-FLANGE

3240372

Unavailable

14

PIPE,INTAKE

3240307

$710.88

15

NUT,FLANGE CAP

3240256

$3.97

16

GASKET, REED VALVE,(10)

3084148

Unavailable

16

GASKET, REED VALVE,(10)

3084148

Unavailable

17

STUFFER

3240310

Unavailable

18

REEDVALVE ASM. (Incl. 10-12)

3240308

Unavailable

19

BOLT,FLANGE

3240318

$1.59

20

BRACKET,ADJUSTER

3240314

Unavailable

21

SPRING

3240319

Unavailable

22

BOLT,WIRE END

3240312

Unavailable

23

CLAMP, HOSE

3240028

Unavailable

24

BOOT

3240315

Unavailable

25

BUSH

3240317

Unavailable

26

COVER,VALVE * (Incl. 25)

3240316

$145.60

27

GASKET,VALVE COVER

3240313

Unavailable

28

VALVE,EXHAUST

3240349

$119.05
