Description

Price

1

PLUG

3240046

Unavailable

2

BOLT, FLANGE

3240047

Unavailable

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

4

BOLT, FLANGE

3240048

Unavailable

5

BUSHING, STARTER

3083669

Unavailable

5

BUSHING, STARTER

3083669

Unavailable

6

BOLT, FLANGE

3240285

Unavailable

7

COVER, MAG Substituted by 3240221 (Incl. 5)

3240300

Unavailable

8

Bolt, Flange

3084134

Unavailable

9

CRANKCASE 3 (Incl. 3)

3240299

Unavailable

10

STUD

3240032

Unavailable

11

ASM,GEARCASE (Incl. 3,5,10,11,16-22)

3240368

Unavailable

12

BOLT, FLANGE(10)

3240040

Unavailable

13

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

14

SEAL, OIL (PTO Inside)

3240042

Unavailable

15

SEAL, OIL (PTO Outside)

3240043

Unavailable

16

STUD

3240369

Unavailable

17

PIPE, PULSE

3083798

$9.52

18

BOLT&WASHER ASM.

3240035

Unavailable

19

BOLT&WASHER ASM.

3240038

Unavailable

20

BOLT&WASHER ASM.

3240037

Unavailable

21

BOLT&WASHER ASM.

3240036

Unavailable

22

BOLT&WASHER ASM.

3240039

Unavailable

23

SEAL, OIL (MAG Side)

3240041

Unavailable

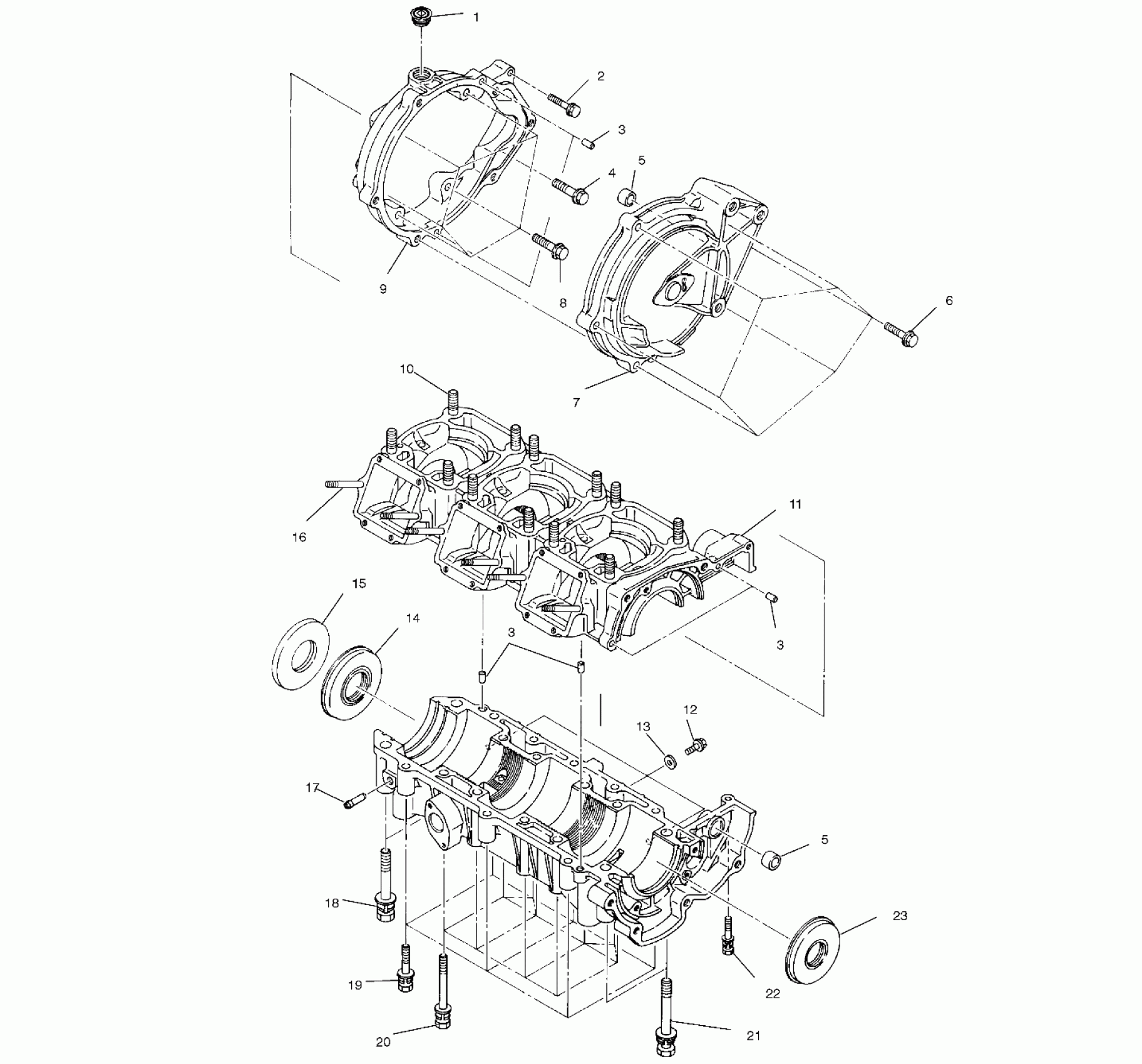

Polaris PRO 785 - B994978 CRANKCASE - B994978 (4951515151c002) Diagram

PLUG

BOLT, FLANGE

PIN, DOWEL Substituted by 3086838

PIN, DOWEL Substituted by 3086838

PIN, DOWEL Substituted by 3086838

BOLT, FLANGE

BUSHING, STARTER

BUSHING, STARTER

BOLT, FLANGE

COVER, MAG Substituted by 3240221 (Incl. 5)

Bolt, Flange

CRANKCASE 3 (Incl. 3)

STUD

ASM,GEARCASE (Incl. 3,5,10,11,16-22)

BOLT, FLANGE(10)

GASKET, ALUM,(10) Substituted by 7555998

SEAL, OIL (PTO Inside)

SEAL, OIL (PTO Outside)

STUD

PIPE, PULSE

BOLT&WASHER ASM.

BOLT&WASHER ASM.

BOLT&WASHER ASM.

BOLT&WASHER ASM.

BOLT&WASHER ASM.

SEAL, OIL (MAG Side)
