TRIM PACKAGE - W014999D (4964886488B003)

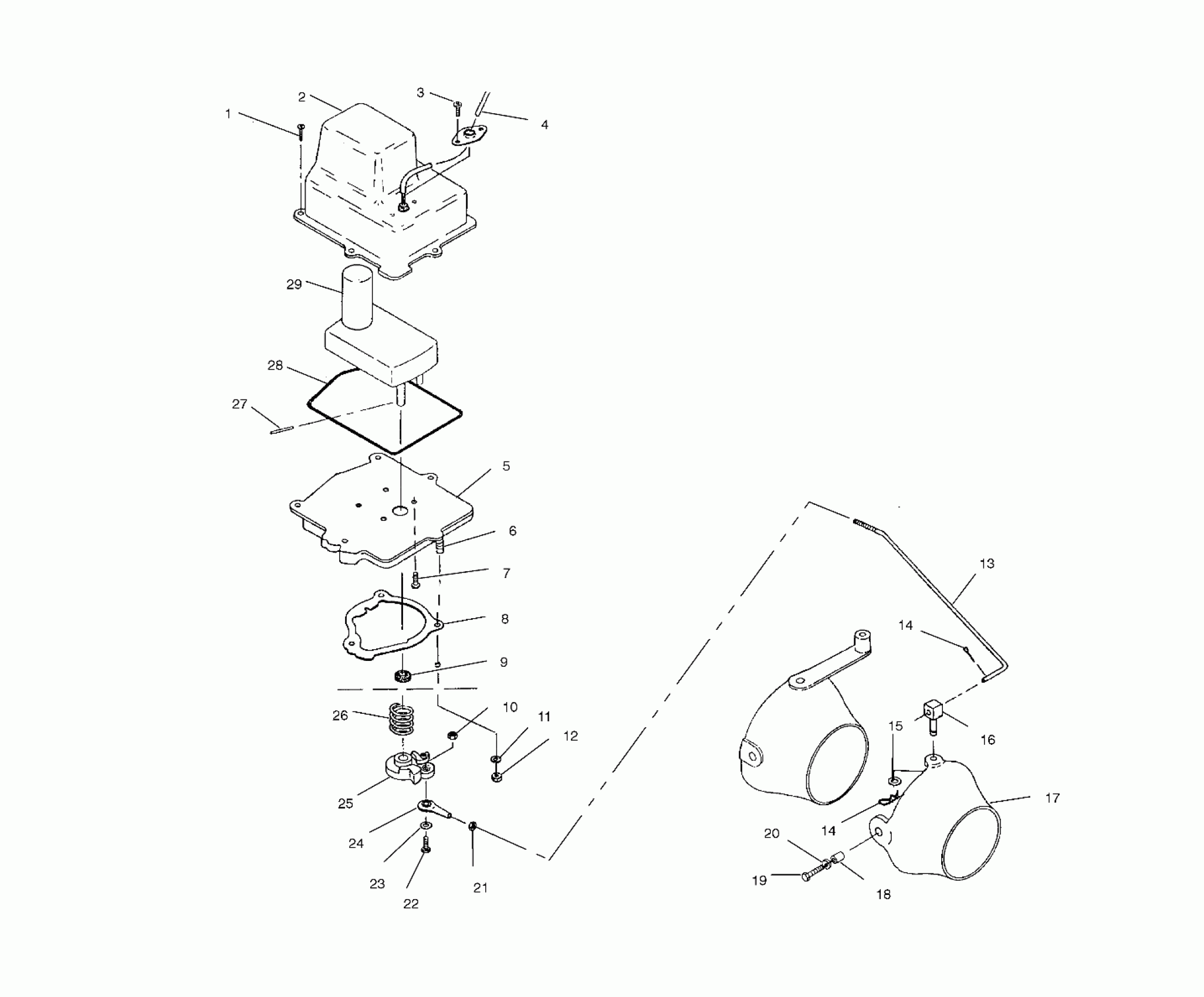

Polaris PRO 1200 - W014999D TRIM PACKAGE - W014999D (4964886488B003) Diagram
#
Description
Price
1
SCREW(10)
7512052
Unavailable
2
COVER,TRIM MTR.
5431551
Unavailable
3
SCREW(10)
7511873
Unavailable
4
HARNESS,TRIM,MOTOR
2460871
Unavailable
5
BASE,MOTOR
5630798
Unavailable
6
STUD,S.S.(10)
5131050
Unavailable
7
SCREW(10)
7511872
Unavailable
8
GASKET, MOTOR BASE
5810818
Unavailable
9
SEAL, OIL
3610042
Unavailable
10
NUT, HEX, S.S.(10)
7541931
$4.79
11
WASHER, FLAT, S.S.(10)
7555839
Unavailable
12
NUT,NYLOK,S.S.(10)
7542133
Unavailable
13
LINKAGE,THREADED
5224670
Unavailable
14
PIN, COTTER(10)
7661010
$1.49
14
PIN, COTTER(10)
7661010
$1.49
15
WASHER(10)
7555866
Unavailable
16
Swivel, Rod End (See Propulsion Pg. B2, Ref. 30)
-------
Unavailable
17
NOZZLE,TRIM
5431765
Unavailable
18
Collar
5130938
Unavailable
19
BOLT, S.S.(10)
7515361
Unavailable
20
WASHER,FLAT,S.S.(10)
7555874
$2.39
21
NUT (10)
1860102
Unavailable
22
BOLT, S.S.(10)
7512041
Unavailable
23
WASHER, FLAT, S.S.(10)
7555837
Unavailable
24
ROD END, S.S.
7060154
Unavailable
25
LEVER,TRIM,HD
5432551
Unavailable
26
SPRING,TRIM,HVY.
7041469
Unavailable
27
PIN,DRIVE
7661646
Unavailable
28
O RING,MTR.COVER
5410756
Unavailable
29
GEARMOTOR ASM,6 RPM
4170018
Unavailable
