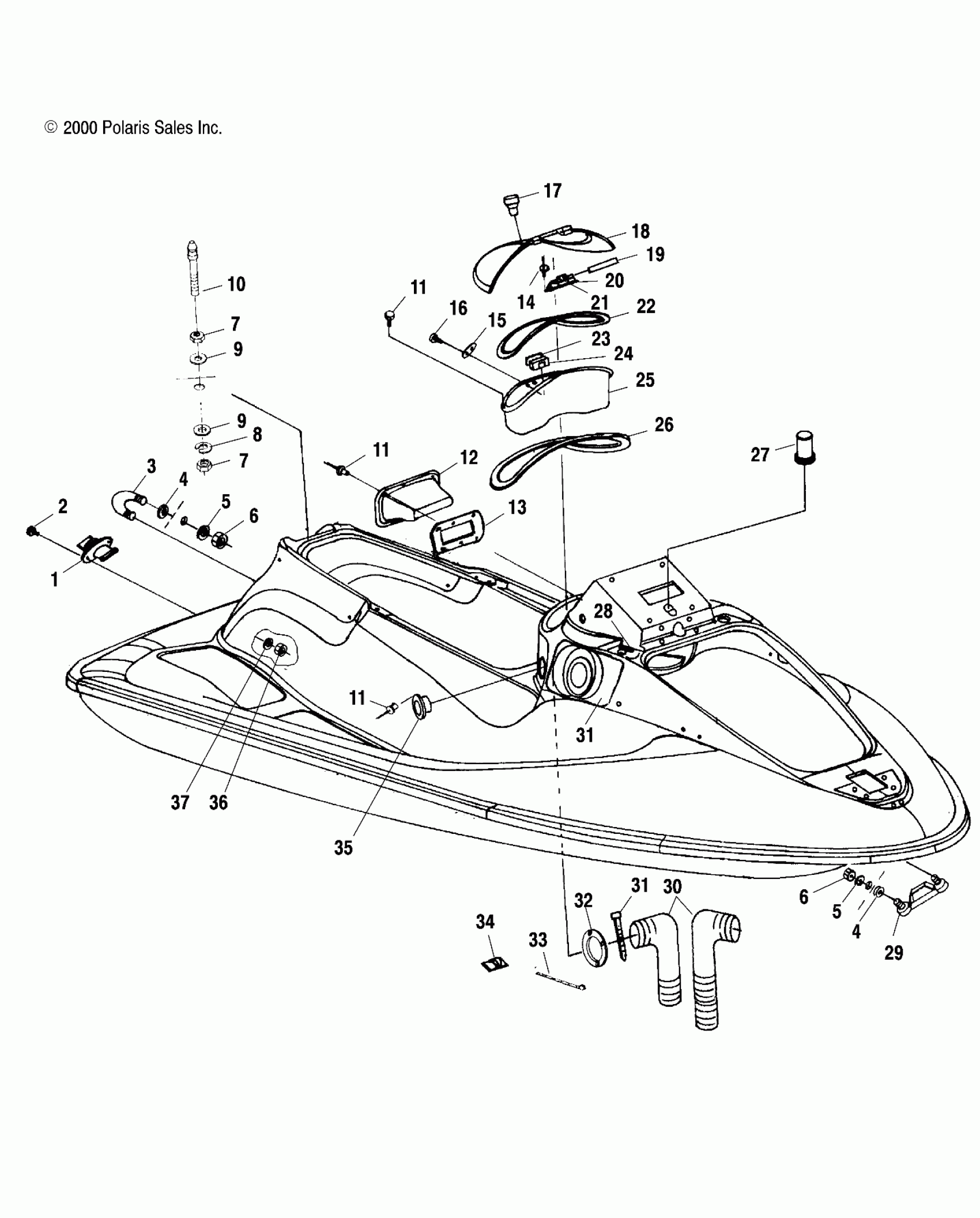

Polaris PRO 1200 - W014999D HULL and BODY - W014999D (4964886488A003) Diagram

#

Description
Price

1

PLUG ASM,BILGE

1060125

Unavailable

2

BOLT, SS.(10)

7512045

$4.99

3

U-BOLT ASM.

1060126

$7.94

4

WASHER,RUBBER(10)

7555870

$0.40

4

WASHER,RUBBER(10)

7555870

$0.40

5

WASHER, FLAT, S.S.(10)

7555839

Unavailable

5

WASHER, FLAT, S.S.(10)

7555839

Unavailable

6

NUT,NYLOK,S.S.(10)

7542133

Unavailable

6

NUT,NYLOK,S.S.(10)

7542133

Unavailable

7

NUT, HEX, S.S.,(10)

7542454

Unavailable

7

NUT, HEX, S.S.,(10)

7542454

Unavailable

8

WASHER, LOCK, S.S.(10)

7552607

$1.39

9

WASHER, FLAT(10)

7555846

$5.56

9

WASHER, FLAT(10)

7555846

$5.56

10

PLUNGER,LATCH

5020753

Unavailable

11

RIVET-POP (50)

7661042

$1.11

11

RIVET-POP (50)

7661042

$1.11

11

RIVET-POP (50)

7661042

$1.11

12

BASE,RECEPTICAL,SEAT,SL2

5432718

Unavailable

13

GASKET,RECEPT.SEATBASE

5811555

Unavailable

14

RIVET-POP (10)

7661039

$0.95

15

PLATE,HOOK,CONSOLE

5211865

Unavailable

16

SCREW,SS.

7516609

Unavailable

17

ASM-LATCH,MACHINED

2632417

Unavailable

18

LID-CONSOLE,HAV RED NON MET

5432660-1126

Unavailable

19

PIN,HINGE,(CONSOLE)

5333612

Unavailable

20

HINGE,CONSOLE(SL2)

5432645

Unavailable

21

SPRING,TORS.CONSOLE,SS

7041660

Unavailable

22

SEAL,CONSOLE

5521430

Unavailable

23

GASKET,HOOK,CONSOLE

5811552

$1.43

24

HOOK,LATCH

5432661

$4.13

25

BOX,GLOVE,BRT.WHI.

5432829-133

Unavailable

26

SEAL,GLOVE BOX

5811565

Unavailable

27

GROMMET-DECK,WIRE HARNESS

5411664

Unavailable

28

DECAL,FUEL,OFF/ON,(SL2)

7077479

$6.59

29

STRAP, BOW

2670150

$49.21

30

DUCT,INLET,AIR,23 INCH

5433496

Unavailable

31

CLAMP,HOSE,SS.

7080766

$2.06

31

CLAMP,HOSE,SS.

7080766

$2.06

32

GASKET-INLET,AIR

5411545

$1.75

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

ANCHOR, CABLE TIE(10)

7080464

Unavailable

35

FLANGE-INLET,AIR

5433220

$9.84

36

NUT, HEX, S.S.(10)

7541931

$5.99

37

WASHER, FLAT, S.S.(10)

7555837

$1.59
