ENGINE MOUNTING - W014999D (4964886488B013)

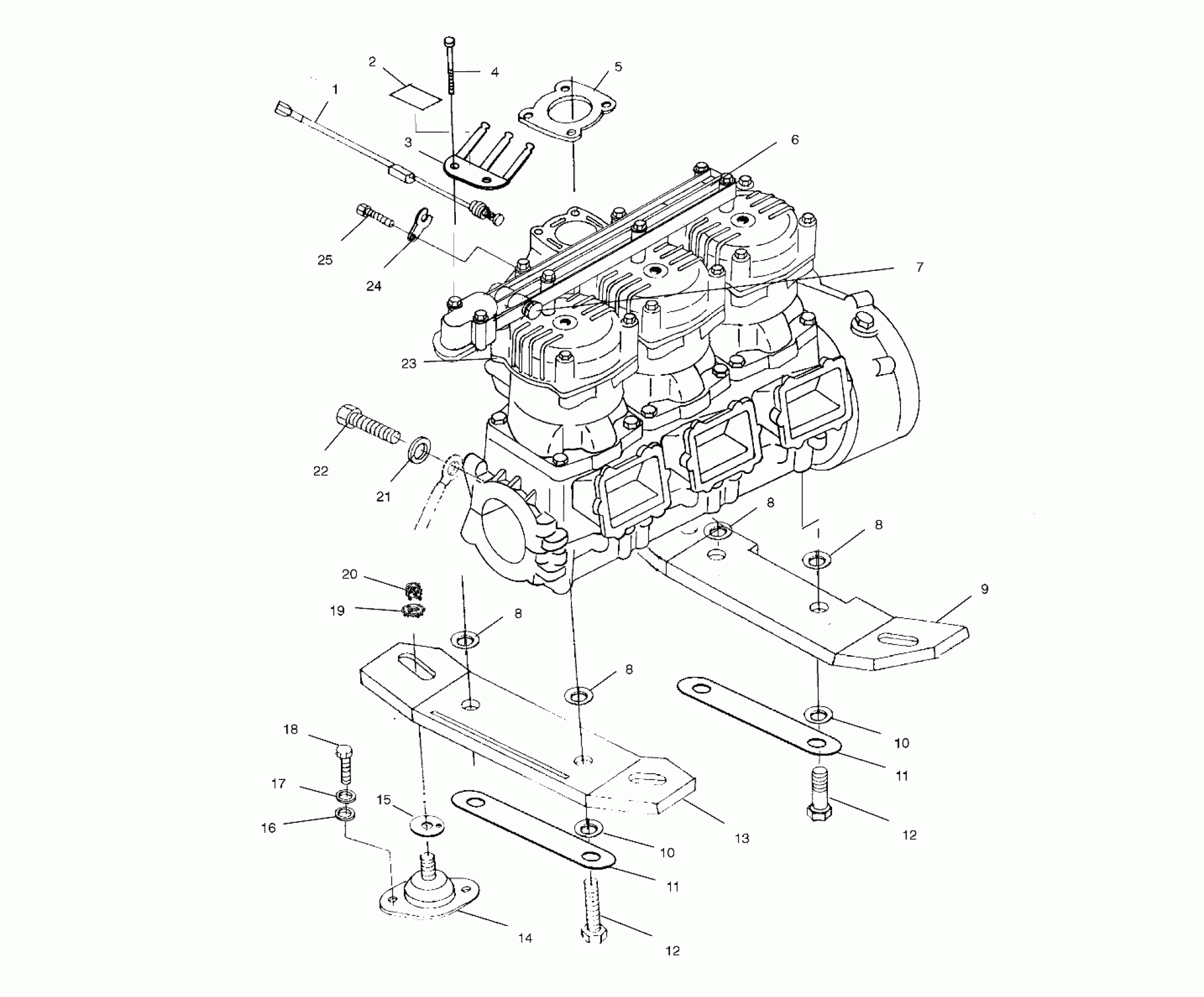

Polaris PRO 1200 - W014999D ENGINE MOUNTING - W014999D (4964886488B013) Diagram
#
Description
Price
1
SWITCH,TEMP,W/CONNECTOR
2410187
Unavailable
2
DECAL,SPARKPLUG REC.
7077026
$2.95
3
GROUND,SPARKPLUG,3CYL
5242476
Unavailable
4
SCREW,SHOULDER,S.S.(10)
7515149
Unavailable
5
GASKET,EXH.PIPE
5830051
Unavailable
6
Decal - Warning (See Cylinder and Manifold Pg. C4, Ref. 2)
-------
Unavailable
7
PLUG,PIPE(10)
7051527
Unavailable
8
WASHER-FLAT,.44X1.25X.10,SS
7556184
Unavailable
8
WASHER-FLAT,.44X1.25X.10,SS
7556184
Unavailable
8
WASHER-FLAT,.44X1.25X.10,SS
7556184
Unavailable
8
WASHER-FLAT,.44X1.25X.10,SS
7556184
Unavailable
9
PLATE-FRONT MOUNT W/WASHER
5631166
Unavailable
10
WASHER-FLAT,.44X.94X.06,18-8SS
7556170
Unavailable
10
WASHER-FLAT,.44X.94X.06,18-8SS
7556170
Unavailable
11
LOCK-MOUNT PLATE
5245460
Unavailable
11
LOCK-MOUNT PLATE
5245460
Unavailable
12
SCREW, SS.
7517330
Unavailable
12
SCREW, SS.
7517330
Unavailable
13
PLATE-REAR MOUNT W/WASHER
5631167
Unavailable
14
MOUNT-ENGINE,LORD,FLAT,50-520
3021253
Unavailable
15
SHIM,ENG.MT.(PWC)
5211727
Unavailable
16
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
17
WASHER, LOCK, S.S.(10)
7552610
Unavailable
18
SCREW(10)
7517627
Unavailable
19
WASHER, FLAT, S.S.(10)
7555848
Unavailable
20
NUT, NYLOK, S.S.(10) Substituted by 7547001
7542725
Unavailable
21
WASHER,LOCK,SS.
7556055
Unavailable
22
BOLT,SS.
7517497
$3.97
23
SHORTBLOCK,W120-TCSP-02A The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.
2201704
Unavailable
24
CLIP,RETAIN,TEMP.SW.
5240876
Unavailable
25
BOLT,(1)
7516603
$10.39
