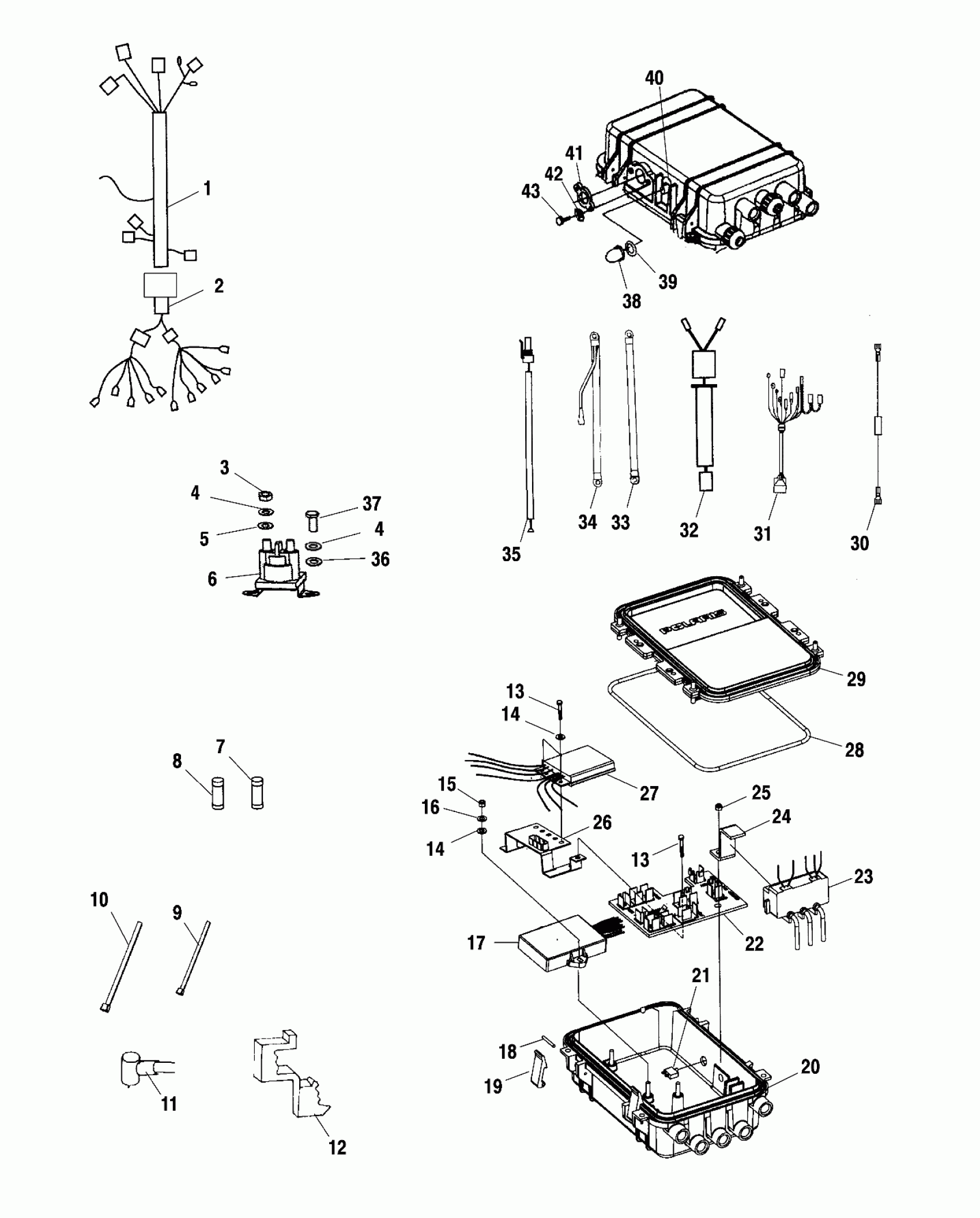

Polaris PRO 1200 - W014999D ELECTRICAL BOX - W014999D (4964886488B009) Diagram

#

Description
Price

1

HARNESS-MAIN,PRO 1200

2460901

Unavailable

2

HARNESS,PIGTAIL,PRO1200

2460846

Unavailable

3

NUT, 6 MM.,S.S.(10)

7546705

$4.79

4

WASHER, LOCK(10)

7552613

Unavailable

4

WASHER, LOCK(10)

7552613

Unavailable

5

WASHER(10)

7555882

$2.07

6

SOLENOID-STARTER EXTERNAL MUNT Substituted by 4010401

4010228

Unavailable

7

FUSE,(10)

4060111

Unavailable

8

FUSE,3AMP,AGW [No Longer Available]

4060161

Unavailable

9

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

INSULATOR-CABLE

5410346

$6.39

12

T-CLIP(10)

7080471

$3.59

13

BOLT, S.S.(10)

7512042

$2.62

13

BOLT, S.S.(10)

7512042

$2.62

14

WASHER, FLAT, S.S.(10)

7555837

Unavailable

14

WASHER, FLAT, S.S.(10)

7555837

Unavailable

15

NUT, SS.(10)

7547036

Unavailable

16

WASHER, LOCK(10)

7552615

$4.99

17

Controller (See Magneto Pg. C9, Ref. 12)

-------

Unavailable

18

PIN,LATCH,ELEC.BOX

5333544

Unavailable

19

LATCH,ELEC.BOX Substituted by 2620120

5432503

Unavailable

20

ELECTRICAL BOX,IGNITION,ASM. (Incl. 18,19,28,29)

2632137

Unavailable

21

CKT.BREAKER,15A.(WATER.)

2434011

Unavailable

22

TERMINAL BOARD,ASM

2410202

$18.25

23

Coil, Ignition, Triple (See Magneto Pg. C9, Ref. 13)

-------

Unavailable

24

BRKT,COIL,3CYL

5244369

Unavailable

25

NUT,NYLOK,SS

7547061

Unavailable

26

ASM-STRAP,GROUNDING W/FUSES

2410250

Unavailable

27

REGULATOR,RECT/CUTOFF

4010387

Unavailable

28

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

29

COVER-ELECTRICAL BOX Substituted by 2631998

5433119

Unavailable

30

HARNESS-JUMPER,PWC

2460928

Unavailable

31

HARNESS-9 WIRE STATOR 3CYL,PVL

2460875

Unavailable

32

HARNESS,TRIM,MOTOR

2460871

Unavailable

33

CABLE-SOLENOID/STARTER

4010237

Unavailable

34

CABLE,RED,BTTRY/SOLENOID

4010386

Unavailable

35

HARNESS,BATTERY/BRKR 1CNCT

2460869

Unavailable

36

WASHER, FLAT, S.S.(10)

7555839

Unavailable

37

SCREW, S.S.(10)

7516805

Unavailable

38

BOOT,THREADED,RED

7080461

Unavailable

39

O-Ring

5411491

Unavailable

40

DECAL-"RESET ELEC SYSTEM"

7077691

Unavailable

41

PLATE,STATOR,1 HOLE

5432574

Unavailable

42

WASHER(10)

7555836

$3.99

43

SCREW,1/4-20X1.0(10)

7517830

$2.71
