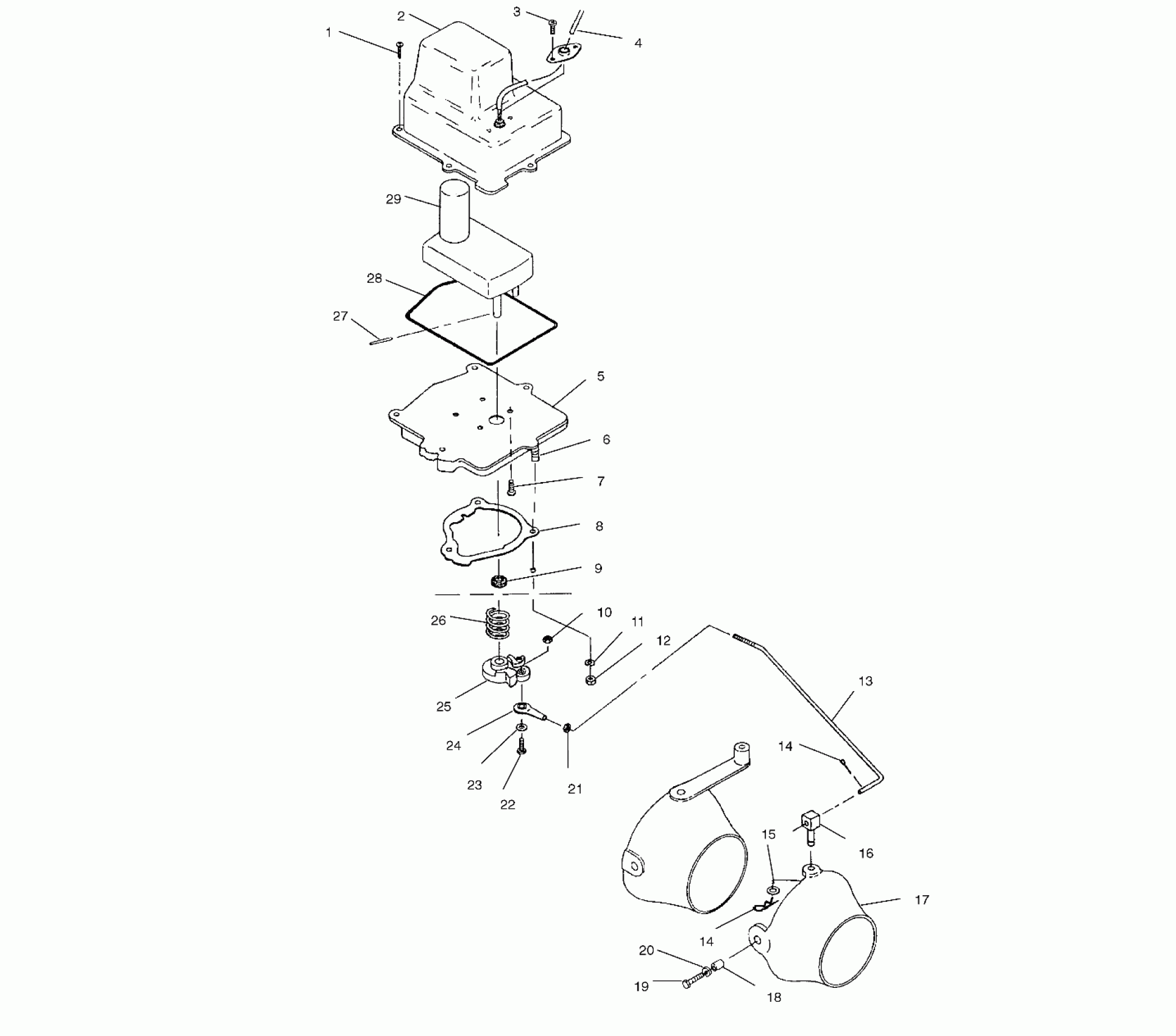

Polaris PRO 1200 - W004999D TRIM PACKAGE - W004999D (4955805580B005) Diagram

#

Description
Price

1

SCREW(10)

7512052

Unavailable

2

COVER,TRIM MTR.

5431551

$77.99

3

SCREW(10)

7511873

Unavailable

4

HARNESS,TRIM,MOTOR

2460871

Unavailable

5

BASE,MOTOR

5630798

$54.99

6

STUD,S.S.(10)

5131050

$6.99

7

SCREW(10)

7511872

$2.54

8

GASKET, MOTOR BASE

5810818

Unavailable

9

SEAL, OIL

3610042

Unavailable

10

NUT, HEX, S.S.(10)

7541931

$5.99

11

WASHER, FLAT, S.S.(10)

7555839

Unavailable

12

NUT,NYLOK,S.S.(10)

7542133

Unavailable

13

LINKAGE,THREADED

5224670

Unavailable

14

PIN, COTTER(10)

7661010

$1.19

14

PIN, COTTER(10)

7661010

$1.19

15

WASHER(10)

7555866

Unavailable

16

Swivel, Rod End (See Propulsion Pg. B4, Ref. 31)

----

Unavailable

17

NOZZLE,TRIM

5431765

Unavailable

18

Collar

5130938

Unavailable

19

BOLT, S.S.(10)

7515361

$2.19

20

WASHER,FLAT,S.S.(10)

7555874

$2.38

21

NUT (10)

1860102

Unavailable

22

BOLT, S.S.(10)

7512041

$2.54

23

WASHER, FLAT, S.S.(10)

7555837

$1.59

24

ROD END, S.S.

7060154

Unavailable

25

LEVER,TRIM,HD

5432551

$31.90

26

SPRING,TRIM,HVY.

7041469

Unavailable

27

PIN,DRIVE

7661646

Unavailable

28

O RING,MTR.COVER

5410756

Unavailable

29

GEARMOTOR ASM,6 RPM

4170018

Unavailable
