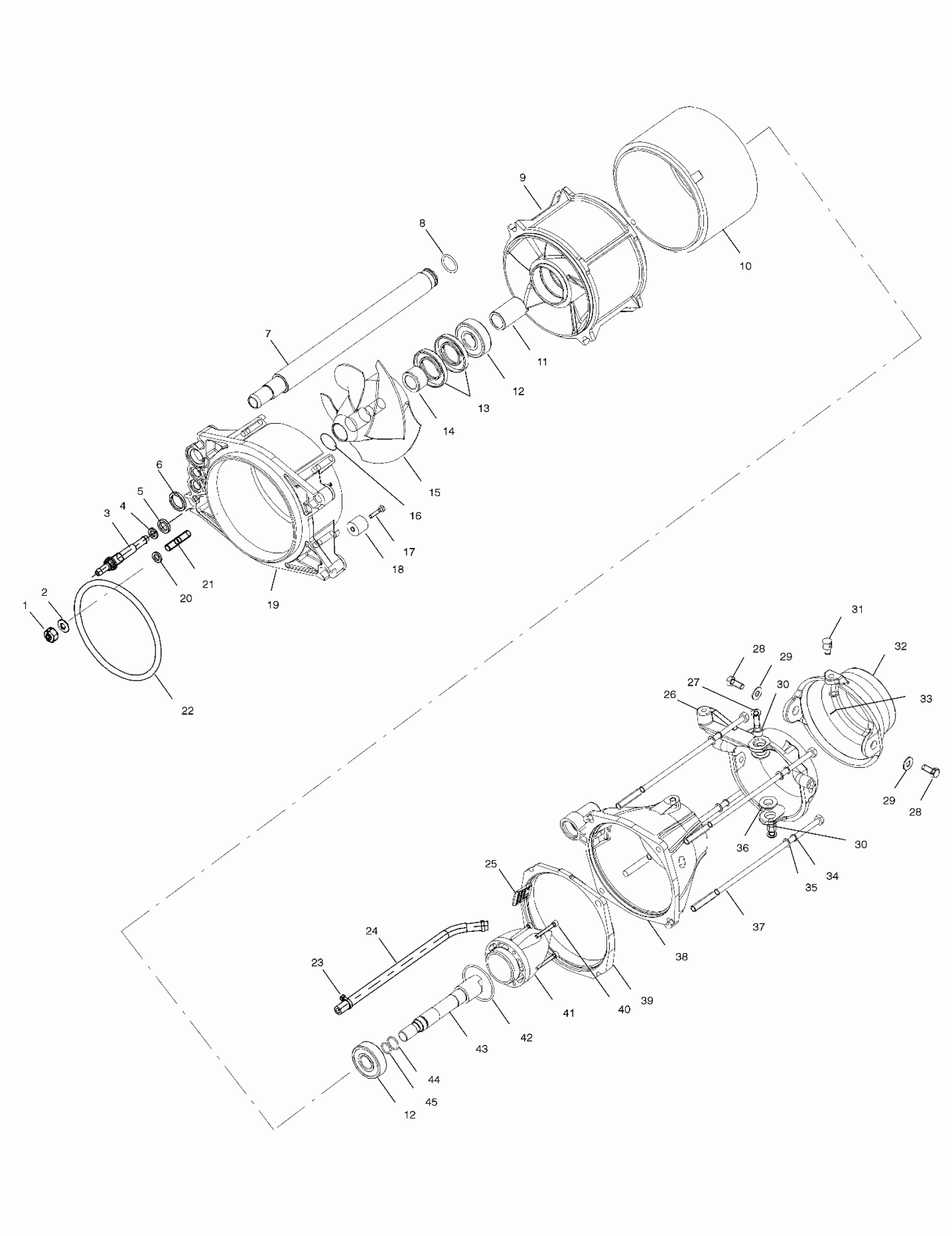

Polaris PRO 1200 - W004999D PROPULSION - W004999D (4955805580B003) Diagram

#

Description
Price

1

NUT,HEX,S.S.(10)

7542455

Unavailable

2

Washer

7555966

$2.62

3

PIPE,WATER,BILGE Substituted by 5020835

5431990

$49.59

4

WASHER(10)

7555866

Unavailable

5

SEAL,SIPHON TUBE

5411016

Unavailable

6

SEAL,WATER PIPE

5411107

Unavailable

7

PIPE,WATER,ENG.(X-PUMP)

5432269

$30.71

8

O RING,(10)

5410735

$0.79

9

STATOR,SS,ASIA TREND

5132088

$364.99

10

EXTENSION,PUMP

5131196

$204.99

11

Spacer

5010294

Unavailable

12

Bearing

3514008

Unavailable

12

Bearing

3514008

Unavailable

13

SEAL,BRG,STATOR

3610043

Unavailable

14

Spacer, Impeller

5010295

Unavailable

15

IMPELLER-7.0,.550 CLEARANCE

5132202

Unavailable

16

SEAL-IMPELLER/SHAFT

5411644

Unavailable

17

SCREW(10)

7522019

$0.95

18

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

19

HSG,PUMP,W/RING,INT STUD

5131574

Unavailable

20

WASHER,PUMPSTUD,SEAL

7555941

$7.14

21

STUD,MOUNT,PUMP,LONG INT.

5132111

Unavailable

22

O-RING,PUMP HSG/HULL

5410652

Unavailable

23

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

24

DESC NOT_AVAILABLE

8450054-33

Unavailable

25

SCREEN,ENG.INLET

5431523

Unavailable

26

NOZZLE,STRG.REVERSE

5130960

Unavailable

27

BOLT, S.S.(10)

7515366

Unavailable

28

BOLT, S.S.(10)

7515361

$2.19

28

BOLT, S.S.(10)

7515361

$2.19

29

WASHER,FLAT,S.S.(10)

7555874

$2.38

29

WASHER,FLAT,S.S.(10)

7555874

$2.38

30

Collar

5130938

Unavailable

30

Collar

5130938

Unavailable

31

SWIVEL,ROD END

5131463

Unavailable

32

Nozzle, Trim (See Trim Package Pg. B5, Ref. 17)

----

Unavailable

33

PIN, COTTER(10)

7661010

$1.19

34

WASHER, LOCK, S.S.(10)

7552610

Unavailable

35

WASHER, FLAT, S.S.,(10)

7555835

$0.69

36

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

37

Bolt

7515389

Unavailable

38

NOZZLE ASM,0X4 WEDGE

1350038

$204.99

39

WEDGE,PUMP,0X4,MOLDED

5432841

Unavailable

40

SCREW(10)

7512064

Unavailable

41

Cone, Pump

5431519

Unavailable

42

SEAL,TAILCONE

5811984

Unavailable

43

SHAFT, STUB Substituted by 5132674

5020697

$47.62

44

O-RING(10)

5410818

$0.79

45

O-RING,(10)

5410817

Unavailable
