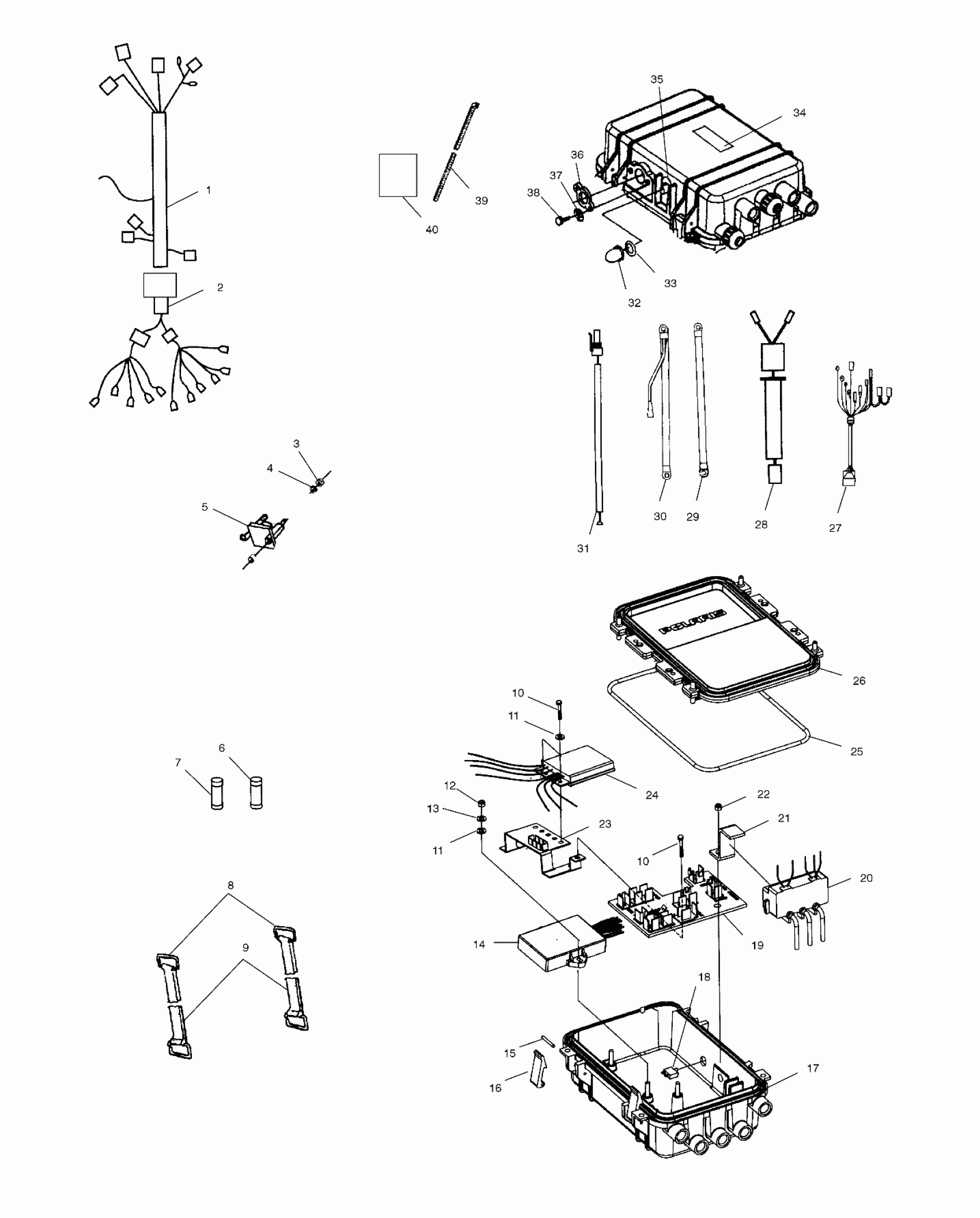

Polaris PRO 1200 - W004999D ELECTRICAL BOX - W004999D (4955805580B011) Diagram

#

Description
Price

1

HARNESS,MAIN,PRO 1200 Substituted by 2460901

2460873

Unavailable

2

HARNESS,PIGTAIL,PRO1200

2460846

Unavailable

3

NUT, 6 MM.,S.S.(10)

7546705

$4.79

4

WASHER(10)

7555882

$2.07

5

Solenoid, Starter (See Magneto Pg. C8, Ref. 14)

-------

Unavailable

6

FUSE,(10)

4060111

Unavailable

7

FUSE,3AMP,AGW [No Longer Available]

4060161

Unavailable

8

HOOK,'D',SST/SS,(10)

5224472

$2.19

9

STRAP,BATT.HOLD-DOWN

5411456

Unavailable

10

BOLT, S.S.(10)

7512042

$2.62

10

BOLT, S.S.(10)

7512042

$2.62

11

WASHER, FLAT, S.S.(10)

7555837

Unavailable

11

WASHER, FLAT, S.S.(10)

7555837

Unavailable

12

NUT, SS.(10)

7547036

Unavailable

13

WASHER, LOCK(10)

7552615

$4.99

14

Controller (See Magneto Pg. C8, Ref. 12)

-------

Unavailable

15

PIN,LATCH,ELEC.BOX

5333544

Unavailable

16

LATCH,ELEC.BOX Substituted by 2620120

5432503

Unavailable

17

ELECTRICAL BOX,IGNITION,ASM. (Incl. 15,16,25,26)

2632137

Unavailable

18

CKT.BREAKER,15A.(WATER.)

2434011

Unavailable

19

TERMINAL BOARD,ASM

2410202

$18.25

20

Coil, Ignition, Triple (See Magneto Pg. C8, Ref. 13)

-------

Unavailable

21

BRKT,COIL,3CYL

5244369

Unavailable

22

NUT,NYLOK,SS

7547061

Unavailable

23

STRAP,GROUNDING,E-BOX Substituted by 5244646

5244335

Unavailable

24

REGULATOR,RECT/CUTOFF

4010387

Unavailable

25

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

26

COVER-ELECTRICAL BOX Substituted by 2631998

5433119

Unavailable

27

HARNESS-9 WIRE STATOR 3CYL,PVL

2460875

Unavailable

28

HARNESS,TRIM,MOTOR

2460871

Unavailable

29

CABLE-SOLENOID/STARTER

4010237

Unavailable

30

CABLE,RED,BTTRY/SOLENOID

4010386

Unavailable

31

HARNESS,BATTERY/BRKR 1CNCT

2460869

Unavailable

32

BOOT,THREADED,RED

7080461

Unavailable

33

O-Ring

5411491

Unavailable

34

DECAL,WARN,HI.VOLT.

7073713

Unavailable

35

DECAL-"RESET ELEC SYSTEM"

7077691

Unavailable

36

PLATE,STATOR,1 HOLE

5432574

Unavailable

37

WASHER(10)

7555836

$3.99

38

SCREW,1/4-20X1.0(10)

7517830

$2.71

39

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

40

ANCHOR, CABLE TIE(10)

7080464

Unavailable
