Description

Price

1

Spring, Compression, Red

7042114-293

$54.27

2

Spacer

5510468

$31.99

3

Spring, Compression, Red

7042116-293

Unavailable

4

O-RING

5412290

$2.02

4

O-RING

5412290

$2.02

5

Reducer

5334195

$8.79

5

Reducer

5334195

$8.79

6

Nut, Nylok

7547066

$1.59

7

Washer, Flat [Top Mount Only]

7555984

$2.39

7

Washer, Flat [Top Mount Only]

7555984

$2.39

8

Screw

7518207

$23.99

9

Shock, Rear

7042115

Unavailable

10

RETAINER [SEE REAR SHOCK PG. C2, REF. 64]

-------

Unavailable

11

Slide, Chain (If built before 5/19/03)

5434733

Unavailable

11

Slide, Chain (If built after 5/19/03)

5435125

Unavailable

12

Spacer (If built after 10/08/02)

5334334

$21.99

13

Screw

7518196

$1.49

14

BOLT [SEE ENGINE MOUNTING PG. A12, REF. 4]

-------

Unavailable

15

WASHER [SEE ENGINE MOUNTING PG. A12, REF. 3]

-------

Unavailable

15

WASHER [SEE ENGINE MOUNTING PG. A12, REF. 3]

-------

Unavailable

16

Bushing, Thrust

5434754

Unavailable

16

Bushing, Thrust

5434754

Unavailable

17

Spacer

5133796

Unavailable

18

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

19

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

20

Roller, Chain

1590360

Unavailable

21

Screw [Lower]

7515301

Unavailable

21

Screw [Upper]

7515384

Unavailable

22

Seal

3610104

Unavailable

22

Seal

3610104

Unavailable

23

Bearing, Needle

3554202

Unavailable

24

NUT, NYLOK [SEE ENGINE MOUNTING PG. A12, REF. 19]

-------

Unavailable

25

Screw

7518180

$2.63

26

Guide, Chain (If built before 6/23/03)

5434734

$19.83

26

Guide, Chain (If built after 6/23/03)

5435250

Unavailable

27

Guard, Sprocket/Brake

5434809

Unavailable

28

SCREW

7518181

$5.59

29

Screw

7518179

$3.99

30

Nut, Nylok

7542439

$1.49

31

WSHR-.813X.406X.105-Y

7555832

$2.39

31

WSHR-.813X.406X.105-Y

7555832

$2.39

32

Asm., Swing Arm, Silver [Incl. 17,22,23]

1541736-385

Unavailable

33

SCREW

7515417

$4.79

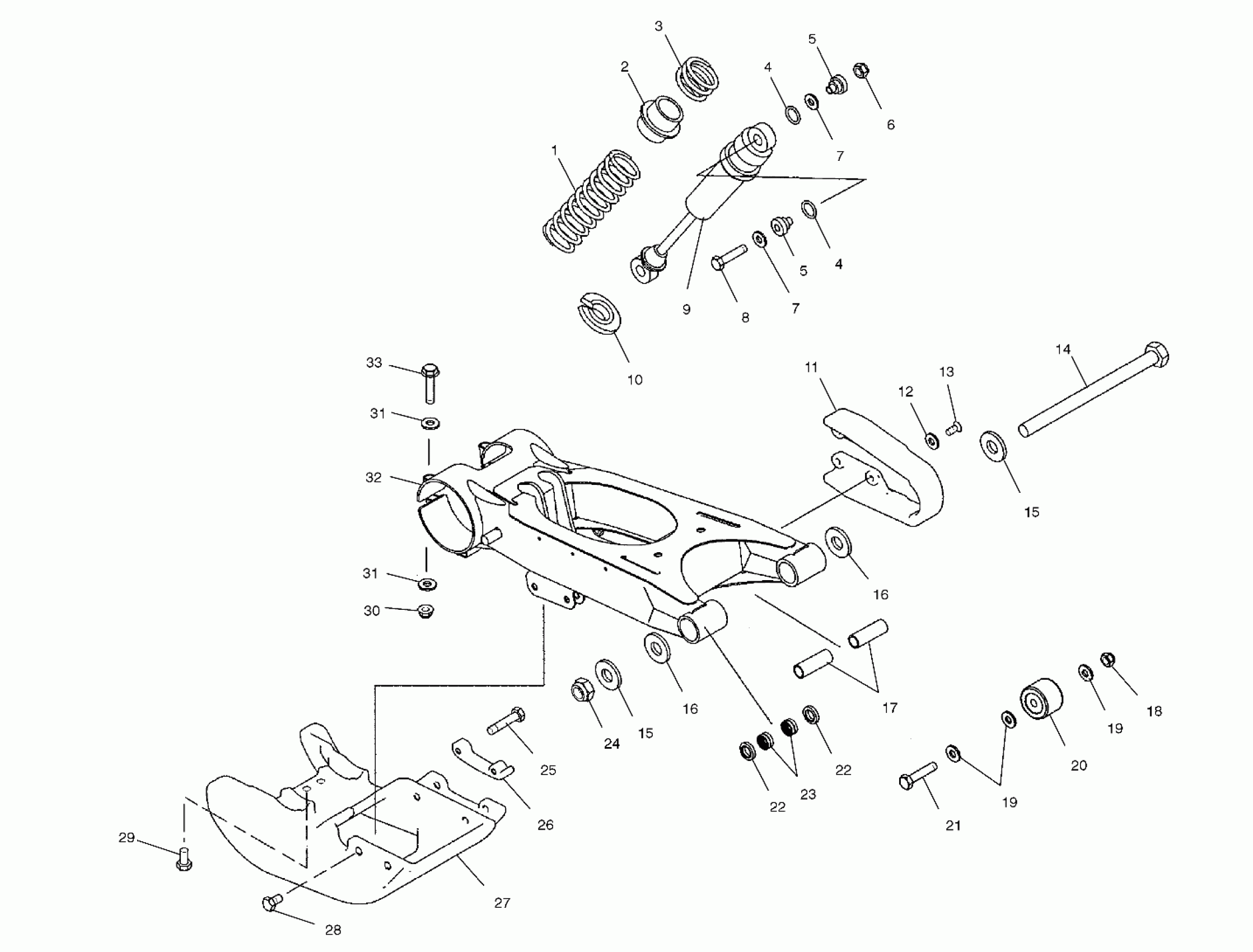

Polaris PREDATOR - A03GJ50AA/AB SWING ARM and REAR SHOCK - A03GJ50AA/AB (4975767576B06) Diagram

Spring, Compression, Red

Spacer

Spring, Compression, Red

O-RING

O-RING

Reducer

Reducer

Nut, Nylok

Washer, Flat [Top Mount Only]

Washer, Flat [Top Mount Only]

Screw

Shock, Rear

RETAINER [SEE REAR SHOCK PG. C2, REF. 64]

Slide, Chain (If built before 5/19/03)

Slide, Chain (If built after 5/19/03)

Spacer (If built after 10/08/02)

Screw

BOLT [SEE ENGINE MOUNTING PG. A12, REF. 4]

WASHER [SEE ENGINE MOUNTING PG. A12, REF. 3]

WASHER [SEE ENGINE MOUNTING PG. A12, REF. 3]

Bushing, Thrust

Bushing, Thrust

Spacer

NUT-5/16-18 NYLOK-Y

WASHER-.344X.688X.063 FL-Y

WASHER-.344X.688X.063 FL-Y

Roller, Chain

Screw [Lower]

Screw [Upper]

Seal

Seal

Bearing, Needle

NUT, NYLOK [SEE ENGINE MOUNTING PG. A12, REF. 19]

Screw

Guide, Chain (If built before 6/23/03)

Guide, Chain (If built after 6/23/03)

Guard, Sprocket/Brake

SCREW

Screw

Nut, Nylok

WSHR-.813X.406X.105-Y

WSHR-.813X.406X.105-Y

Asm., Swing Arm, Silver [Incl. 17,22,23]

SCREW
