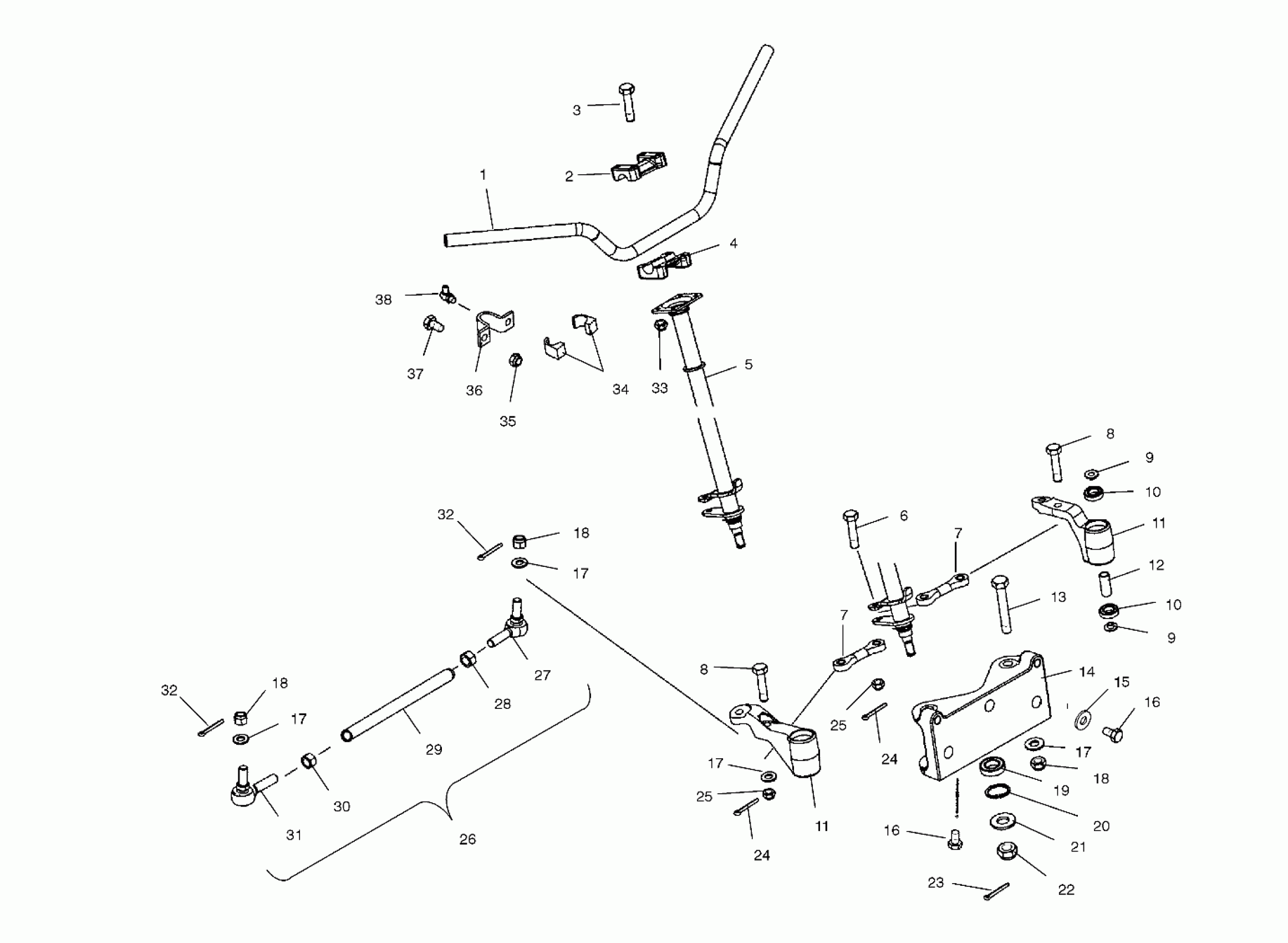

Polaris PREDATOR - A03GJ50AA/AB STEERING - A03GJ50AA/AB (4975767576B01) Diagram

#

Description
Price

1

Tube, Handlebar, Silver

5246156-385

Unavailable

2

Block, Pegged

5631146

$10.71

3

SCREW

7515189

Unavailable

4

Block

5631147

Unavailable

5

Post, Steering, Silver

1821210-385

Unavailable

6

Screw

7518218

Unavailable

7

Centerlink

1520531

$109.99

7

Centerlink

1520531

$109.99

8

Screw

7518219

$7.03

8

Screw

7518219

$7.03

9

Reducer (If built before 10/07/02)

5132106

$7.99

9

Bushing (If built after 10/07/02)

5133986

$6.99

9

Reducer (If built before 10/07/02)

5132106

$7.99

9

Bushing (If built after 10/07/02)

5133986

$6.99

10

Bearing, Ball

3514320

$15.99

10

Bearing, Ball

3514320

$15.99

11

Asm., Idler, RH [Incl. 9-12]

1821319

Unavailable

11

Asm., Idler, LH [Incl. 9-12]

1821318

Unavailable

11

Asm., Idler, RH [Incl. 9-12]

1821319

Unavailable

11

Asm., Idler, LH [Incl. 9-12]

1821318

Unavailable

12

Spacer

5334160

Unavailable

13

Screw

7515406

$7.19

14

Block, Steering Mount

5133344

Unavailable

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

Screw

7518068

$7.03

16

Screw

7518068

$7.03

17

Washer, Flat

7555806

$1.49

17

Washer, Flat

7555806

$1.49

17

Washer, Flat

7555806

$1.49

17

Washer, Flat

7555806

$1.49

18

Nut, Nylok [If built after 8/15/02]

7542439

$1.49

18

Nut, Nylok [If built before 8/15/02]

7547025

$2.63

18

Nut, Nylok [If built after 8/15/02]

7542439

$1.49

18

Nut, Nylok [If built before 8/15/02]

7547025

$2.63

18

Nut, Nylok [If built after 8/15/02]

7542439

$1.49

18

Nut, Nylok [If built before 8/15/02]

7547025

$2.63

19

Bearing, Ball, Sealed

3514395

$15.43

20

RING, RETAINING

7710531

$4.79

21

Bushing

7558707

$4.79

22

Nut, Nylon

7547065

$3.99

23

PIN, COTTER

7661402

$1.86

24

Pin, Cotter

7661011

$4.79

24

Pin, Cotter

7661011

$4.79

25

Nut, Nylok

7542439

$1.49

25

Nut, Nylok

7542439

$1.49

26

Asm., Tie Rod [Incl. 27-31]

1821405

Unavailable

27

End, Rod, LH

7061112

Unavailable

28

Nut, Jam, LH

7547254

Unavailable

29

Rod, Tie

5133933

$35.99

30

Nut, Jam

7542432

$3.99

31

End, Rod, RH

7061113

$59.99

32

Pin, Cotter

7661203

$1.49

32

Pin, Cotter

7661203

$1.49

33

Nut, Nylok

7542122

$1.49

34

Bushing, Steering, Upper

5433866

Unavailable

35

NUT-5/16-18 NYLOK-Y

7542324

$1.49

36

Bracket, Steering, Upper

5246732

$32.37

37

Bolt, Carriage

7517428

$2.39

38

FITTING, ZERK

7080510

$5.59
