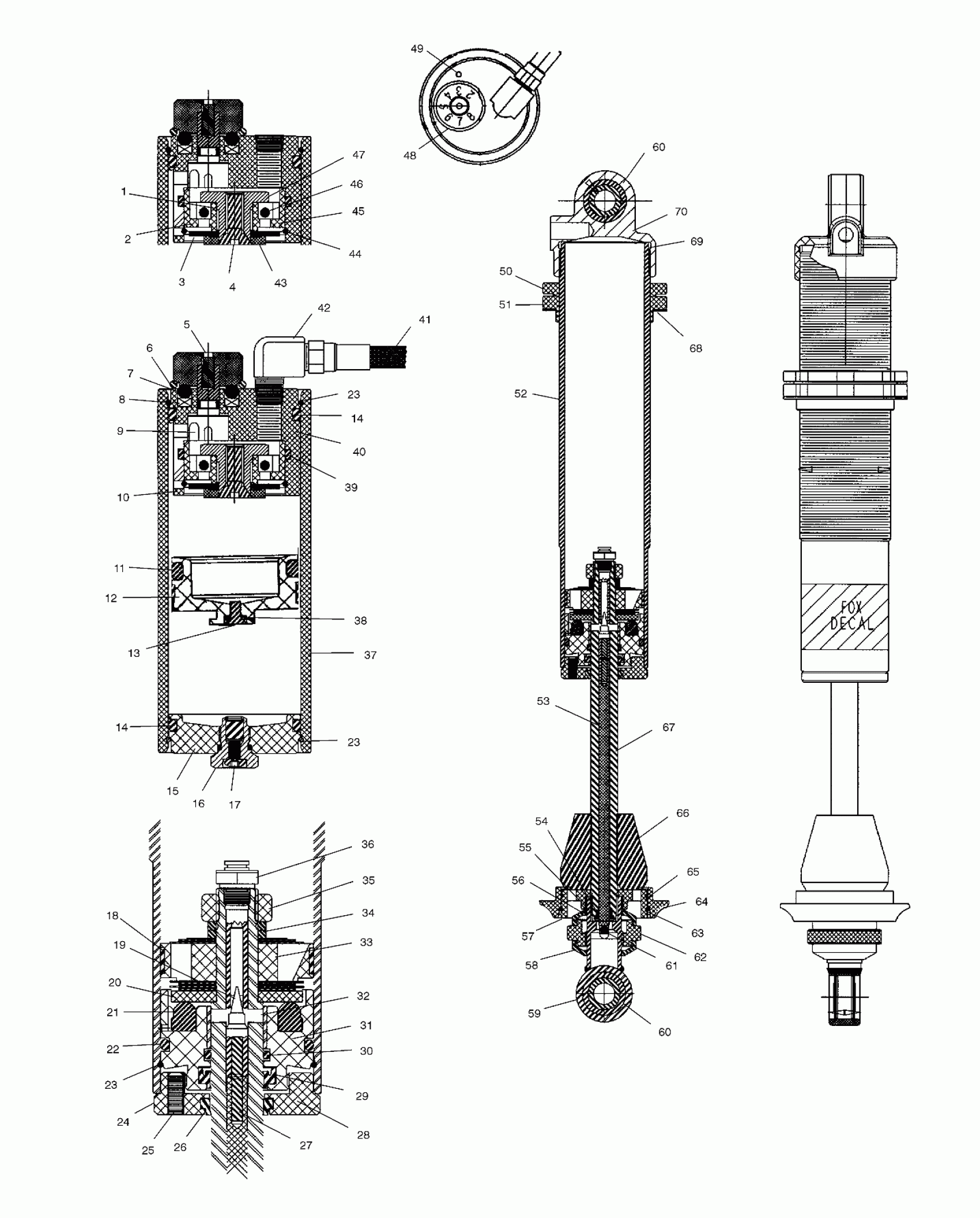

Polaris PREDATOR - A03GJ50AA/AB REAR SHOCK - A03GJ50AA/AB (4975767576C01) Diagram

#

Description
Price

-

Shock, Remote Reservoir, Rear

7042115

Unavailable

1

Valve

1500222

Unavailable

2

Plate, Damp

1500532

Unavailable

3

Valve

1500221

Unavailable

4

Screw

1500252

$1.98

5

Screw

1500223

Unavailable

6

O-Ring

1500253

$0.71

7

Ball

1500226

$1.75

8

Spring

1500225

$3.32

9

Drum, Damping

1500254

$40.48

10

Housing, CD

1500522

Unavailable

11

O-Ring

1500208

$7.98

12

Piston, Floating

1500515

$37.54

13

SCREW W/O-RING

1500161

$44.99

14

O-Ring

1500228

Unavailable

14

O-Ring

1500228

Unavailable

15

Asm., Reservoir End Cap

1500514

$35.24

16

Valve, Air

1500014

Unavailable

17

Screw

1500019

$6.35

18

Bearing

1500230

$31.75

19

Needle, Damping Adjust

1500543

Unavailable

20

Plate, Top/Out

1500470

$11.32

21

Bumper, Top/Out

1500298

$12.30

22

O-Ring

1500228

Unavailable

23

RING, RETAINING

1500236

$9.52

23

RING, RETAINING

1500236

$9.52

23

RING, RETAINING

1500236

$9.52

24

Cap, Bearing

1500526

Unavailable

25

Screw

1500528

Unavailable

26

Wiper

1500527

Unavailable

27

Pin, Spring

1500501

Unavailable

28

Bearing

1500525

Unavailable

29

U-Cup

1500513

Unavailable

30

O-Ring

1500512

$1.83

31

Bearing

1500511

$71.43

32

Bearing, Internal

1500260

$4.76

33

Piston, Damping

1500517

Unavailable

34

PLATE, BACK-UP

1500516

$8.08

35

Nut, Lock

1500472

$23.81

36

Jet

1500534

$18.41

37

Reservoir

1500518

Unavailable

38

O-Ring

1500022

Unavailable

39

O-Ring

1500227

$1.03

40

Housing, Damping

1500519

Unavailable

41

Hose

1500533

Unavailable

42

Fitting, Elbow, 90 Degree

1500107

$39.29

43

Washer

1500251

$10.56

44

Ring, Retaining

1500233

$3.75

45

Asm., Damping Adjust

1500531

Unavailable

46

Ball

1500226

$1.75

47

Bolt

1500250

Unavailable

48

Knob, Damping

1500521

$36.03

49

Pin, Dowel

1500520

$1.35

50

Ring, Preload

1500506

Unavailable

51

Ring, Preload

1500505

Unavailable

52

Body

1500529

Unavailable

53

Rod, Metering

1500530

Unavailable

54

O-Ring

1500503

Unavailable

55

Washer, Brass

1500508

$15.71

56

Ring, Snap

1500502

$0.76

57

Spring, Retainer Adapter

1500540

Unavailable

58

Cover, Dust

1500536

Unavailable

59

Adjust, RD [Incl. 57,58,61,62,63,65]

1500535

$163.49

59

Extension, Eyelet

1500541

Unavailable

60

BEARING, SPHERICAL

1500524

$43.65

60

Ring, Snap

1500523

$6.19

60

BEARING, SPHERICAL

1500524

$43.65

60

Ring, Snap

1500523

$6.19

61

Pin, Dowel

1500539

$1.40

62

Knob, 12 Click

1500542

$45.24

63

Wire, Retaining Ring

1500538

$1.83

64

Retainer, Spring

1500507

Unavailable

65

O-Ring

1500537

$7.99

66

Bumper, Bottom/Out

1500499

Unavailable

67

Shaft

1500504

$89.68

68

Washer, Thrust

1500500

$9.52

69

O-RING

1500510

$6.46

70

Asm., Body Cap

1500509

$115.08
