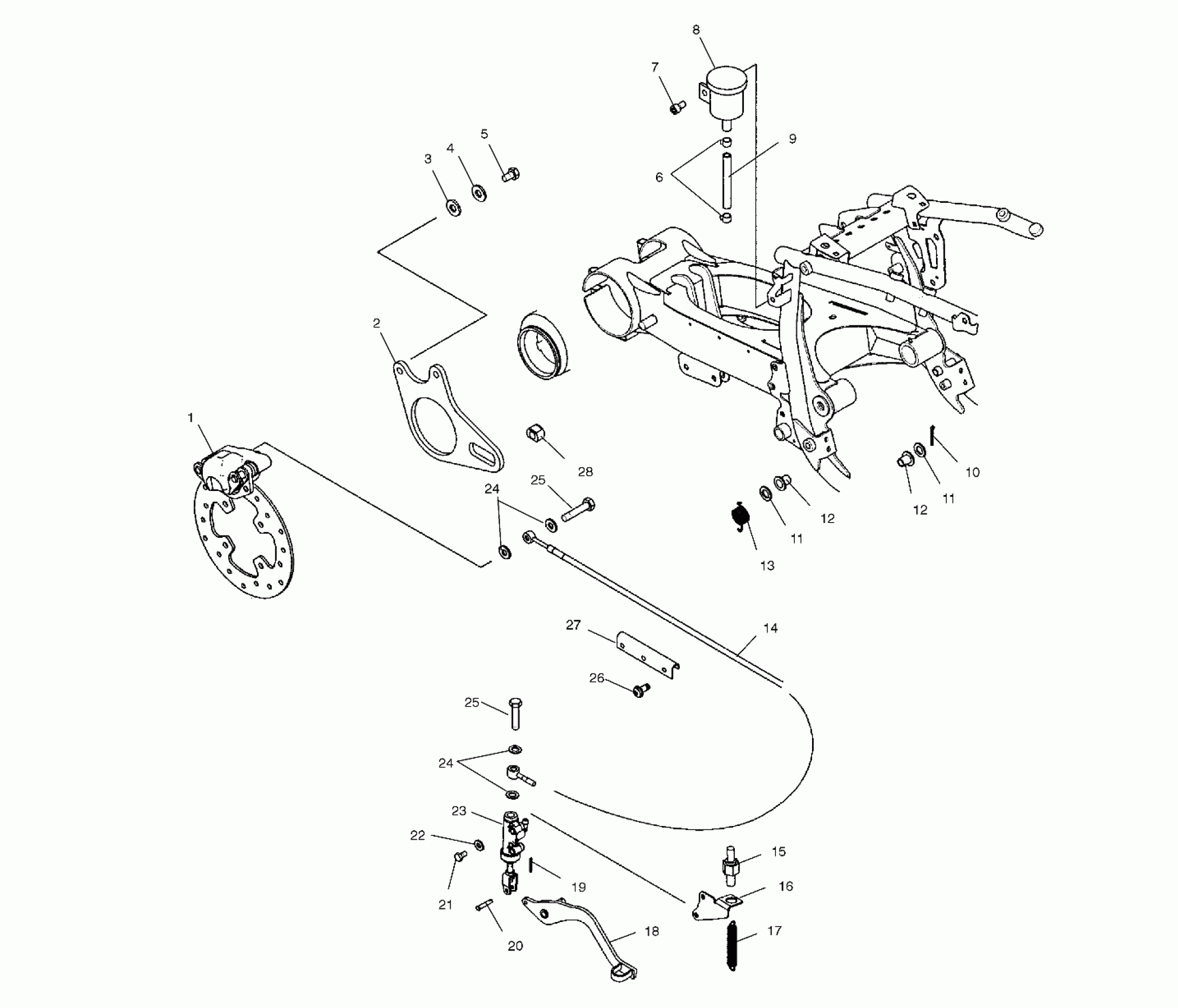

Polaris PREDATOR - A03GJ50AA/AB REAR BRAKE - A03GJ50AA/AB (4975767576B07) Diagram

#

Description
Price

1

Asm., Caliper

1910689

$288.87

2

Mount, Caliper

5245939

$44.51

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

WASHER, SPRING LOCK

7552901

$1.49

5

Screw

7515335

$3.19

6

HOSE CLAMP, RED

7080003

$1.49

7

Screw

7517560

$4.79

8

Asm., Reservoir

1930854

$35.99

9

Hose

1910438

$7.27

10

PIN, COTTER

7661401

$1.49

11

WASHER

7555919

$4.99

11

WASHER

7555919

$4.99

12

Bushing (If built after 5/01/03)

5433189

$3.99

12

BUSHING-PEDAL PIVOT (If built before 5/01/03)

5431107

$8.79

12

Bushing (If built after 5/01/03)

5433189

$3.99

12

BUSHING-PEDAL PIVOT (If built before 5/01/03)

5431107

$8.79

13

Spring, Torsion, Foot Brake

7042185

$7.19

14

Line, Brake (I built after 9/30/02)

1910728

$83.99

14

Line, Brake (I built before 9/30/02)

1910583

Unavailable

15

Switch

4010824

Unavailable

16

Bracket, Brake Switch Mount, Silver

5246844-385

Unavailable

17

Spring, Extension, Brake, Switch (If built after 10/22/02)

7042266

$6.99

17

Spring, Brake, Rear (If built before 10/22/02)

7042252

$6.99

18

Brake, Foot, Silver

1013704-385

Unavailable

19

Pin, Cotter

7661103

$4.99

20

Pin, Clevis

7661013

$5.59

21

SCR-1/4-20X1 1/2 PH/TRX-GR5-Y (If built after 4/01/03)

7518264

$3.99

21

Screw (If built before 4/01/03)

7512126

$4.79

22

Washer (If built before 4/01/03)

7552801

$1.59

23

Cylinder, Master

1910627

$171.99

24

Seal

5410988

$4.84

24

Seal

5410988

$4.84

25

BOLT, BANJO

1910499

$5.59

25

BOLT, BANJO

1910499

$5.59

26

Screw

7518196

$1.49

27

Retainer, Brake Line, Rear (If built before 9/30/02)

5434881

Unavailable

27

Retainer, Brake Line, Rear (If built after 9/30/02)

5435067

$3.83

28

Bushing, Caliper Mount

5131759

Unavailable
