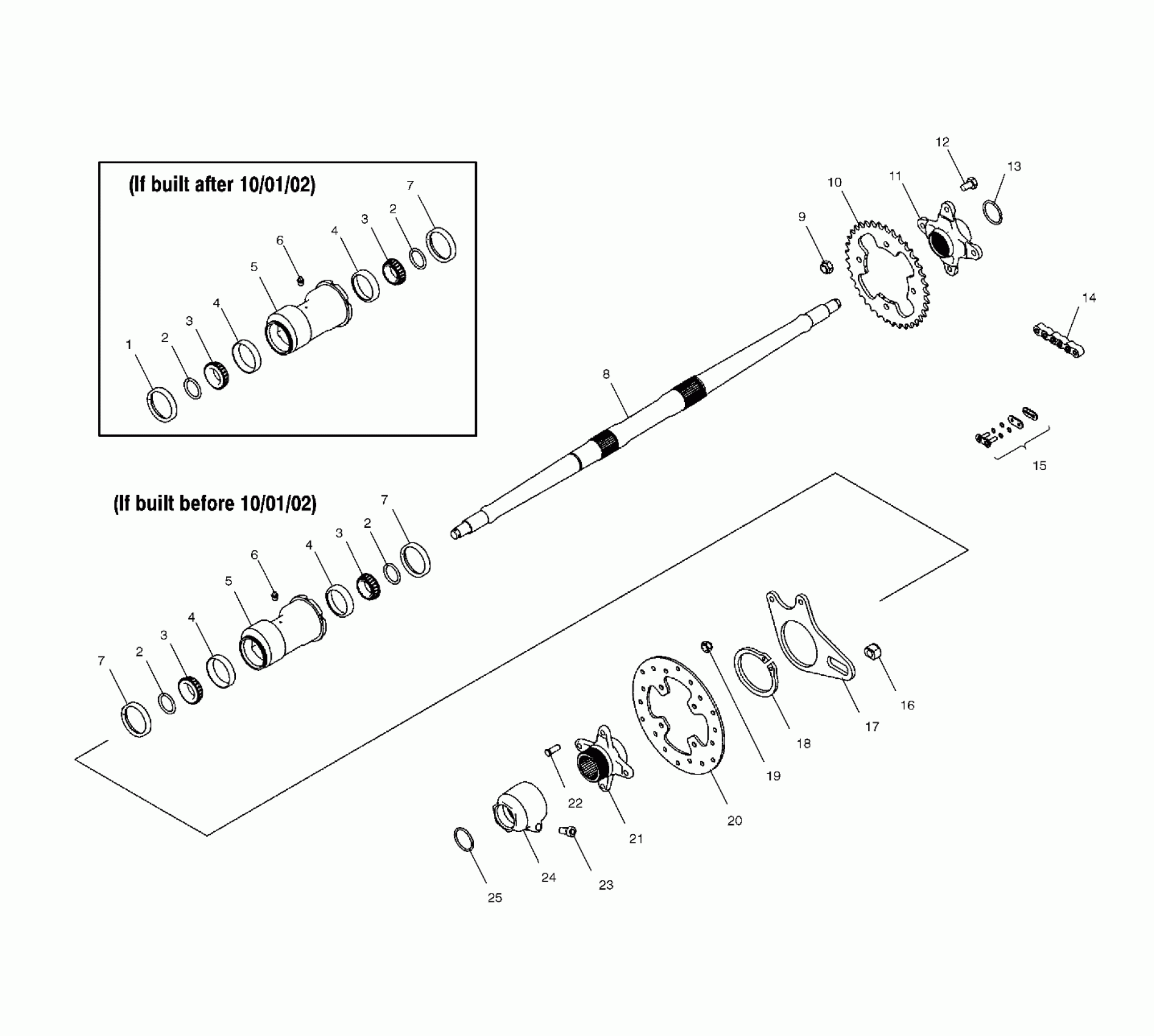

Polaris PREDATOR - A03GJ50AA/AB REAR AXLE and HOUSING - A03GJ50AA/AB (4975767576B05) Diagram

#

Description
Price

1

Seal (If built after 10/01/02)

3610105

$32.37

2

O-Ring

5412220

$2.02

2

O-Ring

5412220

$2.02

2

O-Ring

5412220

$2.02

2

O-Ring

5412220

$2.02

3

Bearing, Cone, Taper

3514393

$27.99

3

Bearing, Cone, Taper

3514393

$27.99

3

Bearing, Cone, Taper

3514393

$27.99

3

Bearing, Cone, Taper

3514393

$27.99

4

Bearing, Cup, Taper

3514394

$19.99

4

Bearing, Cup, Taper

3514394

$19.99

4

Bearing, Cup, Taper

3514394

$19.99

4

Bearing, Cup, Taper

3514394

$19.99

5

Housing, Axle, Rear

5133248

Unavailable

5

Housing, Axle, Rear

5133248

Unavailable

6

Fitting, Lubrication

7080306

$3.19

6

Fitting, Lubrication

7080306

$3.19

7

Seal (Qty. 1 used after 10/01/02)

3610089

$32.37

7

Seal (Qty. 1 used after 10/01/02)

3610089

$32.37

7

Seal (Qty. 1 used after 10/01/02)

3610089

$32.37

8

Axle, Rear

5133722

Unavailable

9

Nut, Nylok

7542439

$1.49

10

Sprocket

3221142

Unavailable

11

Hub, Sprocket

5133338

Unavailable

12

Bolt

7512405

$3.99

13

Ring, Retaining

7670147

$7.99

14

Chain, 94P

3221151-094

Unavailable

15

Link, Connector

3225028

Unavailable

16

BUSHING, CALIPER [SEE REAR BRAKE PG. B7, REF. 28]

-------

Unavailable

17

BRACKET, CALIPER MOUNT [SEE REAR BRAKE PG. B7, REF. 2]

-------

Unavailable

18

Ring, External

7710516

Unavailable

19

Nut, Nylok

7547217

$3.99

20

Disc, Brake

5246155

Unavailable

21

Hub, Rear Disc

5133340

Unavailable

22

SCREW

7512365

$1.49

23

Screw

7515102

$4.79

24

Nut, Axle

5133428

Unavailable

25

Ring, Retaining

7710405

$4.79
