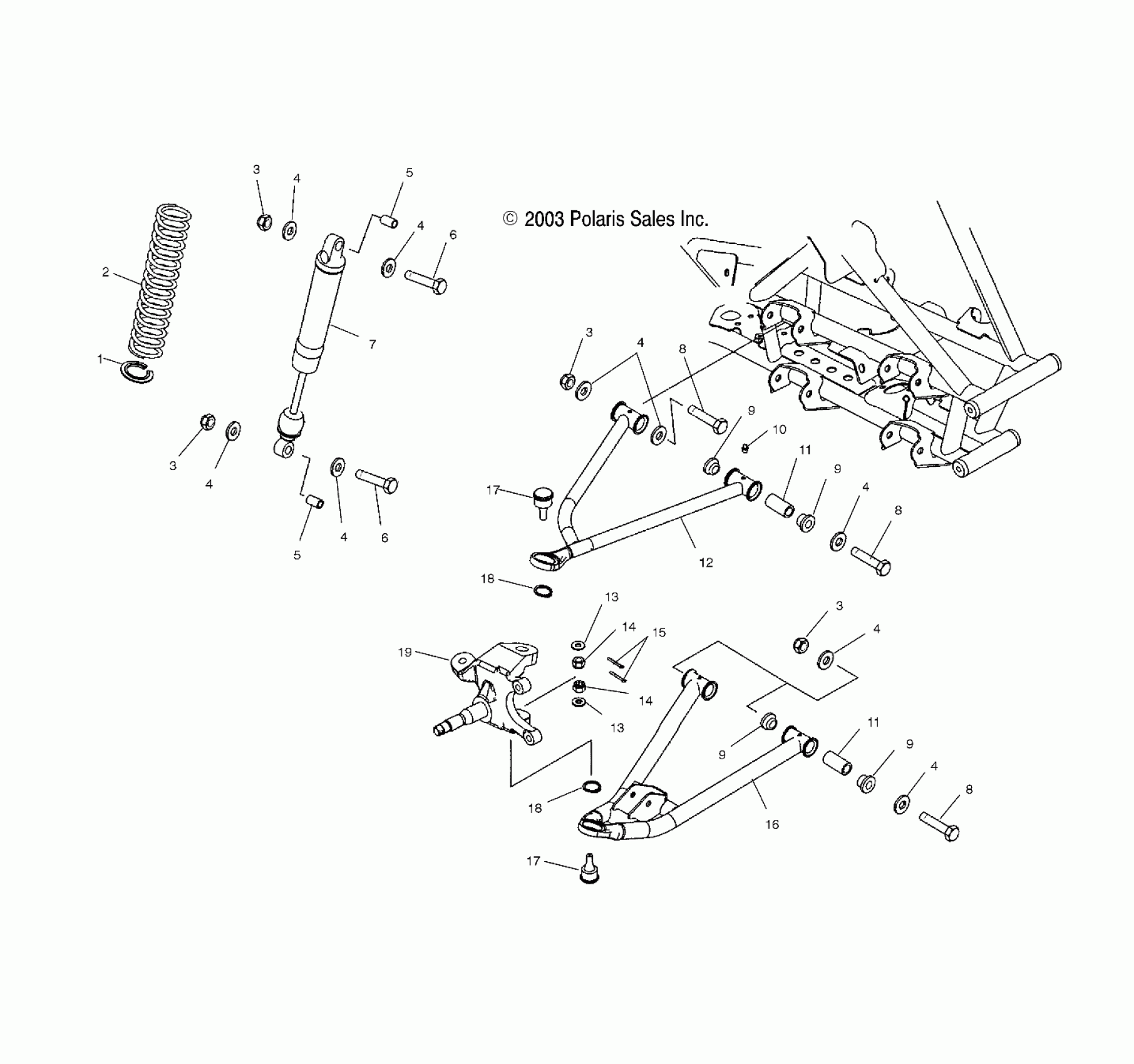

Polaris PREDATOR - A03GJ50AA/AB FRONT SUSPENSION - A03GJ50AA/AB (4986168616B04) Diagram

#

Description
Price

1

Retainer, Spring, Slotted

5630580

Unavailable

2

Spring, Compression, Red

7042132-293

Unavailable

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

5

Sleeve

5334149

Unavailable

5

Sleeve

5334149

Unavailable

6

Screw

7515415

$1.49

6

Screw

7515415

$1.49

7

Shock, IFP

7042117

Unavailable

8

Screw

7515406

$7.19

8

Screw

7515406

$7.19

8

Screw

7515406

$7.19

9

Bushing, A-Arm

5434575

$10.39

9

Bushing, A-Arm

5434575

$10.39

9

Bushing, A-Arm

5434575

$10.39

9

Bushing, A-Arm

5434575

$10.39

10

Fitting, Lubrication

7080433

$1.49

11

Shaft, A-Arm

5133406

$12.99

11

Shaft, A-Arm

5133406

$12.99

12

A-Arm, Upper, RH, Silver

1014243-385

Unavailable

12

A-Arm, Upper, LH, Silver

1014242-385

$369.99

13

Washer

7555928

Unavailable

13

Washer

7555928

Unavailable

14

Nut, Castle

7542523

Unavailable

14

Nut, Castle

7542523

Unavailable

15

Pin, Cotter

7661205

$1.49

16

A-Arm, Lower, LH, Silver

1013799-385

$304.99

16

A-Arm, Lower, RH, Silver

1013801-385

Unavailable

17

Joint, Ball

7081190

$48.40

17

Joint, Ball

7081190

$48.40

18

RING, RETAINER

7710533

$2.39

18

RING, RETAINER

7710533

$2.39

19

Asm., Knuckle, Steering, LH

1520640

Unavailable

19

Asm., Knuckle, Steering, RH

1520641

Unavailable
