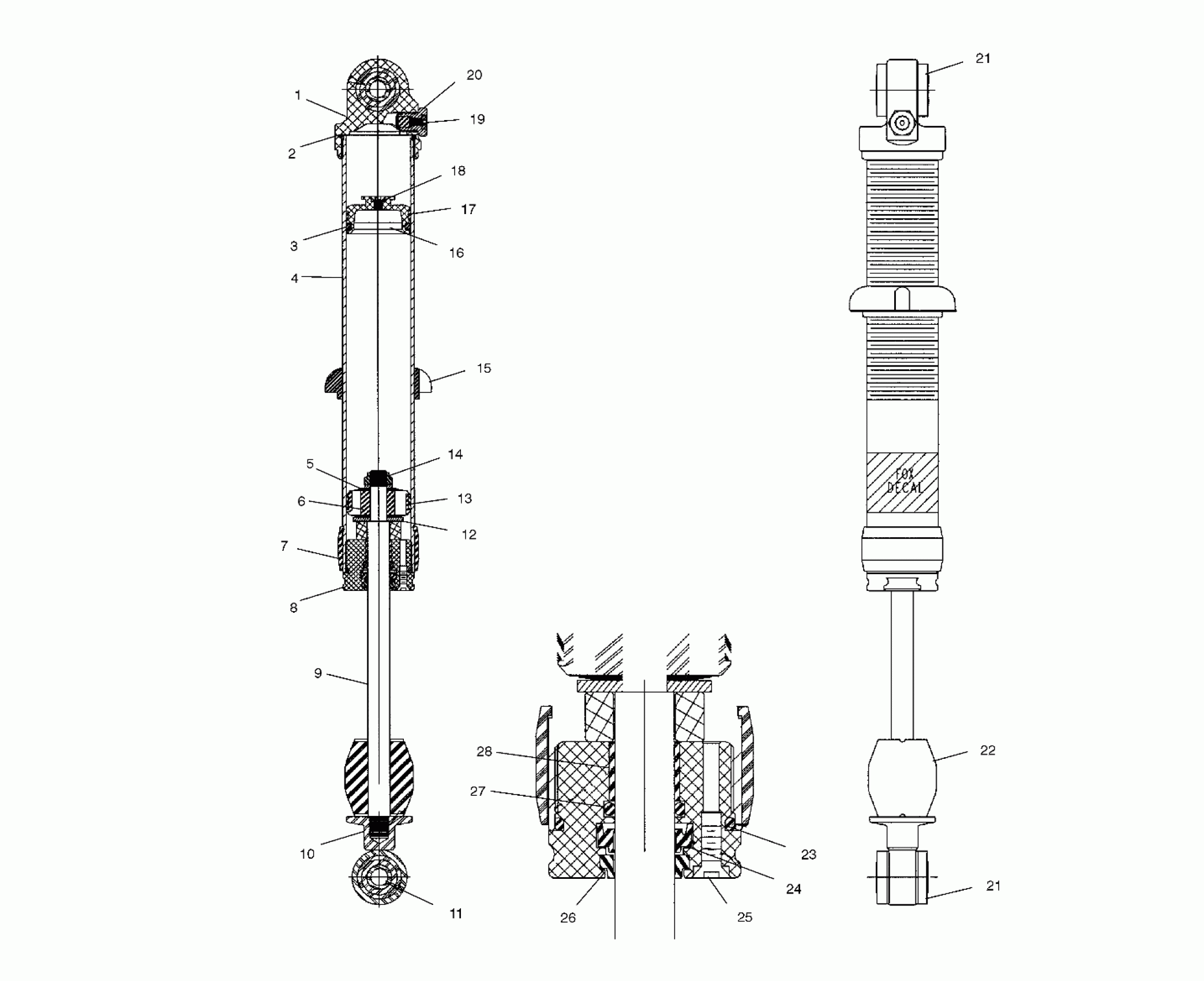

Polaris PREDATOR - A03GJ50AA/AB FRONT SHOCK - A03GJ50AA/AB (4975767576B14) Diagram

#

Description
Price

-

Shock, IFP, Front

7042117

Unavailable

1

Cap, Body

1500288

Unavailable

2

O-Ring

1500108

$10.99

3

O-Ring

1500180

Unavailable

4

Body

1500498

$53.17

5

Plate, Back-Up

1500015

$6.76

6

Piston

1500495

$23.81

7

Guide, Spring

1500492

$13.10

8

Bearing

1500285

Unavailable

9

Shaft

1500493

Unavailable

10

ASM., EYELET

1500013

$52.24

11

SLEEVE

1500497

$36.41

12

Plate, Top-Out

1500017

Unavailable

13

Bearing, External

1500002

$31.75

14

Nut, Lock

1500016

$12.70

15

Ring, Preload, Nylon

1500494

Unavailable

16

Piston, Floating

1500011

$59.52

16

Asm., Floating Piston [Incl. 3]

1500275

$92.99

17

Bearing, External

1500006

$19.84

18

O-Ring

1500022

Unavailable

18

SCREW W/O-RING

1500161

$44.99

19

Screw

1500019

$6.35

20

Valve, Air

1500014

Unavailable

21

BUSHING

1500103

$8.89

21

BUSHING

1500103

$8.89

22

Bumper, Bottom/Out

1500491

Unavailable

23

O-Ring

1500020

$10.63

24

U-Cup

1500266

$28.32

25

O-Ring

1500022

Unavailable

25

Screw

1500287

Unavailable

26

Wiper

1500268

$15.48

27

O-Ring

1500496

$6.99

28

Bearing, Internal

1500488

Unavailable
