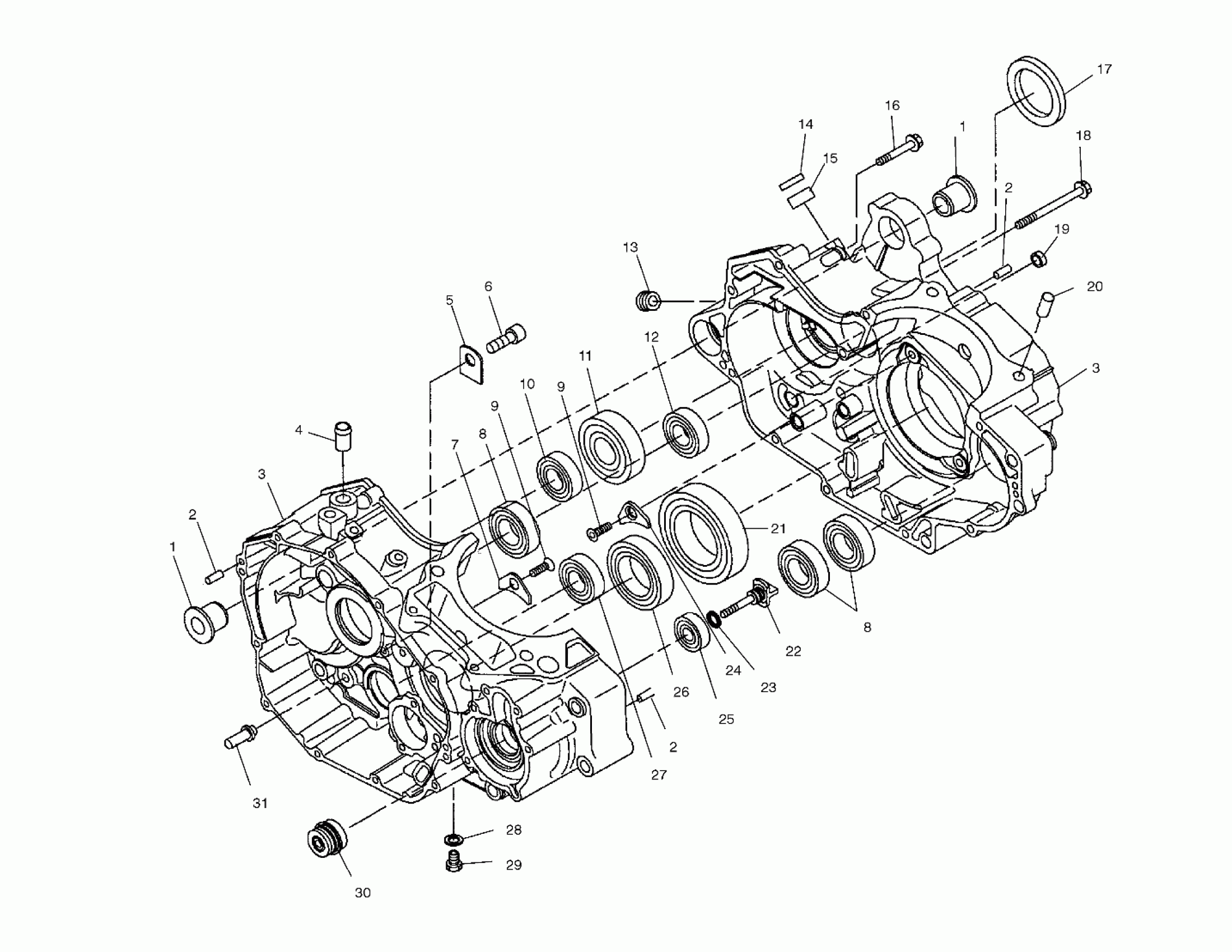

Polaris PREDATOR - A03GJ50AA/AB CRANKCASE - A03GJ50AA/AB (4975767576C03) Diagram

#

Description
Price

1

Collar

3087930

$27.62

1

Collar

3087930

$27.62

2

Pin, Dowel

3080103

$7.14

2

Pin, Dowel

3080103

$7.14

2

Pin, Dowel

3080103

$7.14

3

Asm., Crankcase [Incl. all less 16,18,28,29]

3087923

Unavailable

3

Asm., Crankcase [Incl. all less 16,18,28,29]

3087923

Unavailable

4

Breather, Pipe, Air

3085525

Unavailable

5

Plate, Stopper

3088138

$3.35

6

Bolt

3088050

$4.94

7

Plate

3087939

Unavailable

8

Bearing, Ball

3088137

Unavailable

8

Bearing, Ball

3088137

Unavailable

9

Screw

3087932

Unavailable

9

Screw

3087932

Unavailable

10

Bearing, Ball

3087935

Unavailable

11

Bearing, Ball

3087929

Unavailable

12

Bearing, Ball

3087928

Unavailable

13

PLUG, BLIND

3084862

Unavailable

14

Seal, Oil

3087926

Unavailable

15

Bearing, Release

3087925

$9.52

16

Bolt, Flange

3086412

$3.85

17

Seal, Oil

3086510

$40.46

18

BOLT, FLANGE

3087940

$3.99

19

Seal, Oil

3087927

Unavailable

20

KNOCK, PIPE

3087266

Unavailable

21

Bearing, Ball

3087924

Unavailable

22

Shaft, Water Pump [Incl. 23,25]

3087936

Unavailable

23

O-Ring

3087938

Unavailable

24

Plate

3087931

$10.51

25

Bearing, Ball

3087937

Unavailable

26

Bearing, Roller

3087933

Unavailable

27

Bearing, Ball

3087934

Unavailable

28

GASKET

3082956

$4.84

29

PLUG

3083453

Unavailable

30

SEAL, MECHANICAL

3084837

$68.79

31

Pin, Stopper

3086195

$11.43
