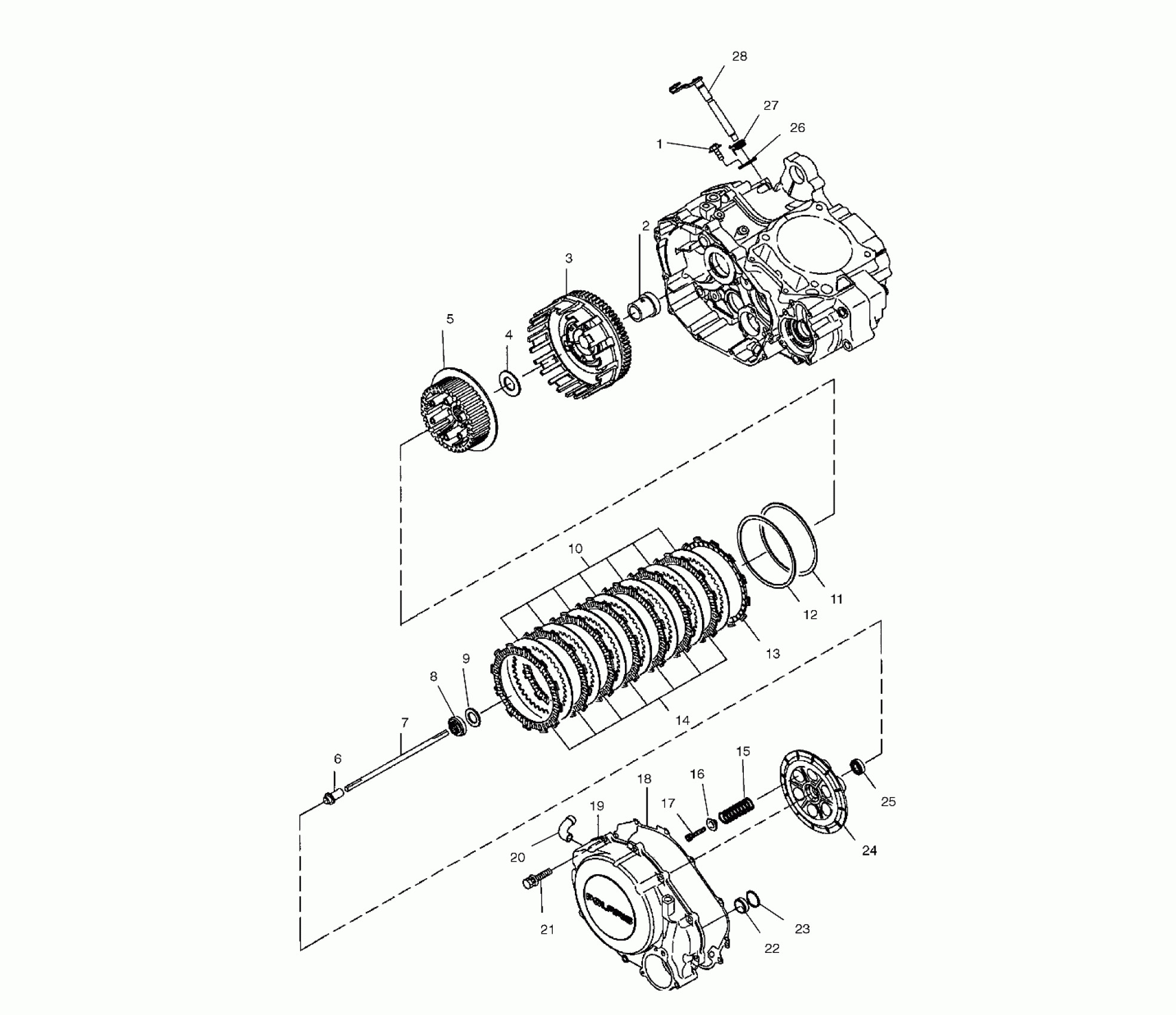

Polaris PREDATOR - A03GJ50AA/AB CLUTCH - A03GJ50AA/AB (4975767576D05) Diagram

#

Description
Price

-

Asm., Clutch [Incl. 3-5,10-17,24,25]

3088075

Unavailable

1

BOLT, FLANGE

3084877

Unavailable

2

Collar, Distance

3088077

$41.99

3

Clutch, Outer

3088174

Unavailable

4

Washer, Thrust

3088186

Unavailable

5

Center, Clutch

3088180

Unavailable

6

Pusher

3088081

$37.91

7

Rod, Push

3088080

Unavailable

8

Nut, Lock

3086285

Unavailable

9

Washer, Lock

3086286

Unavailable

10

Plate, Clutch

3088184

$43.99

11

Spring, Judder, Seat

3088181

$27.19

12

Spring, Judder

3088182

$32.37

13

Disk B, Clutch Friction

3088185

Unavailable

14

Disk A, Clutch Friction

3088183

$40.46

15

Spring

3088177

$11.32

16

Washer, Clutch Spring

3088176

$2.99

17

Bolt

3088175

Unavailable

18

Gasket

3088074

Unavailable

19

Cover, Clutch [Incl. 20,22,23]

3088071

$409.99

20

Pipe

3085850

$51.99

21

BOLT, FLANGE

3084874

Unavailable

22

Seal, Oil

3088072

$27.99

23

Ring, Snap, Inner

3088073

Unavailable

24

Disk, Clutch Pressure

3088178

Unavailable

25

Bearing, Ball

3088179

$15.99

26

Plate

3088082

$8.23

27

Spring

3088079

Unavailable

28

Shaft, Release

3088078

$73.81
