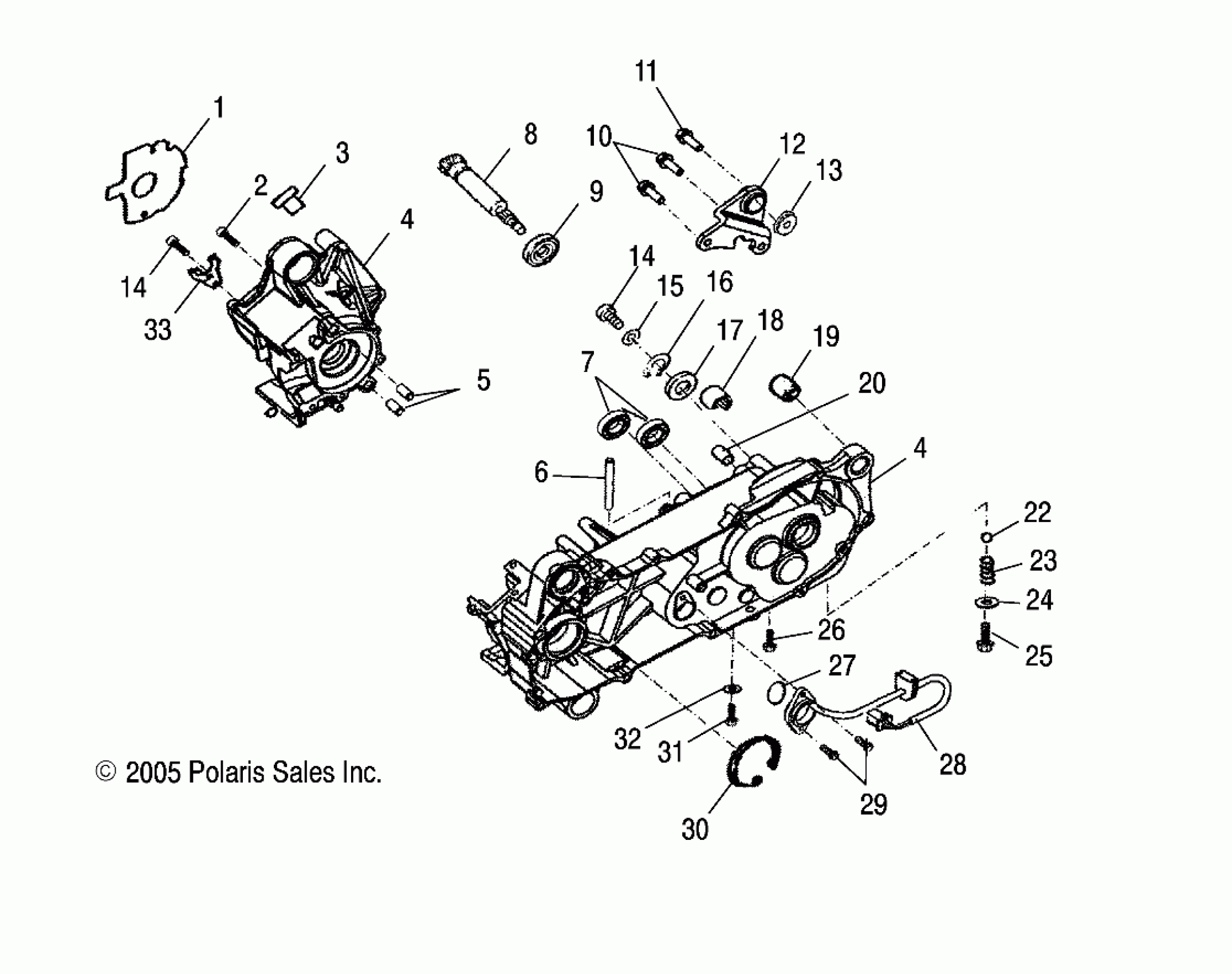

Polaris PREDATOR 90 - A06KA09CA CRANKCASE - A06KA09CA/CB/CC/CD (4999202399920239A10) Diagram

#

Description
Price

1

Gasket, Generator

0450159

Unavailable

2

Bolt

0450138

$4.79

3

Plug, Rubber

0450170

$5.65

4

Asm., Crankcase

0454187

$247.99

4

Asm., Crankcase

0454187

$247.99

5

Pin, Dowel

0450137

$2.23

6

Breather, Crankcase, Upper

0452127

$6.46

7

Bearing, Needle

0450254

$23.99

8

Shaft, Primary Drive

0452130

$63.49

9

BEARING

0450199

$31.99

10

BOLT, HEX

0450298

$2.39

11

Bolt, Hex

0450684

$4.79

12

Mount, Engine, Rear

0452131

$11.90

13

Bushing, Rubber

0450132

Unavailable

14

Bolt, Hex

0450158

$5.59

14

Bolt, Hex

0450158

$5.59

15

WASHER

0450041

$4.79

16

Circlip, External

0450198

$4.79

17

Seal, Oil

0450200

$11.99

18

Bearing, Needle

0452139

$23.79

19

BUSHING, RUBBER

0451139

$7.19

20

Breather, Crankcase, Lower

0452125

$10.39

22

BALL, STEEL

0452134

$4.79

23

SPRING, DETENT

0452135

Unavailable

24

WASHER, FLAT

0452136

$3.99

25

Bolt, Hex

0452137

$7.19

26

Bolt, Hex

0452126

$4.79

27

O-RING

0452129

$1.59

28

SENSOR, GEAR POSITION

0452128

Unavailable

29

Bolt, Hex, Flange

0452138

$3.19

30

Circlip, Internal

0450162

$5.59

31

Bolt, Hex

0452132

$4.79

32

WASHER, FLAT

0452133

$3.99

33

Bracket, Oil Seal

0450157

Unavailable
