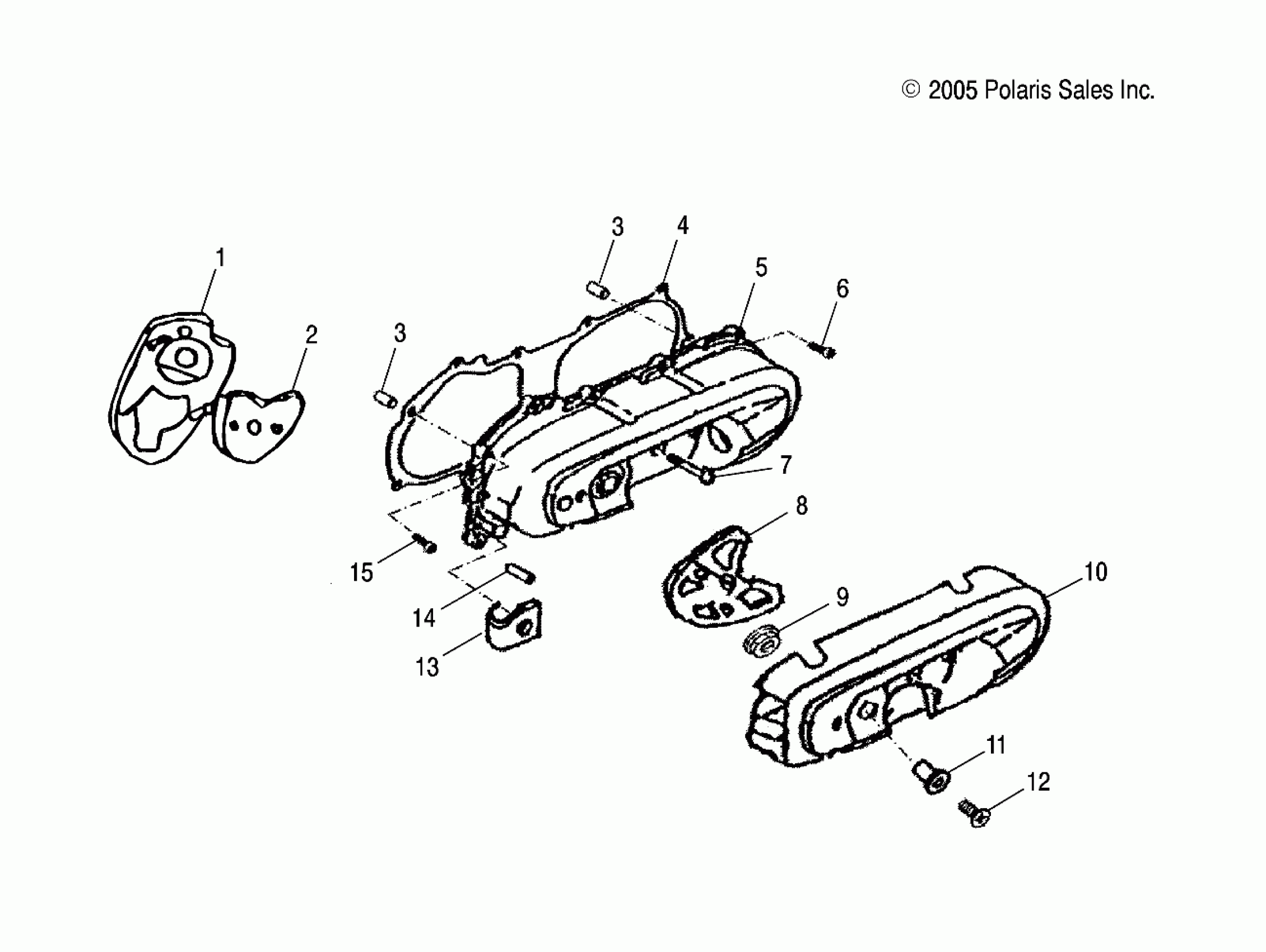

Polaris PREDATOR 90 - A06KA09CA CLUTCH COVER - A06KA09CA/CB/CC/CD (4999202399920239A11) Diagram

#

Description
Price

1

Protector A

0450166

Unavailable

2

Filter

0450164

$9.49

3

PIN, DOWEL

0450142

$3.97

3

PIN, DOWEL

0450142

$3.97

4

Gasket, Crankcase

0450141

$32.37

5

Cover, Clutch

0451671

Unavailable

6

Bolt, Hex

0450148

$3.97

7

Bolt, Hex

0450151

Unavailable

8

Protector B

0450152

Unavailable

9

Nut, Hex, Flange

0450150

$1.19

10

Guard, Coutch Cover

0451672

Unavailable

11

Grommet

0450168

Unavailable

12

Bolt

0450167

$4.76

13

BRACKET, CARBURETOR TUBE

0450160

$4.84

14

Shaft, Pin

0450147

Unavailable

15

Bolt

0450138

Unavailable
