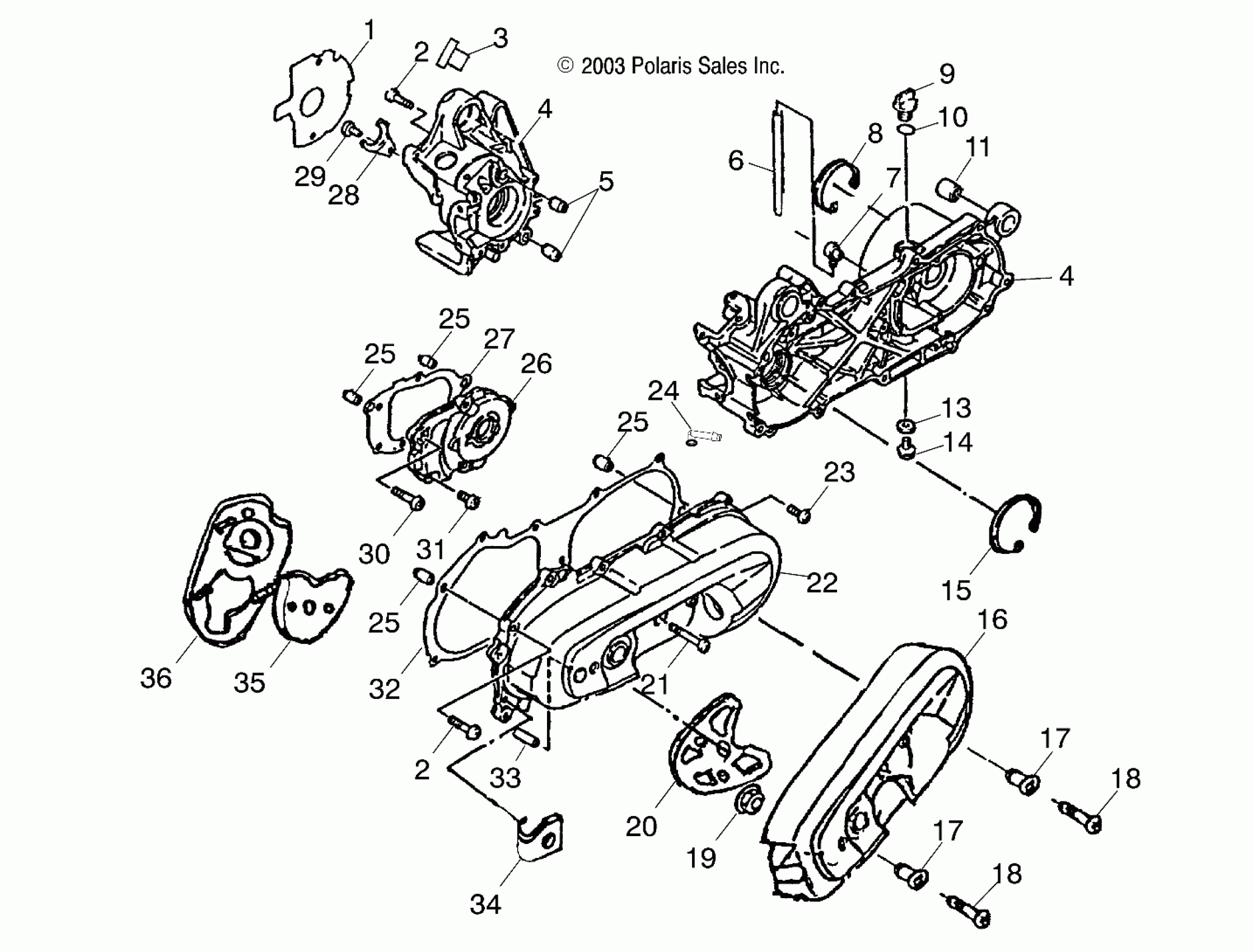

Polaris PREDATOR 90 - A04KA09CA CRANKCASE - A04KA09CA/CB (4987808780A10) Diagram

#

Description
Price

1

Gasket, Generator

0450159

$8.08

2

Bolt, Socket

0450138

Unavailable

2

Bolt, Socket

0450138

Unavailable

3

Plug, Rubber

0450170

$5.65

4

Asm., Crankcase

0454171

Unavailable

4

Asm., Crankcase

0454171

Unavailable

5

Pin, Dowel

0450137

$2.22

6

Hose, Breather

0451670

Unavailable

7

Head, Breather Hose

0450133

Unavailable

8

Circlip, Internal

0450161

$5.56

9

Plug, Oil

0450153

Unavailable

10

O-Ring

0450154

$1.60

11

BUSHING, RUBBER

0451139

$7.14

13

Washer

0450156

Unavailable

14

BOLT, HEX

0450298

$2.38

15

Circlip, Internal

0450162

$5.56

16

Gaurd, Clutch Cover

0451672

Unavailable

17

Grommet

0450168

Unavailable

17

Grommet

0450168

Unavailable

18

Bolt, Flat Head, Phillips

0450167

$4.76

18

Bolt, Flat Head, Phillips

0450167

$4.76

19

Nut, Flange, Hex

0450150

$1.19

20

Protector B

0450152

Unavailable

21

Bolt, Socket, Hex

0450151

Unavailable

22

Cover, Clutch

0451671

Unavailable

23

Bolt, Socket, Hex

0450148

$3.97

24

Tube, Breather

0450674

$11.32

25

PIN, DOWEL

0450142

$3.97

25

PIN, DOWEL

0450142

$3.97

25

PIN, DOWEL

0450142

$3.97

25

PIN, DOWEL

0450142

$3.97

26

Cover, Mission

0450139

Unavailable

27

Gasket, Cover, Mission

0450140

$4.03

28

Bracket, Oil Seal

0450157

Unavailable

29

Bolt, Socket, Hex

0450158

$5.65

30

Bolt, Pan Head

0450143

$0.82

31

Bolt, Pan Head

0450039

$3.97

32

Gasket, Crankcase Cover, LH

0450141

$32.37

33

Shaft, Pin

0450147

Unavailable

34

BRACKET, CARBURETOR TUBE

0450160

$4.84

35

Filter

0450164

$9.49

36

Protector A

0450166

Unavailable
