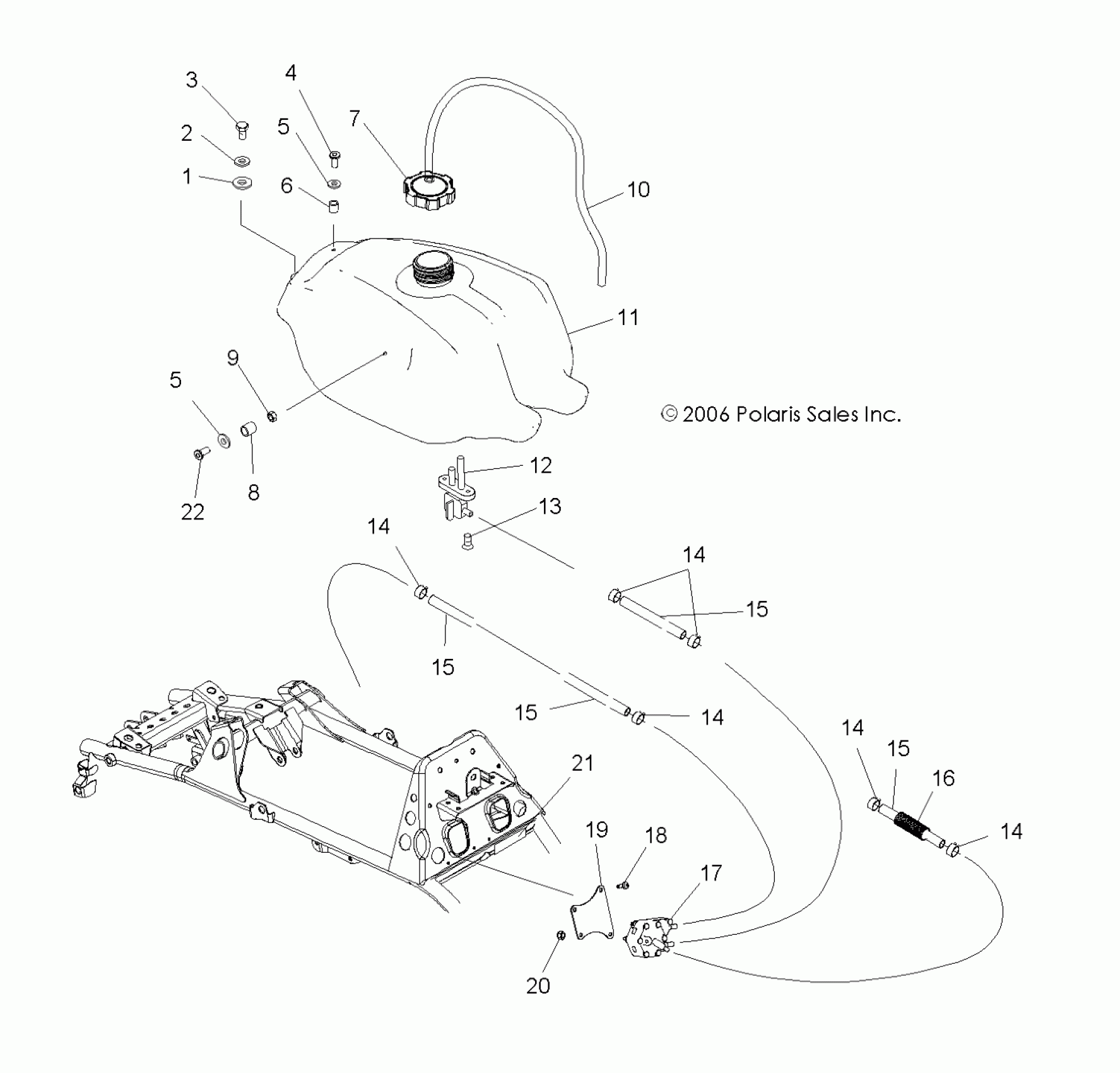

Polaris PREDATOR 500/LE - A07GJ50AA/AB/AC FUEL TANK - A07GJ50AA/AB/AC (49ATVFUELPRED500) Diagram

#

Description
Price

1

Washer, Flat

7555734

$1.49

2

Washer, Split

7552606

$4.79

3

Bolt

7515321

$1.49

4

Screw

7515166

$3.19

5

Washer, Flat

7555859

$1.49

5

Washer, Flat

7555859

$1.49

6

Spacer

5334283

$3.99

7

Cap, Fuel Tank [Incl. 10]

5436822

$49.99

8

Spacer

5435065

Unavailable

9

NUT

7542105

$3.99

10

LINE, VENT

-------

Unavailable

11

Tank, Fuel

5434452

Unavailable

11

Asm., Fuel Tank [Incl. 12]

2520271

Unavailable

12

Valve, Fuel, On/Off/Reserve

7052331

$35.99

13

Screw

7515136

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

15

HOSE, FUEL

8450117-250

Unavailable

15

HOSE, FUEL

8450117-250

Unavailable

15

HOSE, FUEL

8450117-250

Unavailable

15

HOSE, FUEL

8450117-250

Unavailable

16

TUBING, CONVOLUTED

8360052-305

$28.32

17

Asm., Pump, Fuel

3088070

$77.21

18

Screw

7512084

$1.49

19

Bracket, Fuel Pump Mount

5246593

Unavailable

20

NUT-M5X.8,HX NYL-Y

7546601

$1.49

21

Trim, Edge

5521131

Unavailable

22

Screw

7518243

$3.19
