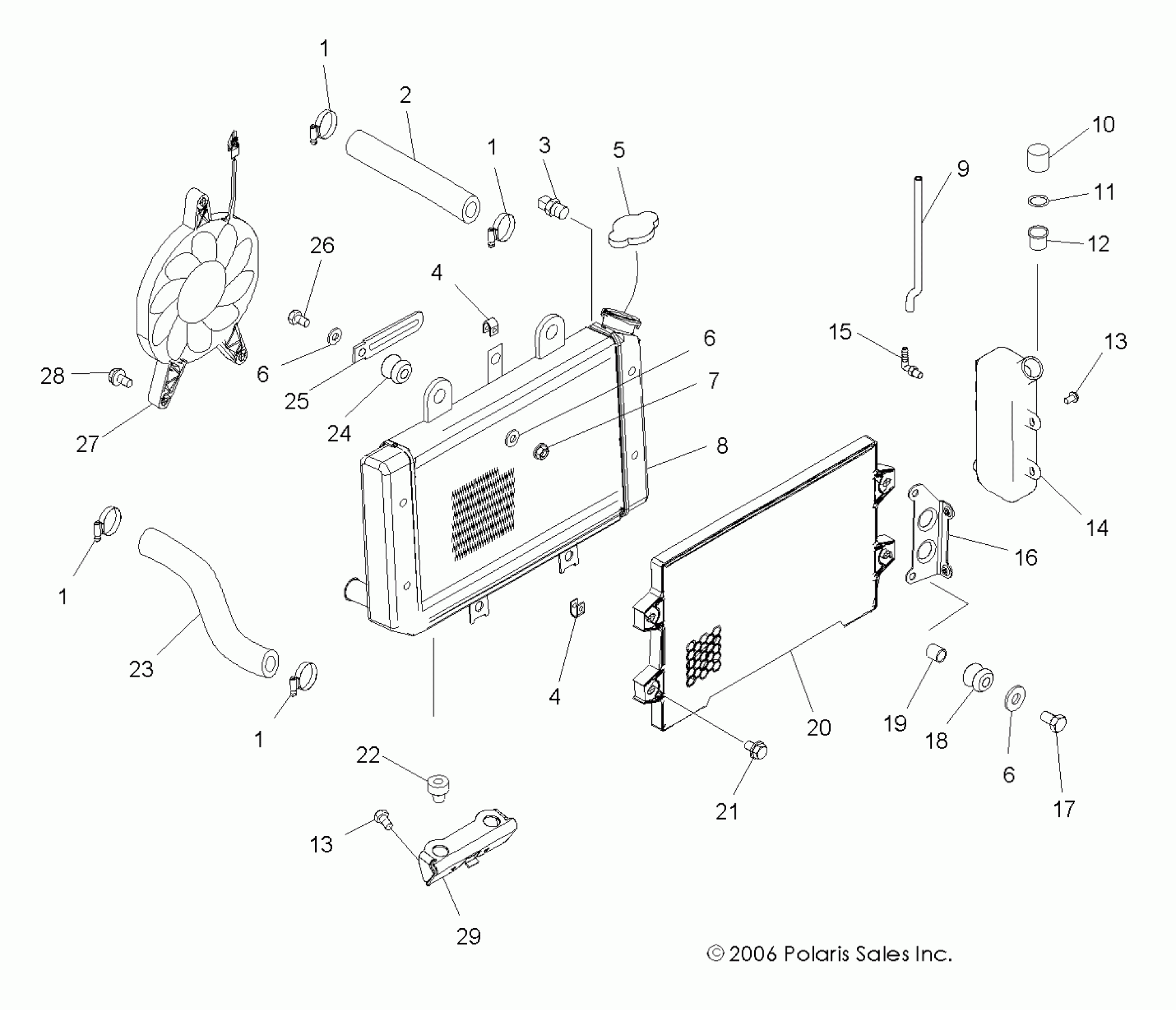

Polaris PREDATOR 500/LE - A07GJ50AA/AB/AC COOLING - A07GJ50AA/AB/AC (49ATVCOOLPRED500) Diagram

#

Description
Price

1

CLAMP, HOSE

7080614

$7.14

1

CLAMP, HOSE

7080614

$7.14

1

CLAMP, HOSE

7080614

$7.14

1

CLAMP, HOSE

7080614

$7.14

2

Hose, Water [AC]

8450050-28

Unavailable

2

Hose, Radiator, Formed, Upper [AA][AB]

5413102

Unavailable

3

Sensor, Thermal Harness [AC]

4010808

$109.24

3

Sensor, Thermal Harness [AA][AB]

4011698

$69.84

4

U-Clip

7547197

$6.19

4

U-Clip

7547197

$6.19

5

Cap, Pressure [AC]

1240093

Unavailable

5

Cap, Pressure [AA][AB]

1240303

$45.24

6

Washer, Flat [AC]

7558301

$1.19

6

Washer, Flat [AC]

7558301

$1.19

6

Washer, Flat [AC]

7558301

$1.19

7

Nut, Nylok [AC]

7542122

$1.19

8

Radiator [AC]

1240130

$202.38

8

Radiator [AA][AB]

1240302

$357.14

9

Line, Fuel

8450003-1525

Unavailable

10

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

11

GASKET-OVERFLOW CAP

5810279

$2.41

12

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

12

Foam, Cap [AA][AB]

5812988

$8.99

13

Screw

7512084

$1.19

13

Screw

7512084

$1.19

14

Tank, Surge

5434856

$52.60

15

Fitting

7052065

$7.14

16

Bracket, Surge Tank [AC]

5247340

$9.84

16

Bracket, Surge Tank [AA][AB]

5249162

$11.51

17

Screw [AC]

7517510

$5.22

17

Screw [AA][AB]

7518656

$3.97

18

Grommet

5410437

$2.38

19

Spacer

5333796

$19.84

20

Screen, Radiator [AC]

5435881

$69.84

20

Screen, Radiator [AA][AB]

5636136

Unavailable

21

Screw w/Washer

7547220

Unavailable

22

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

23

Hose, Radiator, Formed, Lower [AC]

5413101

$24.60

23

Hose, Radiator, Formed [AA][AB]

5413132

Unavailable

24

ASM., GROMMET AND INSERT

5411975

$3.17

25

Retainer [AC]

7080654

$18.32

26

Bolt [AC]

7512163

$3.97

27

Asm., Fan and Motor [AC]

2520272

$304.75

27

Asm., Fan and Motor [AA][AB]

2520719

Unavailable

28

Bolt

7517975

$5.56

29

Bracket, Radiator Mount, Lower, Black [AA][AB]

5250764-458

$5.71
