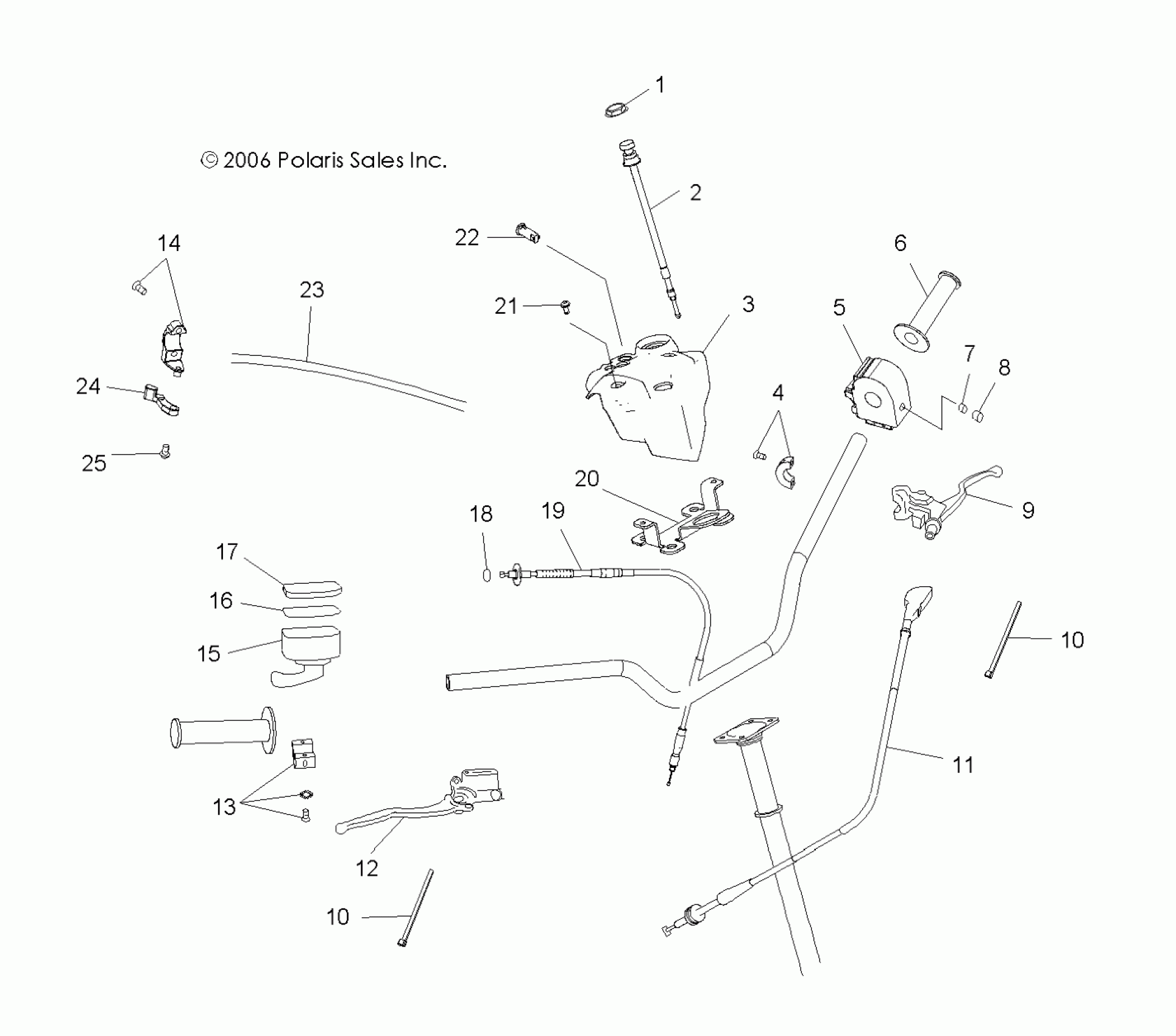

Polaris PREDATOR 500/LE - A07GJ50AA/AB/AC CONTROLS - A07GJ50AA/AB/AC (49ATVCONTROLSPRED500) Diagram

#

Description
Price

1

Nut, Choke

7080922

$3.19

2

Cable, Choke

7081221

$43.99

3

Panel, Instrument

5435785-070

$64.99

4

Holder

2010225

$16.27

4

Bolt

7518211

$5.43

5

Switch, Handlebar

4011387

$115.82

6

Grip, Handlebar

5436089-070

$28.32

7

SCREW, SET

7517625

$4.79

8

PLUG, HOLE

5432952

$5.59

9

Asm., Clutch Lever

2010212

Unavailable

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

Cable, Clutch

7081034

$145.70

12

ASM., MASTER CYLINDER [See Master Cylinder, Front Brake Page for Details]

-------

Unavailable

13

ASM-THROTTLE CLAMP

2010191

$31.99

14

Kit, Master Cylinder Clamp [Incl. Screws][See Master Cylinder, Front Brake Page for Details]

-------

Unavailable

15

Asm., Throttle Control

2010204

Unavailable

16

O-RING

5411439

$2.39

17

COVER, THROTTLE CONTROL

5434113

$31.99

18

O-RING

5410193

$4.99

19

Cable, Throttle

7081285

Unavailable

20

Bracket, Instrument Panel

5246383

Unavailable

21

SCREW

7518176

$4.79

22

Indicator, Hot Light

4010728

Unavailable

22

Indicator, Neutral Light

4010729

Unavailable

22

Indicator, Reverse

4011112

Unavailable

23

Cable, Reverse

7081327

$56.65

24

Lever, Reverse

5135435

$28.32

25

Bolt

7518647

$11.99
