- PREDATOR 500 - A06GJ50AA
TRANSMISSION - A06GJ50AA/AB/AC (4999201849920184D02)

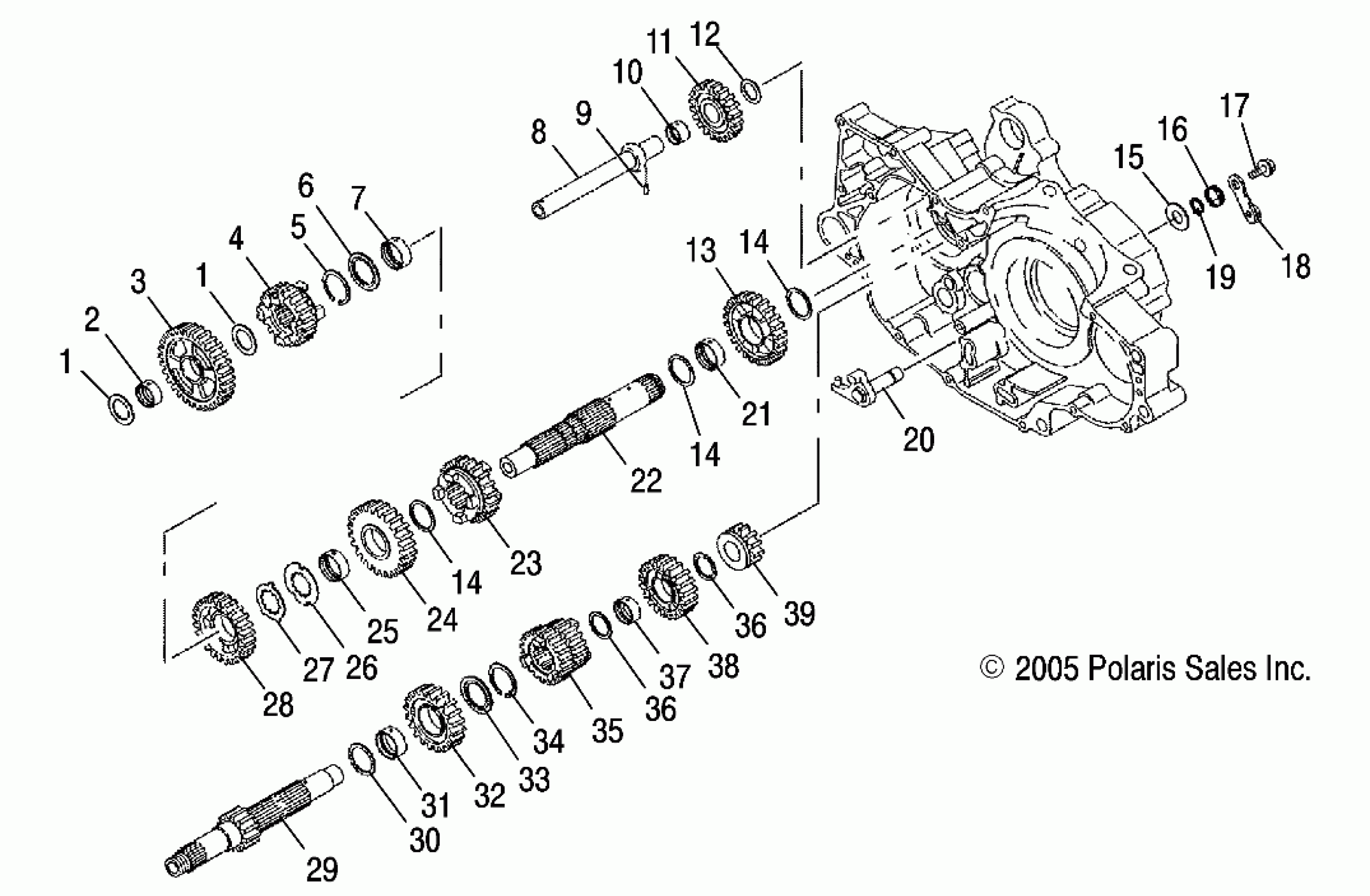

Polaris PREDATOR 500 - A06GJ50AA TRANSMISSION - A06GJ50AA/AB/AC (4999201849920184D02) Diagram
#
1
Washer
3088096
Unavailable
1
Washer
3088096
Unavailable
2
Collar [AA]
3088104
Unavailable
2
Collar [AB][AC]
3089706
$26.23
3
Gear, 1st Driven [AA]
3089631
Unavailable
3
Gear, 1st Driven [AB][AC]
3089701
$64.79
4
Gear, 5th Driven [AA]
3089635
Unavailable
4
Gear, 5th Driven [AB][AC]
3089705
$64.79
5
Clip
3088093
Unavailable
6
Washer, Spline
3088091
$1.49
7
Collar
3089636
$26.23
8
Shaft, Reverse [Incl. 9,10,11,12]
3089665
$124.99
9
Pin, Dowel
3088191
Unavailable
10
Collar
3089668
$22.79
11
Gear, Reverse Idle
3089667
$89.03
12
Washer
3089666
$5.56
13
Gear, Reverse, Driven [AA]
3089652
$79.99
13
Gear, Reverse, Driven [AB][AC]
3089711
Unavailable
14
Washer
3089637
Unavailable
14
Washer
3089637
Unavailable
14
Washer
3089637
Unavailable
15
Washer
3089672
Unavailable
16
Spring, Reverse Arm
3089670
Unavailable
17
BOLT, FLANGE
3088135
Unavailable
18
Lever, Reverse Arm
3089671
Unavailable
19
Ring, Snap
3088033
$1.49
20
Arm, Reverse
3089669
$103.19
21
Collar [AA]
3088106
Unavailable
21
Collar [AB][AC]
3089712
$20.23
22
Asm., Counter Shaft [Incl. 1-7,14,23,24,28][AA]
3089629
Unavailable
22
Shaft, Counter [AA]
3089630
Unavailable
22
Shaft, Counter [AB][AC]
3089700
Unavailable
22
Asm., Counter Shaft [Incl. 1-7,14,23,24,28][AB]
3089699
$349.99
23
Gear, 4th Driven [AA]
3089634
Unavailable
23
Gear, 4th Driven [AB][AC]
3089704
Unavailable
24
Gear, 2nd Driven [AA]
3089632
$80.99
24
Gear, 2nd Driven [AB][AC]
3089702
Unavailable
25
Collar
3089653
$24.60
26
Washer
3088092
$7.03
27
Washer, Lock
3088095
Unavailable
28
Gear, 3rd Driven [AA]
3089633
Unavailable
28
Gear, 3rd Driven [AB][AC]
3089703
Unavailable
29
Asm., Main Shaft [Incl. 14,31-38][AA]
3089622
Unavailable
29
Shaft, Main [AA]
3089623
Unavailable
29
Shaft, Main [AB][AC]
3089689
Unavailable
29
Asm., Main Shaft [Incl. 14,31-38][AB]
3089688
$331.99
30
Washer [AA]
3088094
$5.99
30
Washer [AB][AC]
3089698
$21.83
31
Collar [AA]
3088106
Unavailable
31
Collar [AB][AC]
3089694
Unavailable
32
Gear, 5th Drive [AA]
3089626
$71.83
32
Gear, 5th Drive [AB][AC]
3089692
Unavailable
33
Washer, Spline [AA]
3088091
$1.49
33
Washer, Spline [AB][AC]
3089695
$5.56
34
Clip [AA]
3088093
Unavailable
34
Clip [AB][AC]
3089697
$3.03
35
Gear, 2nd, 3rd Drive [AA]
3089624
Unavailable
35
Gear, 2nd, 3rd Drive [AB][AC]
3089690
Unavailable
36
Washer [AA]
3089628
$7.99
36
Washer [AB][AC]
3089696
Unavailable
36
Washer [AA]
3089628
$7.99
36
Washer [AB][AC]
3089696
Unavailable
37
Collar [AA]
3089627
$21.83
37
Collar [AB][AC]
3089693
$23.81
38
Gear, 4th Drive [AA]
3089625
Unavailable
38
Gear, 4th Drive [AB][AC]
3089691
Unavailable
39
Gear, Reverse, Drive [AA]
3089651
$58.99
39
Gear, Reverse, Drive [AB][AC]
3089710
$47.99
