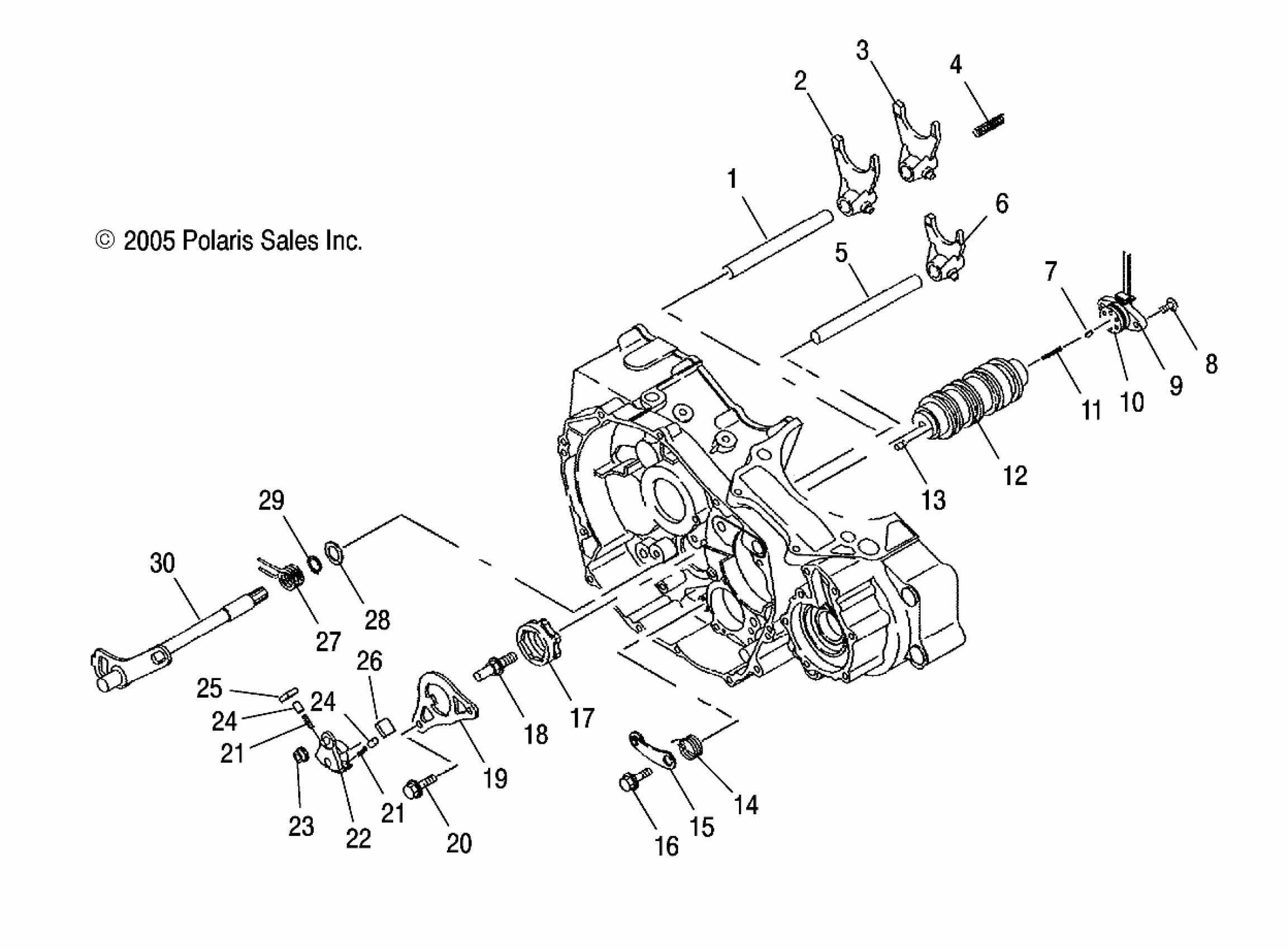

Polaris PREDATOR 500 - A06GJ50AA SHIFTING - A06GJ50AA/AB/AC (4999201849920184D03) Diagram

#

Description
Price

1

Shaft, Fork

3089650

$26.98

2

Fork, Shift, Right

3089645

Unavailable

3

Fork, Shift, Left [AA]

3089644

Unavailable

3

Fork, Shift, Left [AB][AC]

3089709

Unavailable

4

Spring, Forkshaft

3089662

$4.03

5

Shaft, Fork

3089650

$26.98

6

Fork, Shift, Main [AA]

3089643

$86.51

6

Fork, Shift, Main [AB][AC]

3089708

Unavailable

7

Point, Neutral

3088115

Unavailable

8

Asm., Screw and Washer

3083783

$2.39

9

Asm., Switch, Position

3089647

Unavailable

10

O-Ring

3088123

$2.15

11

Spring, Point

3088116

Unavailable

12

Asm., Drum, Shift [AA]

3089787

Unavailable

12

Asm., Drum, Shift [AB][AC]

3089778

Unavailable

13

Pin, Dowel

3088191

Unavailable

14

Spring, Stopper

3089641

$12.39

15

Asm., Arm, Stopper

3089640

$38.71

16

Bolt, Stopper

3088117

$3.03

17

Cam, Shift

3089639

$81.75

18

Pin, Shifter

3089642

$15.03

19

Plate, Guide

3089660

$19.84

20

Bolt, Flange

3089661

$1.49

21

Spring, Plunger

3089659

$1.49

21

Spring, Plunger

3089659

$1.49

22

Shifter, Drum

3089654

$128.99

23

Collar, Shifter

3089655

Unavailable

24

Plunger, Pawl

3089658

$10.71

24

Plunger, Pawl

3089658

$10.71

25

Pawl, Ratcher A

3089656

$15.56

26

Pawl, Ratcher B

3089657

$15.67

27

Spring, Return

3089649

$6.63

28

Washer

3089664

$5.43

29

Ring, Snap

3089663

$7.99

30

Asm., Shaft, Shift

3089648

Unavailable
