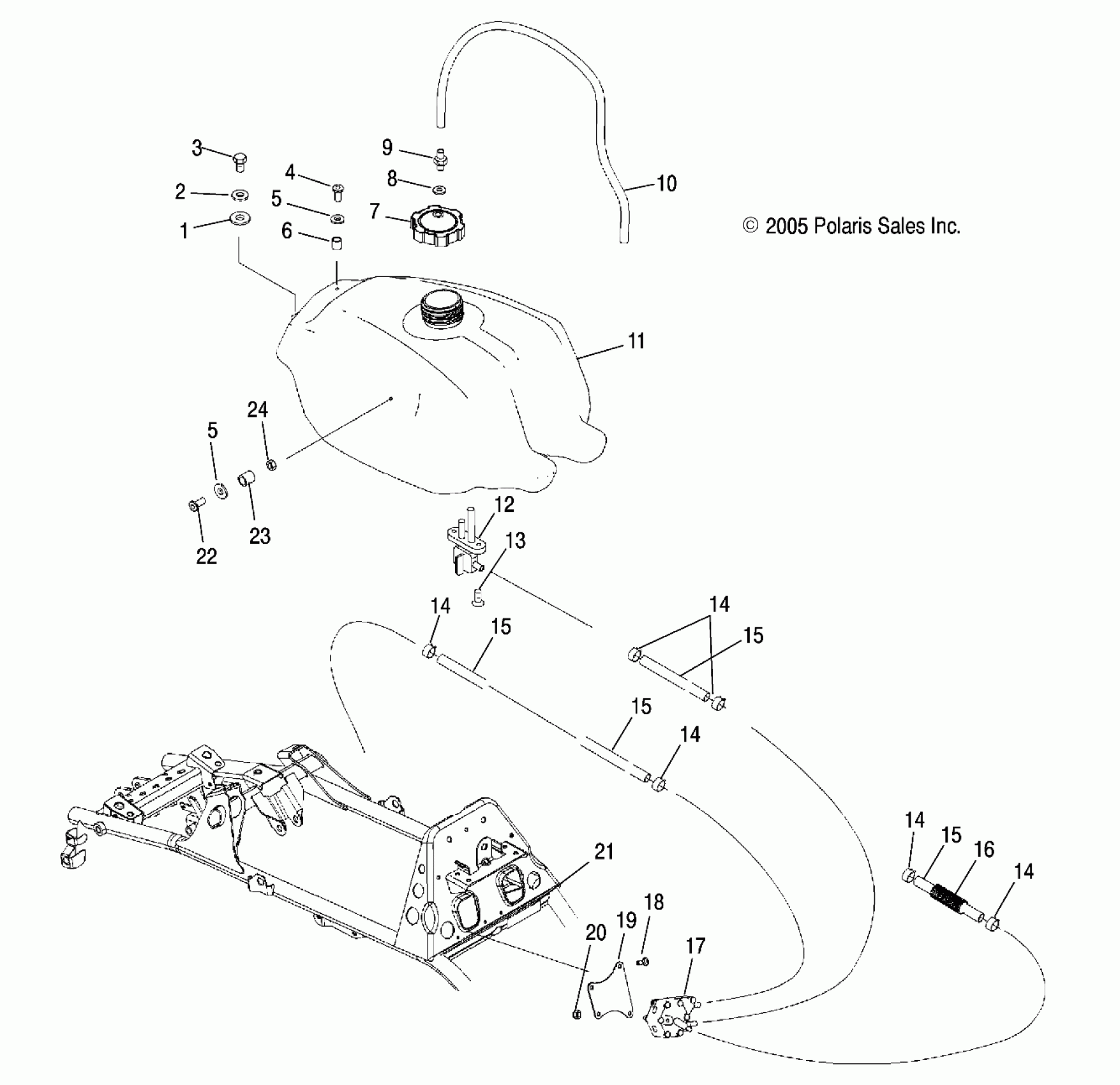

Polaris PREDATOR 500 - A06GJ50AA FUEL TANK - A06GJ50AA/AB/AC (4999201849920184A14) Diagram

#

Description
Price

1

Washer, Flat

7555734

$0.79

2

Washer, Split

7552606

$4.76

3

Bolt

7515321

Unavailable

4

Screw

7515166

$3.17

5

Washer, Flat

7555859

$1.19

5

Washer, Flat

7555859

$1.19

6

Spacer

5334283

$3.97

7

Cap, Fuel Tank [Incl. 8,9,10]

5434736

Unavailable

8

GASKET

----

Unavailable

9

FITTING

----

Unavailable

10

LINE, VENT

----

Unavailable

11

Tank, Fuel

5434452

Unavailable

11

Asm., Fuel Tank [Incl. 12]

2520271

Unavailable

12

Valve, Fuel, On/Off/Reserve

7052331

$40.46

13

Screw

7515136

$1.19

14

HOSE CLAMP, RED

7080003

$1.19

14

HOSE CLAMP, RED

7080003

$1.19

14

HOSE CLAMP, RED

7080003

$1.19

14

HOSE CLAMP, RED

7080003

$1.19

14

HOSE CLAMP, RED

7080003

$1.19

15

Hose, Fuel

8450103

Unavailable

15

Hose, Fuel

8450103

Unavailable

15

Hose, Fuel

8450103

Unavailable

15

Hose, Fuel

8450103

Unavailable

16

TUBING, CONVOLUTED

8360052-305

$32.37

17

Asm., Pump, Fuel

3088070

$79.37

18

Screw

7512084

$1.19

19

Bracket, Fuel Pump Mount

5246593

Unavailable

20

NUT-M5X.8,HX NYL-Y

7546601

$1.19

21

Trim, Edge

5521131

Unavailable

22

Screw

7518243

$3.17

23

Spacer

5435065

Unavailable

24

NUT

7542105

$3.97
