CRANKCASE - A06GJ50AA/AB/AC (4999201849920184C03)

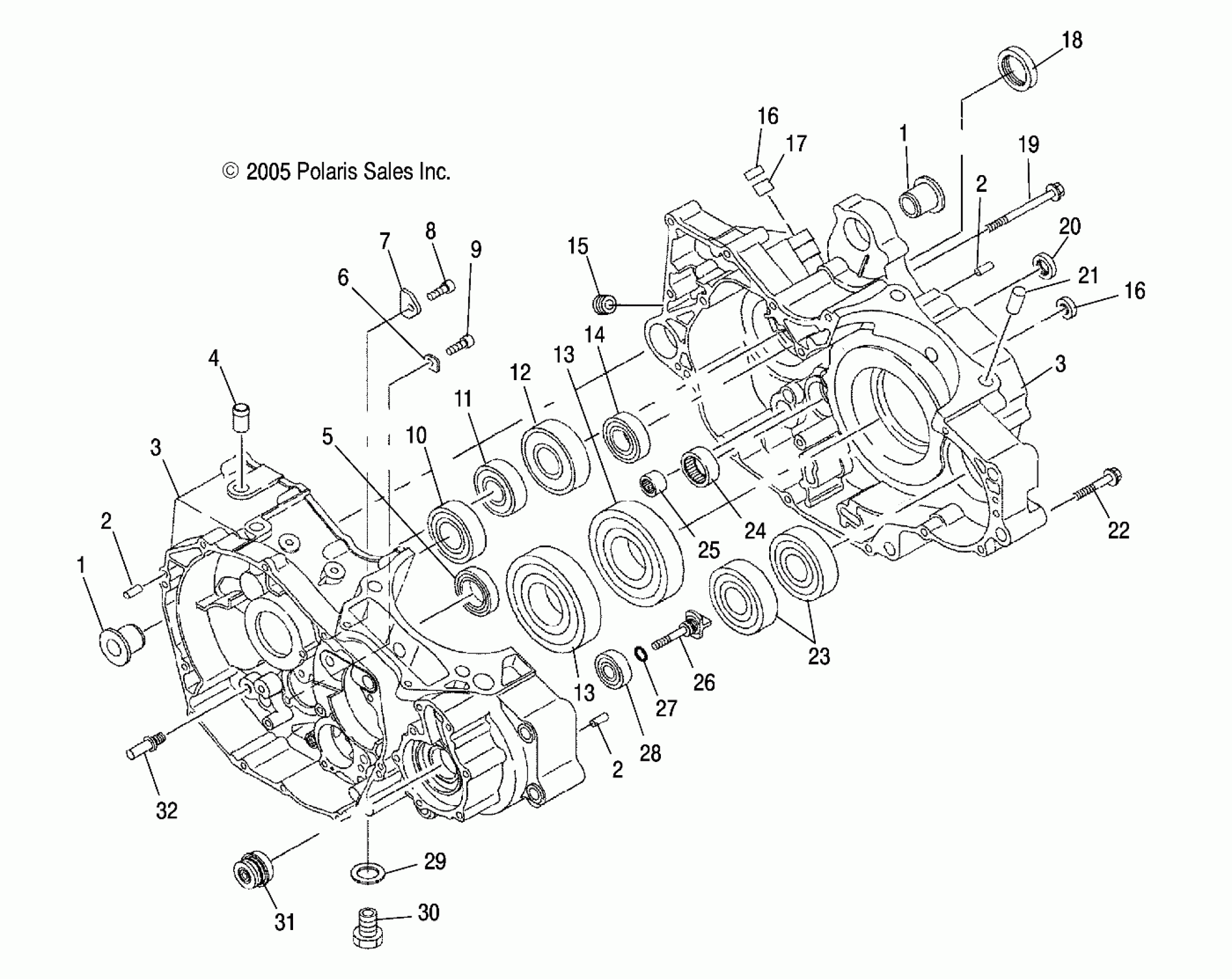

Polaris PREDATOR 500 - A06GJ50AA CRANKCASE - A06GJ50AA/AB/AC (4999201849920184C03) Diagram
#
1
Collar
3087930
$27.62
1
Collar
3087930
$27.62
2
PIN, DOWEL
3086838
$7.19
2
PIN, DOWEL
3086838
$7.19
2
PIN, DOWEL
3086838
$7.19
3
Asm., Crankcase [Incl. all less 6-9,23][AA]
3089580
$709.79
3
Asm., Crankcase [Incl. all less 6-9,23][AB][AC]
3089679
$911.39
3
Asm., Crankcase [Incl. all less 6-9,23][AA]
3089580
$709.79
3
Asm., Crankcase [Incl. all less 6-9,23][AB][AC]
3089679
$911.39
4
Breather, Pipe, Air
3085525
Unavailable
5
Bearing, Ball
3087934
Unavailable
6
Plate, Stopper B
3089585
Unavailable
7
Plate, Stopper
3088138
$3.35
8
Bolt
3090011
Unavailable
9
Bolt
3089586
$1.49
10
Bearing, Ball
3087935
Unavailable
11
BEARING, BALL
3084834
$23.99
12
Bearing, Ball
3087929
Unavailable
13
Bearing, Ball
3089581
Unavailable
13
Bearing, Ball
3089581
Unavailable
14
Bearing, Ball [AA]
3087928
Unavailable
14
Bearing, Ball [AB][AC]
3089680
Unavailable
15
PLUG, BLIND
3084862
Unavailable
16
Seal, Oil
3087926
Unavailable
16
Seal, Oil
3087926
Unavailable
17
Bearing, Release
3087925
$9.52
18
Seal, Oil
3086510
$40.46
19
Bolt, Flange
3089493
Unavailable
20
Seal, Oil
3087927
Unavailable
21
KNOCK, PIPE
3087266
Unavailable
22
Bolt, Flange
3089492
Unavailable
23
Bearing, Ball
3089582
Unavailable
24
Bearing, Needle
3089584
Unavailable
25
Bearing, Needle
3089440
$18.39
26
Asm., Shaft, Water Pump [Incl. 27,28]
3089583
Unavailable
27
O-Ring
3087938
Unavailable
28
Bearing, Ball
3087937
Unavailable
29
GASKET
3082956
$4.84
30
Plug
3089438
Unavailable
31
Asm., Seal, Mechanical
3084837
$68.79
32
Pin, Stopper
3086195
$11.43
