Description

Price

-

Asm., Clutch, Multi [Incl. 6-8,13-18,25,26]

3089616

$704.99

1

Plate, Release

3089621

$7.43

2

Spring, Release

3088079

Unavailable

3

Asm., Shaft, Release

3088078

$73.81

4

BOLT, FLANGE

3084877

Unavailable

5

Collar, Distance

3089619

$32.79

6

Asm., Clutch, Outer

3089617

Unavailable

7

Washer, Thrust

3088186

Unavailable

8

Asm., Center, Clutch

3088180

Unavailable

9

Pusher

3088081

$37.91

10

Rod, Push

3089620

Unavailable

11

Nut, Lock

3086285

Unavailable

12

Washer, Lock

3086286

Unavailable

13

Plate, Clutch

3088184

$43.99

14

Disk B, Clutch Friction

3088185

Unavailable

15

Disk A, Clutch Friction

3089618

$59.99

16

Spring, Clutch

3088177

$11.32

17

Washer, Clutch Spring

3088176

$2.99

18

Bolt

3088175

Unavailable

19

Gasket, Clutch Cover

3089615

Unavailable

20

Asm., Cover, Clutch [Incl. 21,23,24][AA]

3089614

$434.99

20

Asm., Cover, Clutch [Incl. 21,23,24][AB]

3089687

$464.99

21

Asm., Pipe

3085850

$51.99

22

BOLT, FLANGE

3084874

Unavailable

23

Seal, Oil, Crank

3088072

$27.99

24

Ring, Snap, Inner

3088073

Unavailable

25

Disk, Clutch Pressure

3088178

Unavailable

26

Bearing, Ball

3088179

$15.99

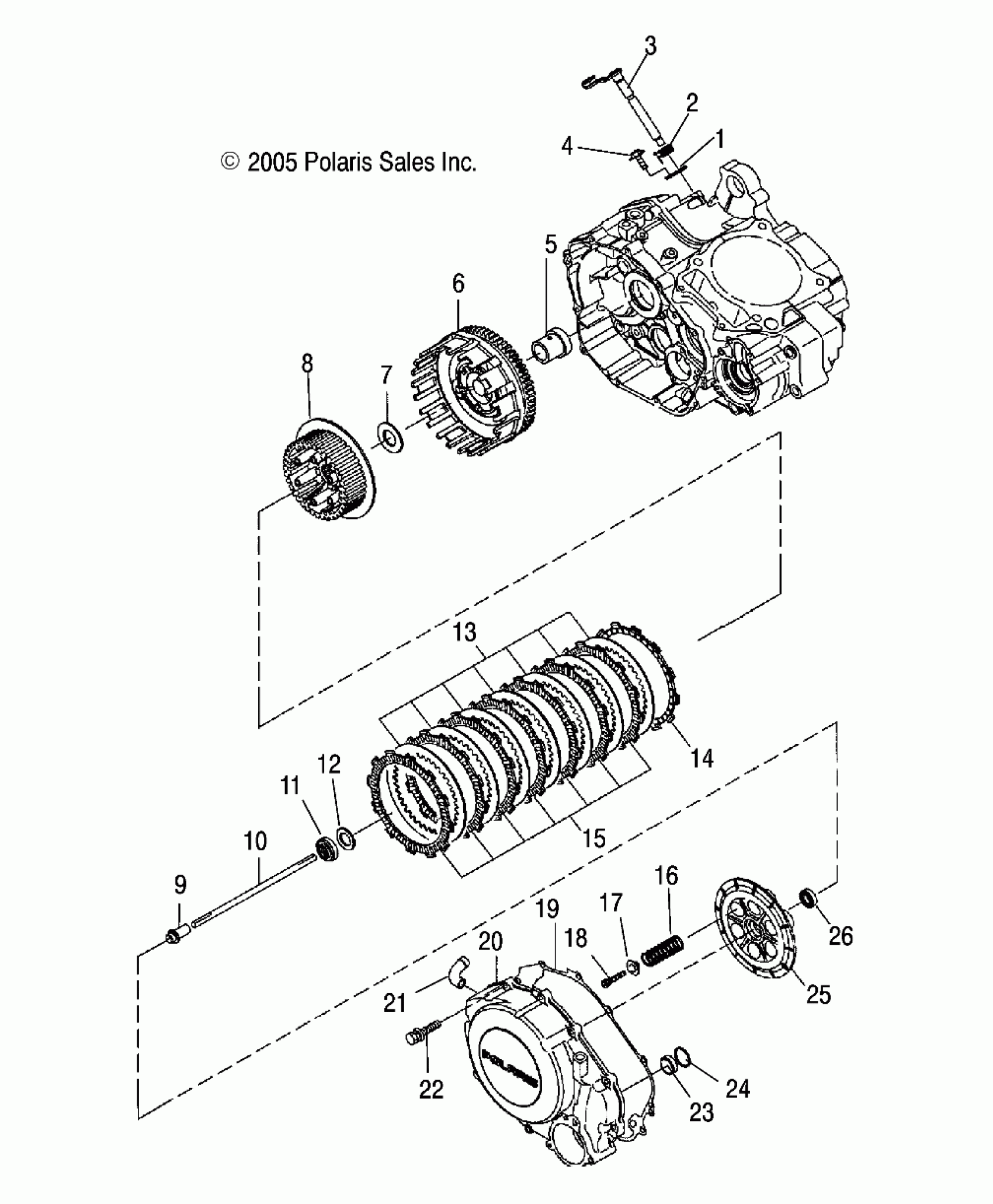

Polaris PREDATOR 500 - A06GJ50AA CLUTCH - A06GJ50AA/AB/AC (4999201849920184D04) Diagram

Asm., Clutch, Multi [Incl. 6-8,13-18,25,26]

Plate, Release

Spring, Release

Asm., Shaft, Release

BOLT, FLANGE

Collar, Distance

Asm., Clutch, Outer

Washer, Thrust

Asm., Center, Clutch

Pusher

Rod, Push

Nut, Lock

Washer, Lock

Plate, Clutch

Disk B, Clutch Friction

Disk A, Clutch Friction

Spring, Clutch

Washer, Clutch Spring

Bolt

Gasket, Clutch Cover

Asm., Cover, Clutch [Incl. 21,23,24][AA]

Asm., Cover, Clutch [Incl. 21,23,24][AB]

Asm., Pipe

BOLT, FLANGE

Seal, Oil, Crank

Ring, Snap, Inner

Disk, Clutch Pressure

Bearing, Ball
