- PREDATOR 500 - A06GJ50AA
CARBURETOR, LOWER - A06GJ50AA/AB/AC (4999201849920184C07)

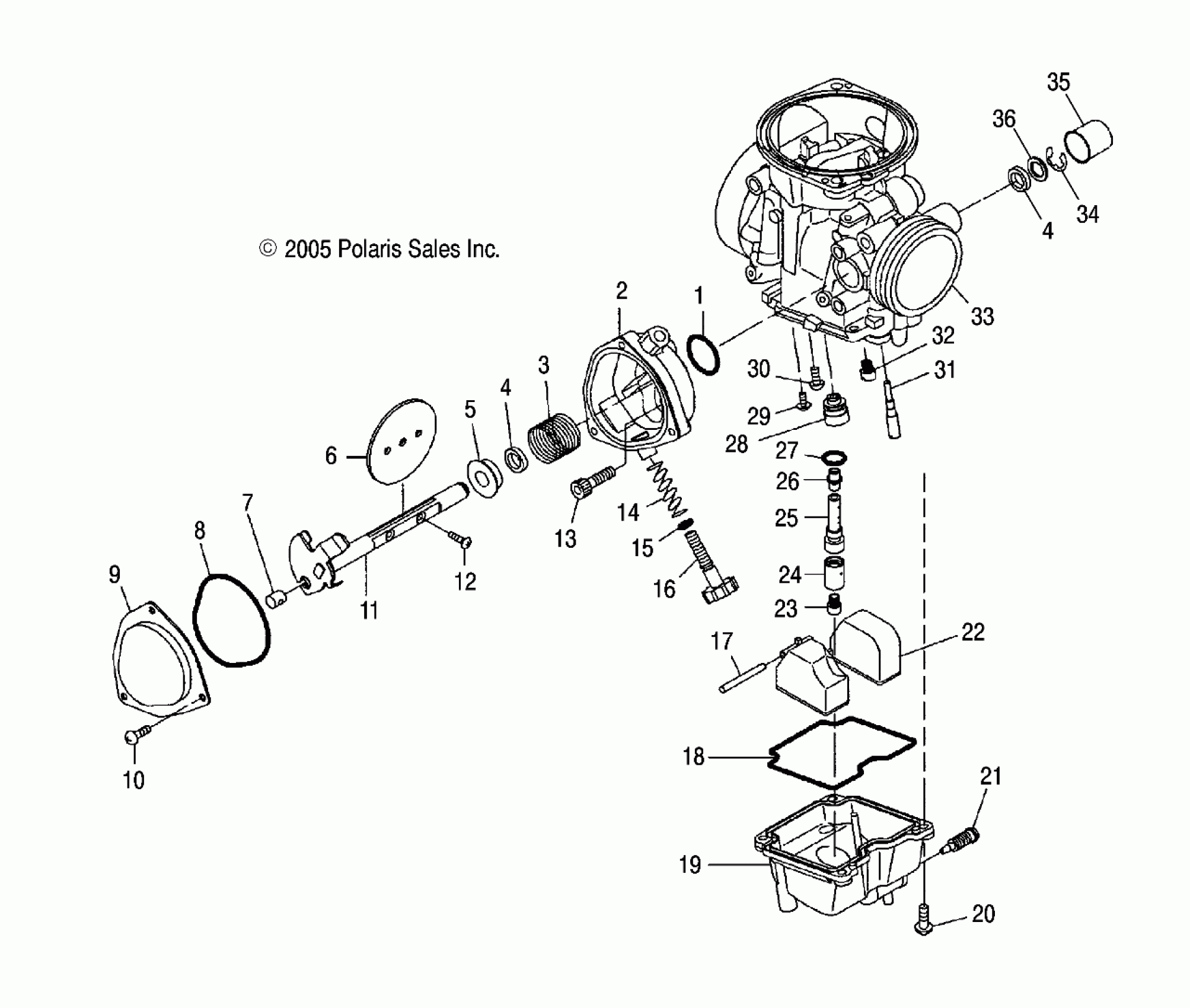

Polaris PREDATOR 500 - A06GJ50AA CARBURETOR, LOWER - A06GJ50AA/AB/AC (4999201849920184C07) Diagram
#
Description
Price
1
O-RING
3130928
$6.39
2
Case
3131502
Unavailable
3
SPRING
3130927
$6.15
4
SEAL
3130515
$11.99
4
SEAL
3130515
$11.99
5
RING
3130932
$1.75
6
Valve, Throttle, 105
3131476
Unavailable
7
GUIDE, CABLE
3130543
$27.99
8
O-RING
3130929
$13.19
9
COVER
3130930
$31.99
10
Screw
3131512
$3.99
11
A-Shaft, Throttle
3131500
Unavailable
12
SCREW
3131475
$3.99
13
Bolt
3131503
Unavailable
14
Spring
3130010
$8.89
15
O-RING
3131501
$2.79
16
Screw, Adjust
3131511
Unavailable
17
Pin
3130043
Unavailable
18
O-Ring
3131494
$23.99
19
Body, Float
3131493
Unavailable
20
Screw
3131509
$5.99
21
SCREW
3130521
$10.39
22
A-Float
3131492
Unavailable
23
Jet, Main, 150
3140172
$7.27
24
Ring
3131490
Unavailable
25
Holder, Jet
3131491
Unavailable
26
Jet, Needle
3131496
$40.46
27
O-Ring
3140053
$5.65
28
Valve, Needle
3131575
$68.79
29
Screw
3131057
Unavailable
30
SCREW
3130924
$1.59
31
Jet, Pilot, 45
3131023
$20.22
32
Jet, 42.5
3131488
Unavailable
33
Asm., Carburetor [Incl. All]
3131574
Unavailable
34
E-RING
3130518
$1.59
35
CAP
3130519
$10.39
36
PACKING
-------
Unavailable
