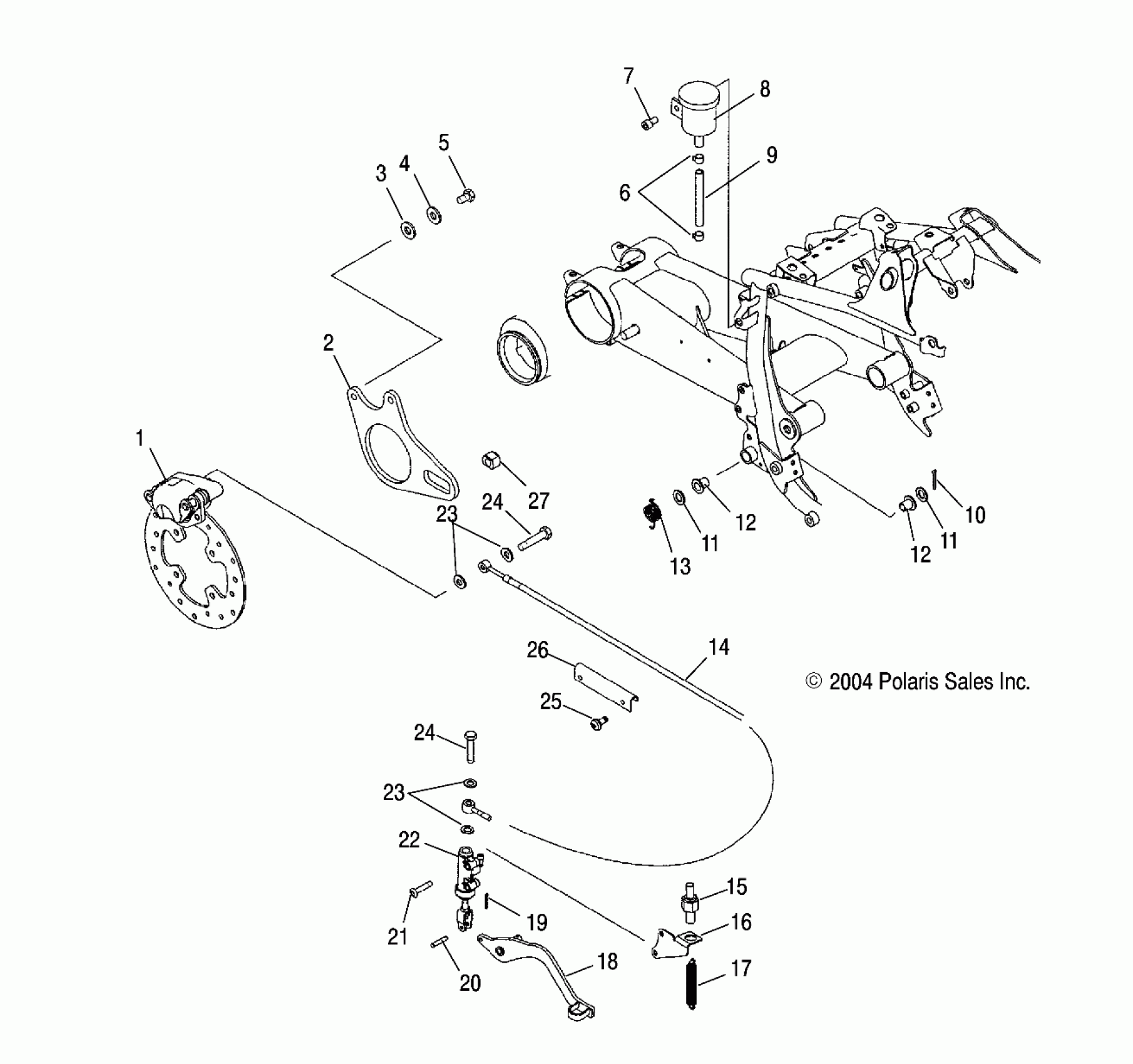

Polaris PREDATOR 500 - A06GJ50AA BRAKE, REAR - A06GJ50AA/AB/AC (4995119511B09) Diagram

#

Description
Price

1

Asm., Caliper

1910689

$288.87

2

Mount, Caliper, Axle

5245939

$44.51

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

WASHER, SPRING LOCK

7552901

$1.49

5

Bolt

7515335

$3.19

6

HOSE CLAMP, RED

7080003

$1.49

7

Screw

7517560

$4.79

8

Asm., Reservoir, Rear Brake

1930854

$35.99

9

Hose, Reservoir

1910438

$7.27

10

PIN, COTTER

7661401

$1.49

11

WASHER

7555919

$4.99

11

WASHER

7555919

$4.99

12

BUSHING, PEDAL PIVOT

5433189

$3.99

12

BUSHING, PEDAL PIVOT

5433189

$3.99

13

Spring, Torsion, Foot Brake

7042185

$7.19

14

Line, Brake, Master Cylinder to Caliper

1910728

$83.99

15

Switch

4010991

$51.99

16

Bracket, Brake Switch Mount, Silver

5246844-385

Unavailable

17

Spring, Extension, Brake Switch

7042266

$6.99

18

Brake, Foot, Silver

1013704-385

Unavailable

19

Pin, Cotter

7661103

$4.99

20

Pin, Clevis

7661013

$5.59

21

SCR-1/4-20X1 1/2 PH/TRX-GR5-Y

7518264

$3.99

22

Asm., Cylinder, Master

1910627

$171.99

23

Seal

5410988

$4.84

23

Seal

5410988

$4.84

24

BOLT, BANJO

1910499

$5.59

24

BOLT, BANJO

1910499

$5.59

25

Screw

7518196

$1.49

26

Retainer, Brake Line, Rear

5435451

$16.99

27

Bushing, Caliper Mount

5134441

$32.37
