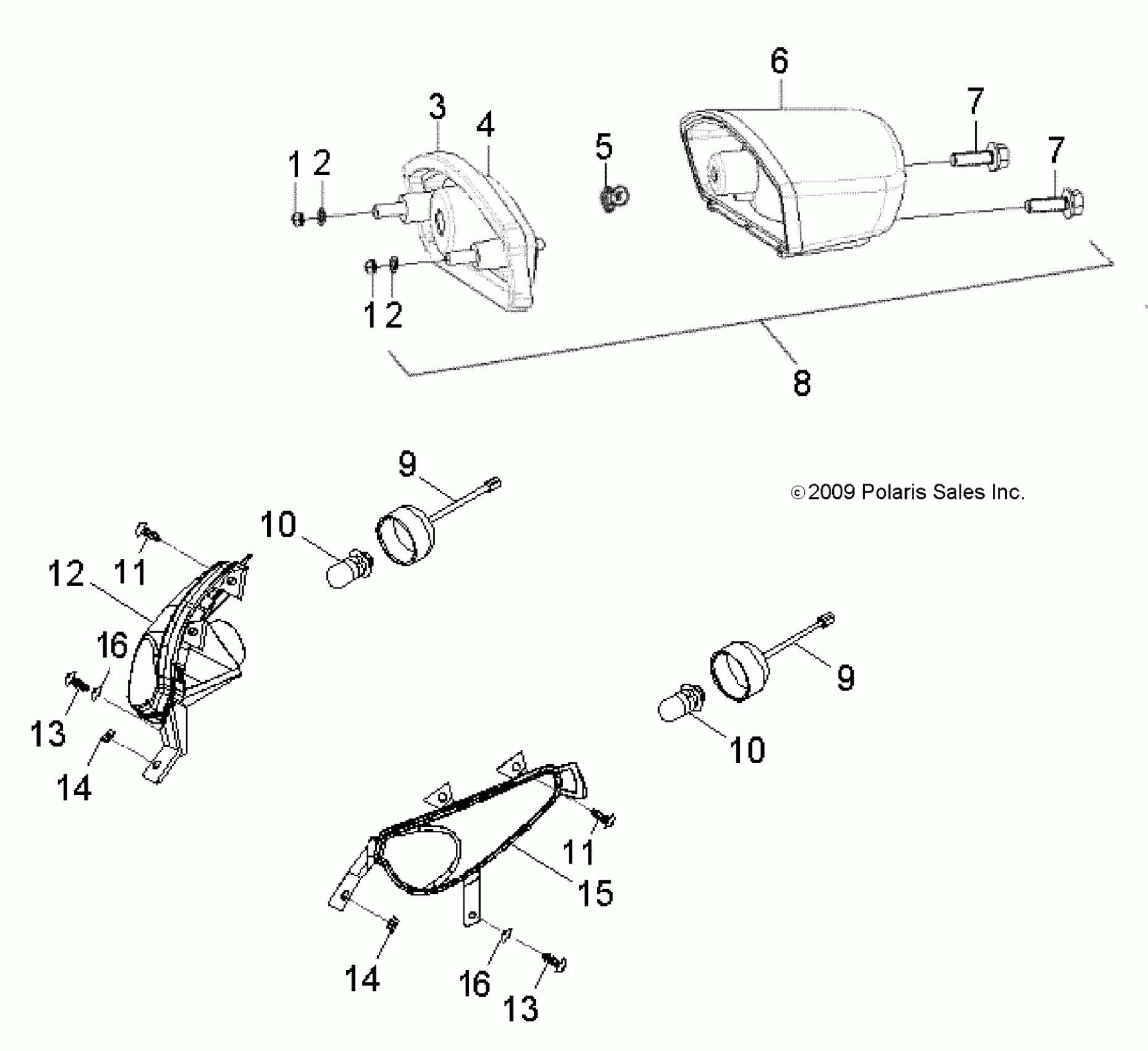

Polaris PREDATOR 50 - A07KA05CA/CB/CD HEADLIGHT/TAILLIGHT - A07KA05CA/CB/CD (49ATVHEADLIGHT07PRED50) Diagram

#

Description
Price

1

NUT, FLANGE, HEX

0450880

$3.99

1

NUT, FLANGE, HEX

0450880

$3.99

2

WASHER, PLAIN

0450041

$4.79

2

WASHER, PLAIN

0450041

$4.79

3

GASKET, TAILLIGHT

0451799

$6.39

4

Socket, Taillight

0453483

Unavailable

5

BULB, TAILLIGHT

0452830

$9.59

6

LENS, TAILLIGHT

0452995

Unavailable

7

BOLT

0451801

$3.99

7

BOLT

0451801

$3.99

8

Asm., Taillight [Incl. 3-7]

0452829

Unavailable

9

SOCKET, HEADLIGHT

0453892

$39.99

9

SOCKET, HEADLIGHT

0453892

$39.99

10

Bulb, Headlight

0453891

Unavailable

10

Bulb, Headlight

0453891

Unavailable

11

SCREW

0451803

$3.19

11

SCREW

0451803

$3.19

12

LENS, HEADLIGHT, RH

0453890

$51.99

13

SCREW, TAPPING

0451812

$3.19

13

SCREW, TAPPING

0451812

$3.19

14

NUT, U-PLATE

0450752

$2.39

14

NUT, U-PLATE

0450752

$2.39

15

LENS, HEADLIGHT, LH

0453889

$51.99

16

WASHER

0450710

$1.49

16

WASHER

0450710

$1.49
