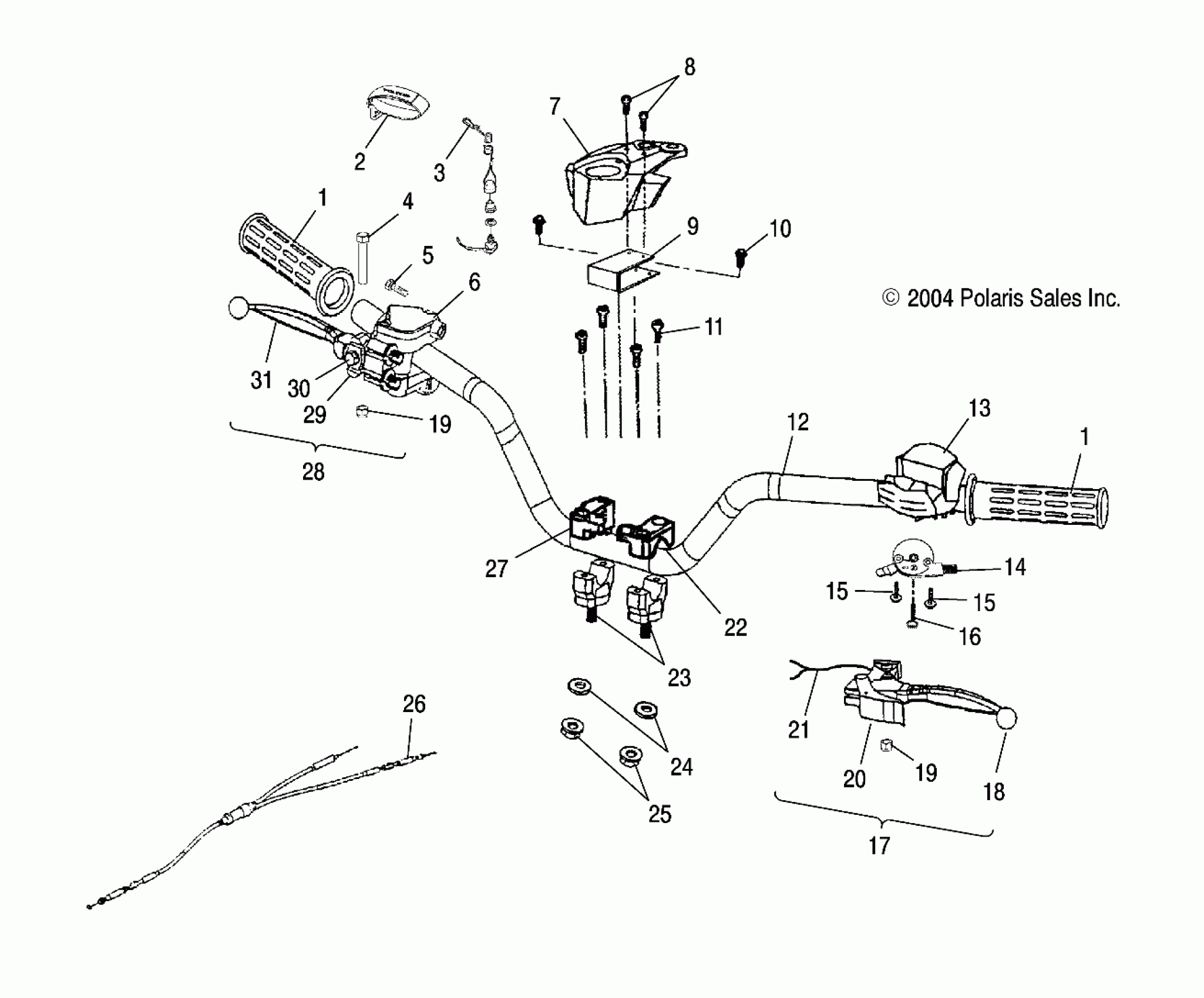

Polaris PREDATOR 50 - A05KA05CA HANDLEBAR - A05KA05CA (4995239523B11) Diagram

#

Description
Price

1

Grip, Hand

0451333

$23.99

1

Grip, Hand

0451333

$23.99

2

Tether, Wristband

7080891

Unavailable

3

Switch, Safety

0450550

Unavailable

4

BOLT, BRAKE LEVER, RH

0450806

$2.39

5

BOLT

0451788

Unavailable

6

Arm, Throttle

0451040

Unavailable

7

Cover, Handlebar

0451327-070

$52.60

8

Bolt, Philips

0450667

$5.59

9

Bracket, Handlebar Cover

0451790

$27.99

10

Bolt, Hex

0450701

$1.49

11

Bolt, Hex

0450148

$3.99

12

Handlebar

0452058

$53.59

13

Asm., Switch, LH

0453359

$127.99

14

Asm., Manual Choke [Incl. 15,16]

0451037

$36.41

15

BOLT

0451148

$3.19

15

BOLT

0451148

$3.19

16

BOLT

0451149

$3.99

17

Asm., Lever LH [Incl. 18-21]

0451787

Unavailable

18

LEVER, BRAKE, SIDE

0450690

$27.99

19

NUT, LOCK

0450808

$2.39

19

NUT, LOCK

0450808

$2.39

20

LOCK, HAND BRAKE

0450688

$10.39

21

Harness, Sensor Switch

0451090

Unavailable

22

Clamp, Top, LH

0450460

$35.99

23

CLAMP, SADDLE

0450459

$39.99

24

WASHER

0450279

$3.19

25

NUT, LOCK

0450276

$3.99

26

Cable, Throttle

0451789

$141.65

27

Clamp, Top, RH

0450461

$27.99

28

Asm., Lever, RH [Incl. 6,29-31]

0451099

Unavailable

29

BRACKET, BRAKE CABLE

0450994

$31.99

30

Bolt

0450309

Unavailable

31

Lever, Brake, RH

0450691

$27.99
