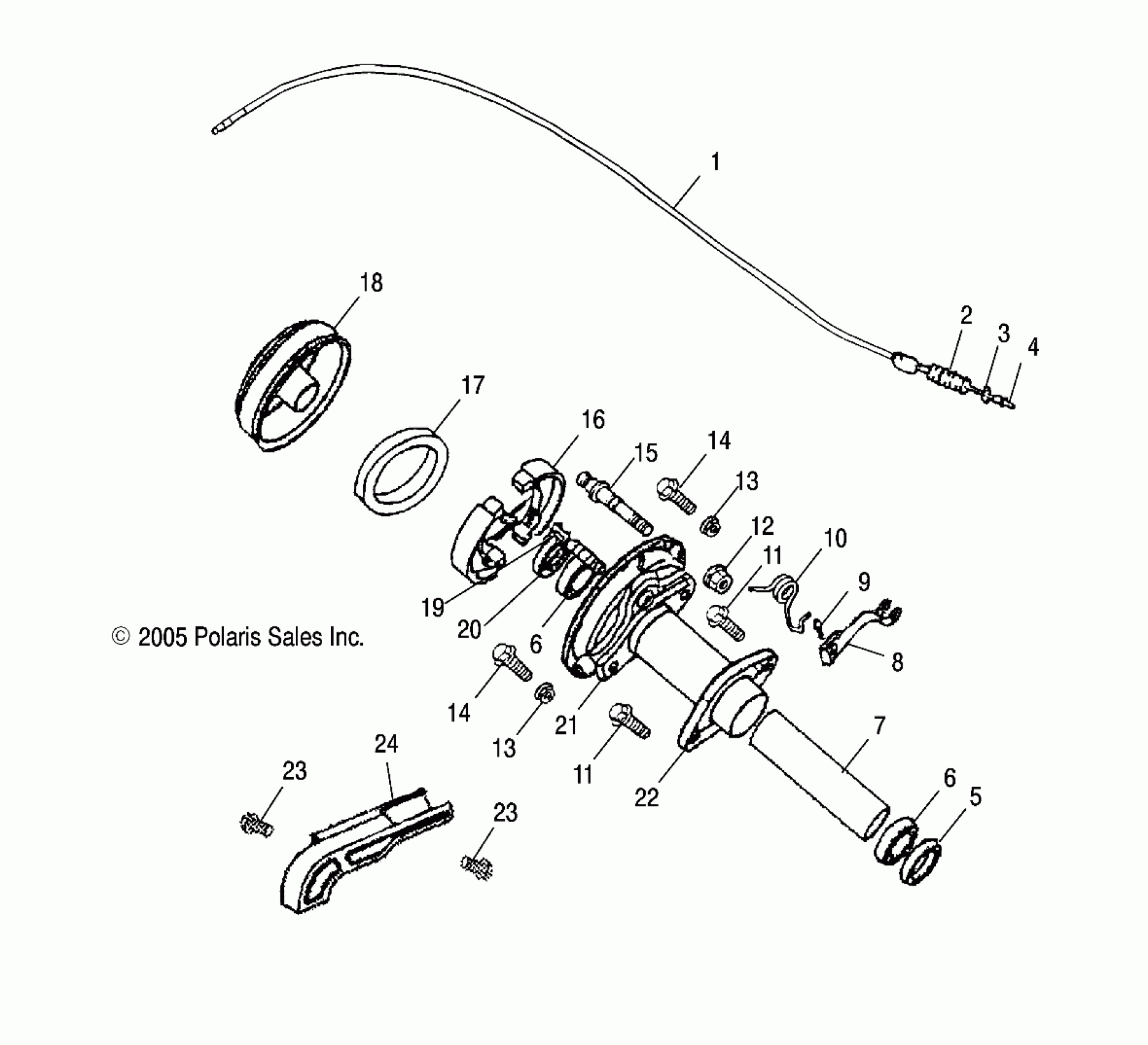

Polaris PREDATOR 50 - A04KA05CA REAR BRAKE - A04KA05CA (4999202359920235B10) Diagram

#

Description
Price

1

Cable, Rear Brake

0451784

Unavailable

2

Spring, Cable, Rear Brake

0450435

$4.79

3

Fixture, Rear Brake

0450437

Unavailable

4

NUT, ADJUST, BRAKE

0451079

$5.59

5

SEAL, OIL

0451781

$11.99

6

Bearing, Needle

0450429

$47.99

6

Bearing, Needle

0450429

$47.99

7

Tube, Spacer

0451780

$16.47

8

Arm, Rear Brake

0451782

$14.99

9

Bolt, Hex

0451783

$3.99

10

Spring, Arm, Rear Brake

0450453

$4.79

11

Bolt, Hex

0450451

Unavailable

11

Bolt, Hex

0450451

Unavailable

12

Nut, Lock

0450881

$4.79

13

NUT, FLANGE

0450529

$2.39

13

NUT, FLANGE

0450529

$2.39

14

Bolt, Hex

0450452

$7.19

14

Bolt, Hex

0450452

$7.19

15

Shaft, Fixed, Rear Brake

0450854

$14.39

16

Shoe, Rear Brake

0450434

Unavailable

17

Rubber, Protective

0450442

$9.59

18

Drum, Rear Brake

0450441

Unavailable

19

Shaft, Cam, Rear Brake

0450431

$31.99

20

Seal, Oil

0450430

$15.99

21

Plate, Rear Brake

0450440

$63.99

22

Housing, Axle, Rear

0451779

$103.79

23

BOLT, HEX

0450325

Unavailable

23

BOLT, HEX

0450325

Unavailable

24

Guard, Chain, Rear

0451785

Unavailable
