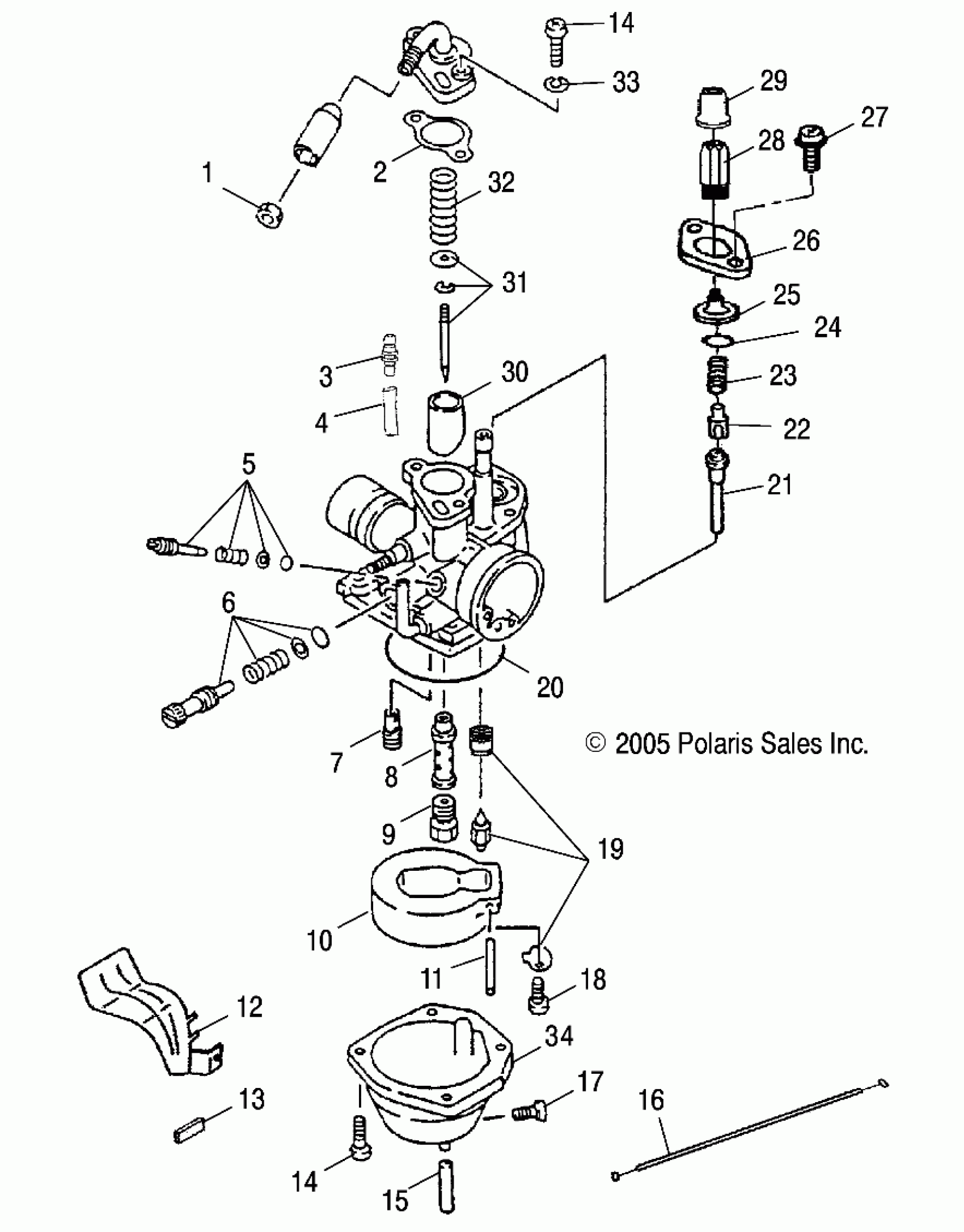

Polaris PREDATOR 50 - A04KA05CA CARBURETOR - A04KA05CA (4999202359920235A08) Diagram

#

Description
Price

-

Asm., Carburetor [Incl. All less 12,13]

0451730

Unavailable

1

Nut, Cable Adjust

0451735

Unavailable

2

Gasket

0451731

Unavailable

3

Plug, Oil

0451014

$1.99

4

Tube

0451013

$3.99

5

Screw Set, Air Adjust

0450103

$36.41

6

Screw Set, Throttle

0450114

Unavailable

7

Jet, Pilot

0451810

$49.99

8

Nozzle, Needle

0451053

Unavailable

9

Jet, Main

0451732

Unavailable

10

Float, Carb

0450976

$59.99

11

Pin, Float

0450118

$10.51

12

Shroud, Cylinder

0451736

$17.43

13

Rubber, Vibration

0450863

$3.99

14

Bolt, Pan

0450086

$5.59

14

Bolt, Pan

0450086

$5.59

15

Tube, Overflow

0451733

Unavailable

16

Cable, Choke

0451032

Unavailable

17

Plug, Drain

0450105

$10.39

18

Bolt, Pan, Phillips

0450108

Unavailable

19

Asm., Needle and Seat

0451734

$99.99

20

Seal, Float Chamber

0451054

$13.75

21

Nozzle, Choke

0450923

Unavailable

22

Valve, Choke

0451055

$13.75

23

Spring, Choke Return

0451057

$9.59

24

O-Ring

0451028

$7.99

25

Base, Manual Choke

0451058

Unavailable

26

Bracket, Manual Choke

0451056

Unavailable

27

Bolt, Pan, Phillips

0451025

Unavailable

28

Support, Cable

0451060

$10.51

29

Cover, Cable Support

0451059

Unavailable

30

Slide, Carburetor

0451051

$35.71

31

Set, Needle

0451052

Unavailable

32

Spring, Throttle Stop

0450084

Unavailable

33

Washer, Spring

0450087

Unavailable

34

Bowl, Float

0453374

$48.40
