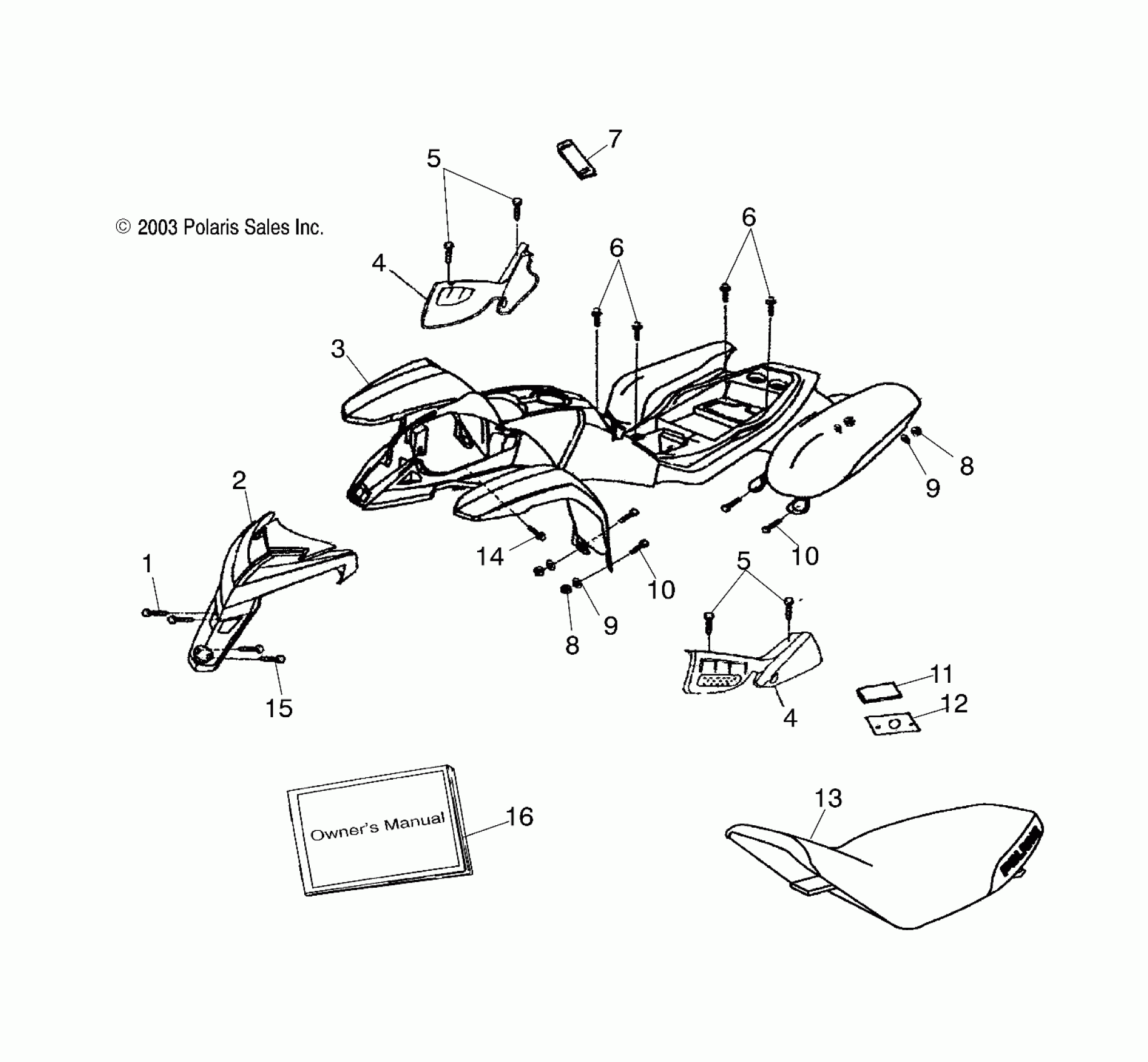

Polaris PREDATOR 50 - A04KA05CA CAB/SEAT - A04KA05CA (4987878787B04) Diagram

#

Description
Price

1

SCREW, TAPPING

0451812

$3.19

2

Cover, Front, Black Metallic

0451317-177

Unavailable

3

Cab, Silver

0451318-385

Unavailable

4

Panel, Side, LH

0451325-070

Unavailable

4

Panel, Side, RH

0451326-070

Unavailable

4

Panel, Side, LH

0451325-070

Unavailable

4

Panel, Side, RH

0451326-070

Unavailable

5

Screw, Tapping

0450676

$1.59

5

Screw, Tapping

0450676

$1.59

6

Bolt, Hex

0450340

Unavailable

6

Bolt, Hex

0450340

Unavailable

7

STRAP, BATTERY

0451140

$6.39

8

Nut, Lock

0450741

$3.19

8

Nut, Lock

0450741

$3.19

9

Washer, Plain

0450710

$1.49

9

Washer, Plain

0450710

$1.49

10

Bolt, Phillips

0450622

$2.39

10

Bolt, Phillips

0450622

$2.39

11

Rubber, Battery

0450346

$2.39

12

Pad, Protector

0450346

$2.39

13

Asm., Seat

0451328

Unavailable

14

Bolt, Hex, Washer Face

0450824

$2.39

15

SCREW, TAPPING

0451766

$3.19

16

Manual, Owner's, '04 Youth

9918778

$28.99
