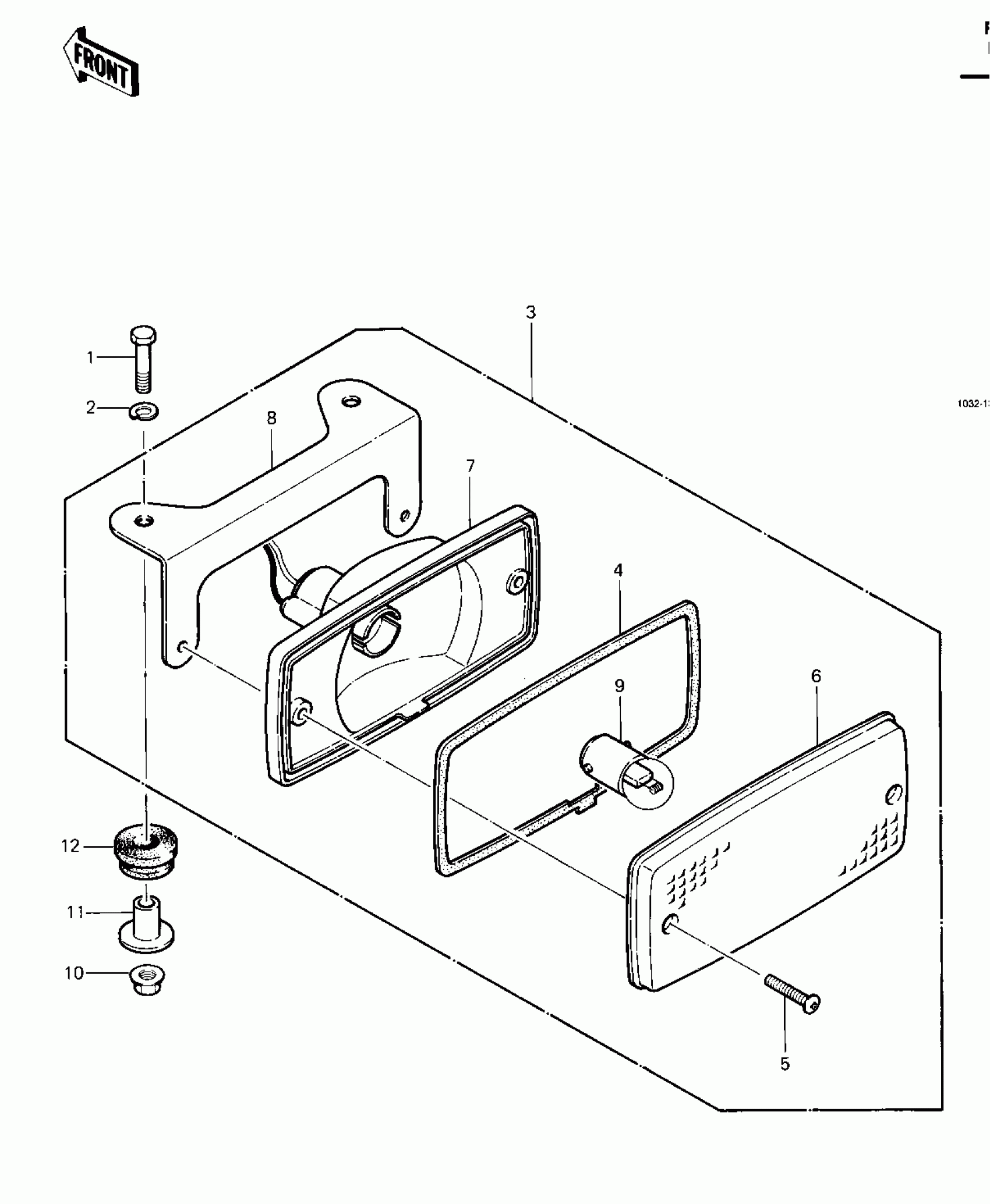

Kawasaki Prairie TAILLIGHT ('83 C1) Diagram

#

Description
Price

1

BOLT-UPSET,6X20

112G0620

$2.12

2

WASHER SPRING 6MM

461F0600

$0.69

3

LAMP-ASSY-TAIL

23024-4002

Unavailable

4

GASKET,TAIL LAMP

11009-4004

$7.61

5

SCREW-PAN-CROS

220B0420

$2.49

6

LENS,TAIL LAMP

23026-4003

$20.67

7

BODY-COMP-TAIL LAMP

23027-4001

$18.24

8

BRACKET-TAIL LAMP

23036-4004

$12.67

9

BULB,12V 8W

92069-1012

$5.18

10

NUT,FLANGED,6MM

92015-1078

Unavailable

11

COLLAR

92027-1045

$5.52

12

DAMPER

92075-277

$2.84
