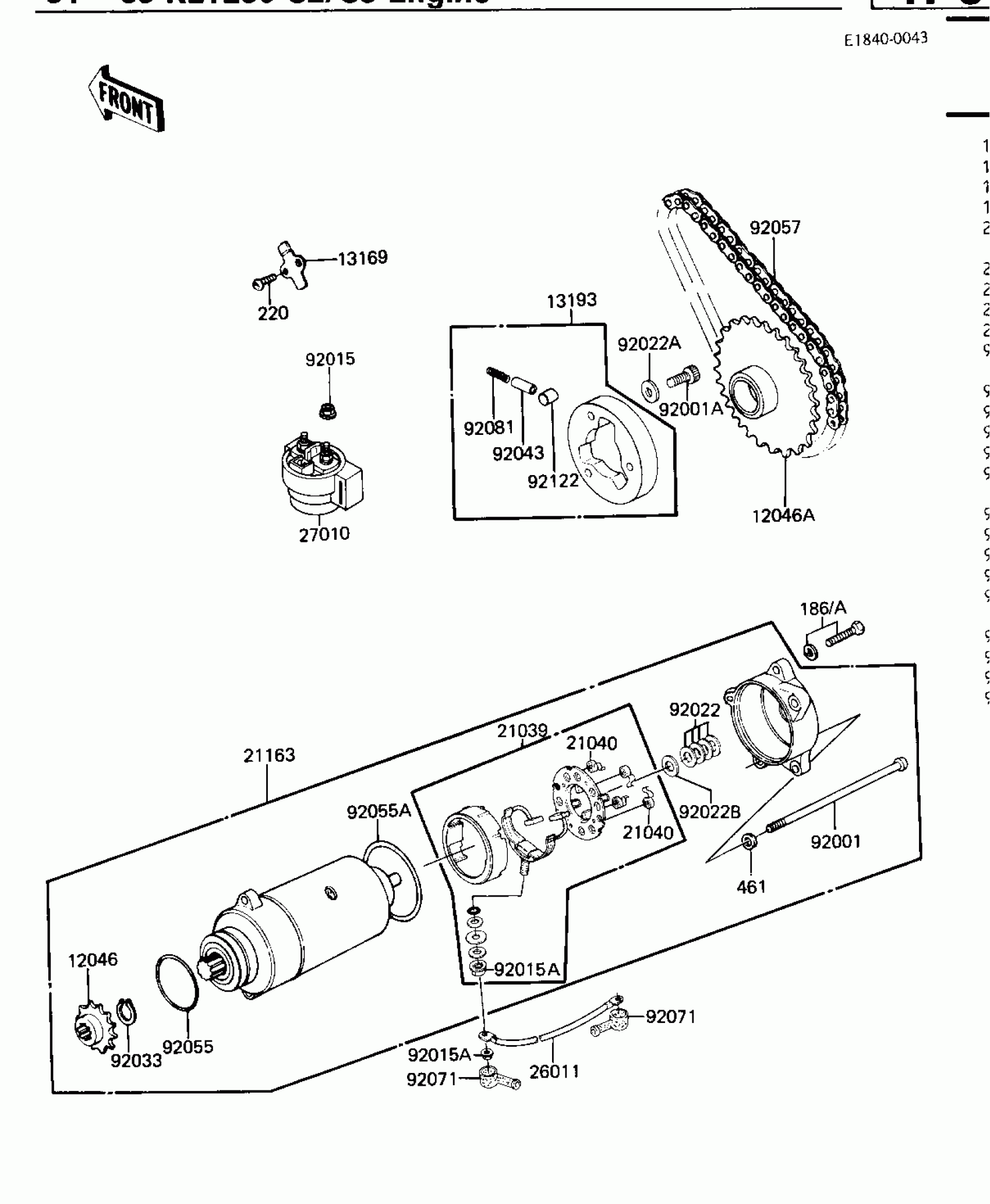

Kawasaki Prairie STARTER MOTOR STARTER CLUTCH ('84-'85 C2 Diagram

#

Description
Price

12046

SPROCKET,STARTER MOTO

12046-1004

Unavailable

12046A

SPROCKET,STARTER

12046-1023

Unavailable

13169

PLATE

13169-1010

Unavailable

13193

CLUTCH-ASSY-ONEWAY

13193-1006

$182.70

21039

BRUSH,CARBON

21039-1053

$96.05

21040

SPRING-BRUSH

21040-1003

$9.12

21163

STARTER-ELECTRIC

21163-1036

Unavailable

26011

WIRE-LEAD,STARTER MOT

26011-1201

$49.47

27010

SWITCH,STARTER

27010-1314

$41.37

92001

SCREW,PAN HEAD,6X130

92001-1046

Unavailable

92001A

BOLT-SOCKET,8X16

120P0816

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,9.1X18X0.2

21025-011

$5.42

92022A

WASHER,8.5X13.5X2

92022-1108

$3.85

92022B

WASHER,9.1X18X0.8

92022-1132

$5.42

92033

RING-SNAP,13MM

92033-037

$9.71

92043

PIN

92043-087

$10.11

92055

RING-O,42.8MM

21027-005

Unavailable

92055A

RING-O,64MM

92055-1086

$9.68

92057

CHAIN,DYNAMO

92057-1009

$50.46

92071

GROMMET,STARTER TERMINAL

21017-017

$7.48

92081

SPRING

92081-110

$3.78

92122

ROLLER,15X14.4

92122-001

$9.19

186A

BOLT-UPSET-WP

186Y0625

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.32

461

WASHER SPRING 6MM

461F0600

Unavailable
