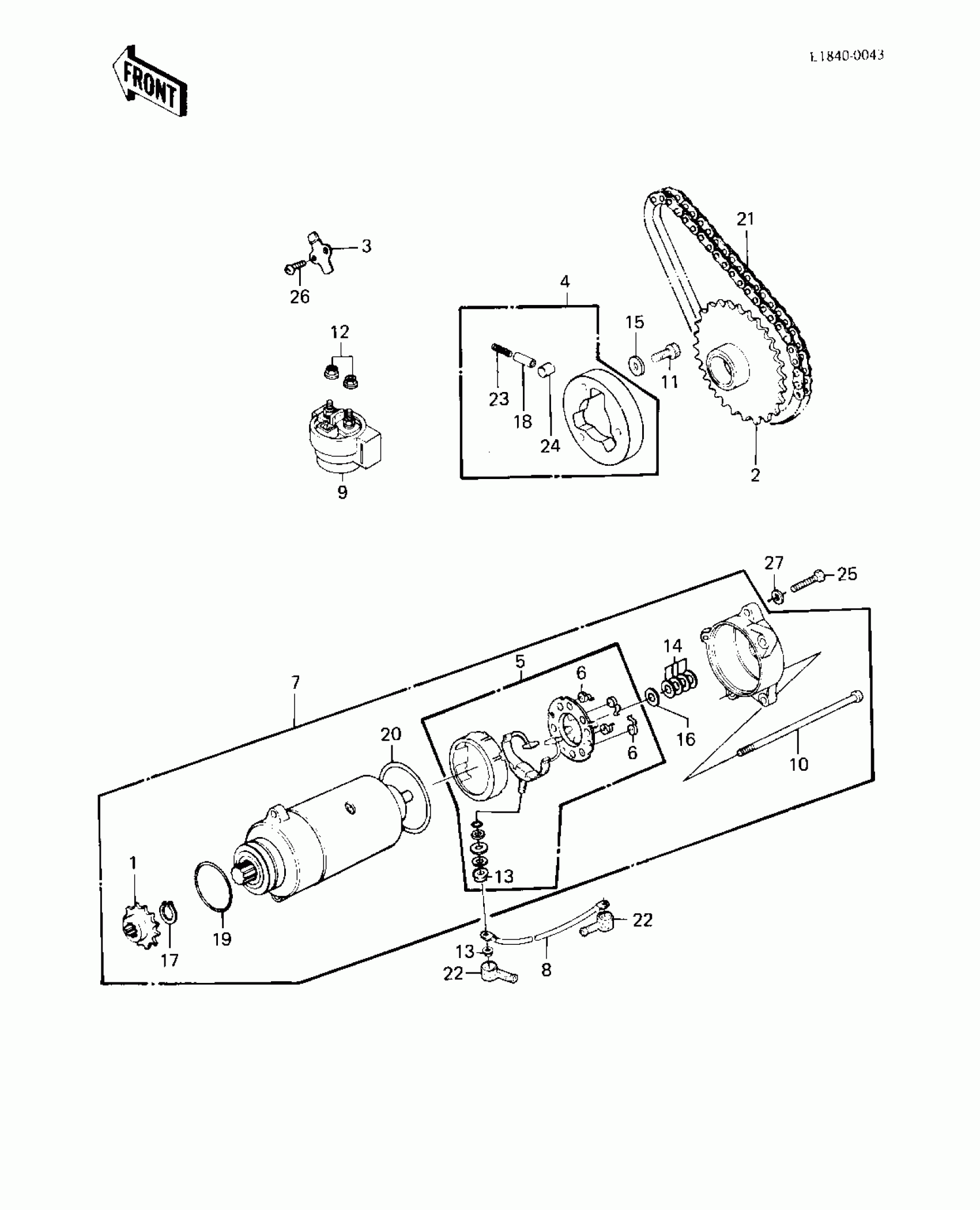

Kawasaki Prairie STARTER MOTOR/STARTER CLUTCH ('83 C1) Diagram
#
Description
Price
1
SPROCKET,STARTER MOTO
12046-1004
Unavailable
2
SPROCKET,STARTER
12046-1023
Unavailable
3
PLATE
13169-1010
Unavailable
4
CLUTCH-ASSY-ONEWAY
13193-1006
$178.91
5
BRUSH,CARBON
21039-1053
$94.23
6
SPRING-BRUSH
21040-1003
$9.41
7
STARTER-ELECTRIC
21163-1036
Unavailable
8
WIRE-LEAD,STARTER MOT
26011-1201
$48.53
9
SWITCH,STARTER
27010-1314
$45.86
10
SCREW,PAN HEAD,6X130
92001-1046
Unavailable
11
BOLT-SOCKET,8X16
120P0816
$4.15
12
NUT,FLANGED,6MM
92015-1078
Unavailable
13
NUT,FLANGED,6MM
92015-1078
Unavailable
14
WASHER,9.1X18X0.2
21025-011
Unavailable
15
WASHER,8.5X13.5X2
92022-1108
$4.31
16
WASHER,9.1X18X0.8
92022-1132
$6.22
17
RING-SNAP,13MM
92033-037
$9.80
18
PIN
92043-087
$12.76
19
RING-O,42.8MM
21027-005
Unavailable
20
RING-O,64MM
92055-1086
$10.00
21
CHAIN,DYNAMO
92057-1009
$49.50
22
CAP,STARTING MOTOR
21017-020
$8.42
23
SPRING
92081-110
$4.76
24
ROLLER,15X14.4
92122-001
$11.60
25
BOLT-UPSET
112G0625
$3.62
26
SCREW-PAN-CROS,6X14
220B0614
$1.48
27
WASHER PLAIN 6MM
411B0600
$2.84
