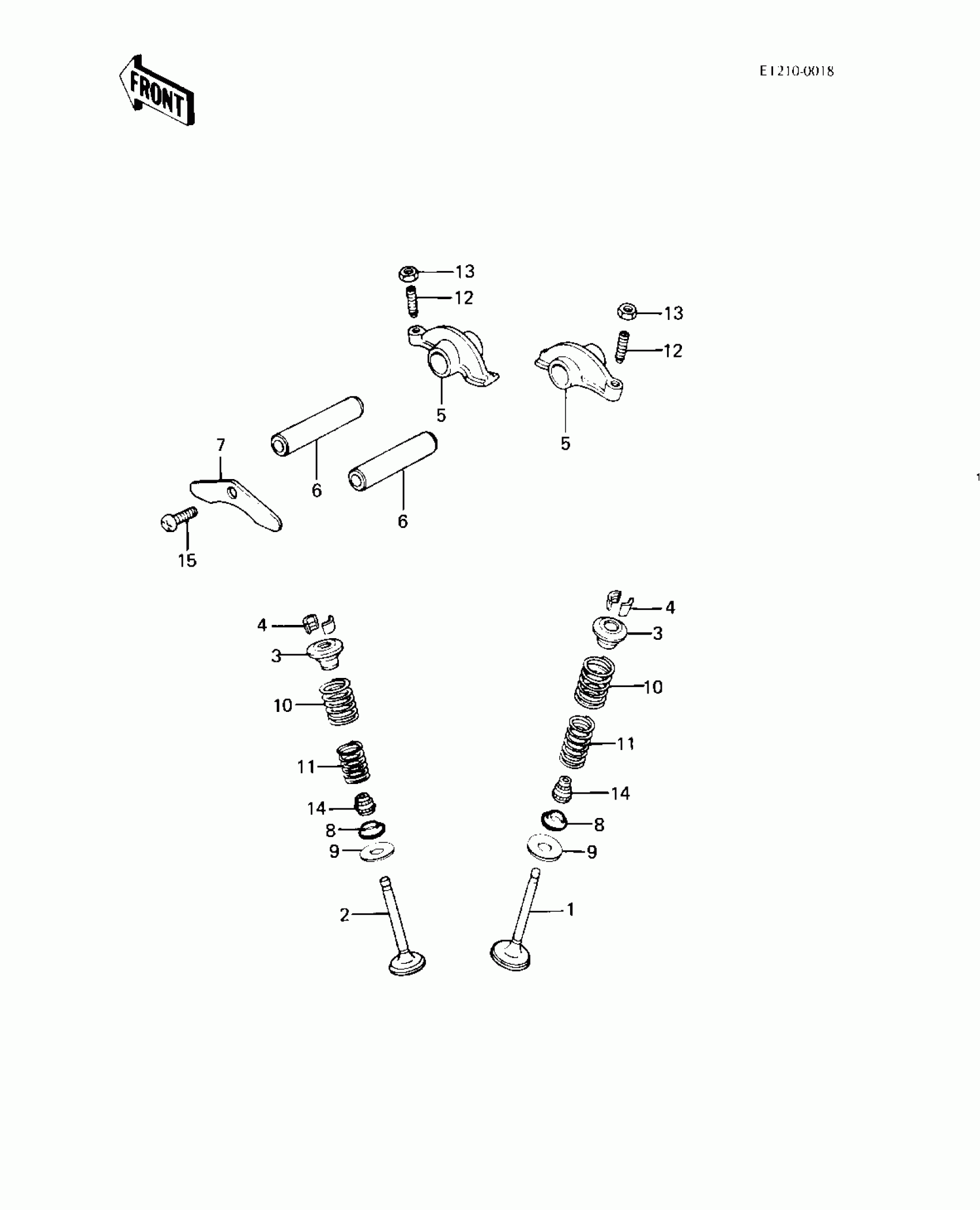

Kawasaki Prairie ROCKER ARMS/VALVES ('83 C1) Diagram

#

Description
Price

1

VALVE,INLET

12004-1006

Unavailable

2

VALVE,EXHAUST

12005-1005

$70.65

3

RETAINER,VALVE SPRING

12009-006

$11.50

4

COLLET,RETAINER

12011-004

$5.46

5

ARM,ROCKER

12016-012

Unavailable

6

SHAFT,ROCKER ARM

12020-004

$14.51

7

PLATE,POSITIONING

14014-034

$8.51

8

SEAT-SPRING,INNER

16007-1045

$6.16

9

SEAT-SPRING,OUTER

16007-1046

$6.16

10

SPRING,OUTER VALVE

12007-013

$16.53

11

SPRING,INNER VALVE

12007-014

$16.53

12

SCREW,6MM

92013-009

$6.57

13

NUT,6MM

92016-061

$4.69

14

SEAL-OIL,RV37129.5

92049-016

$18.35

15

SCREW PAN HEAD 6X10

220B0610

$3.14
