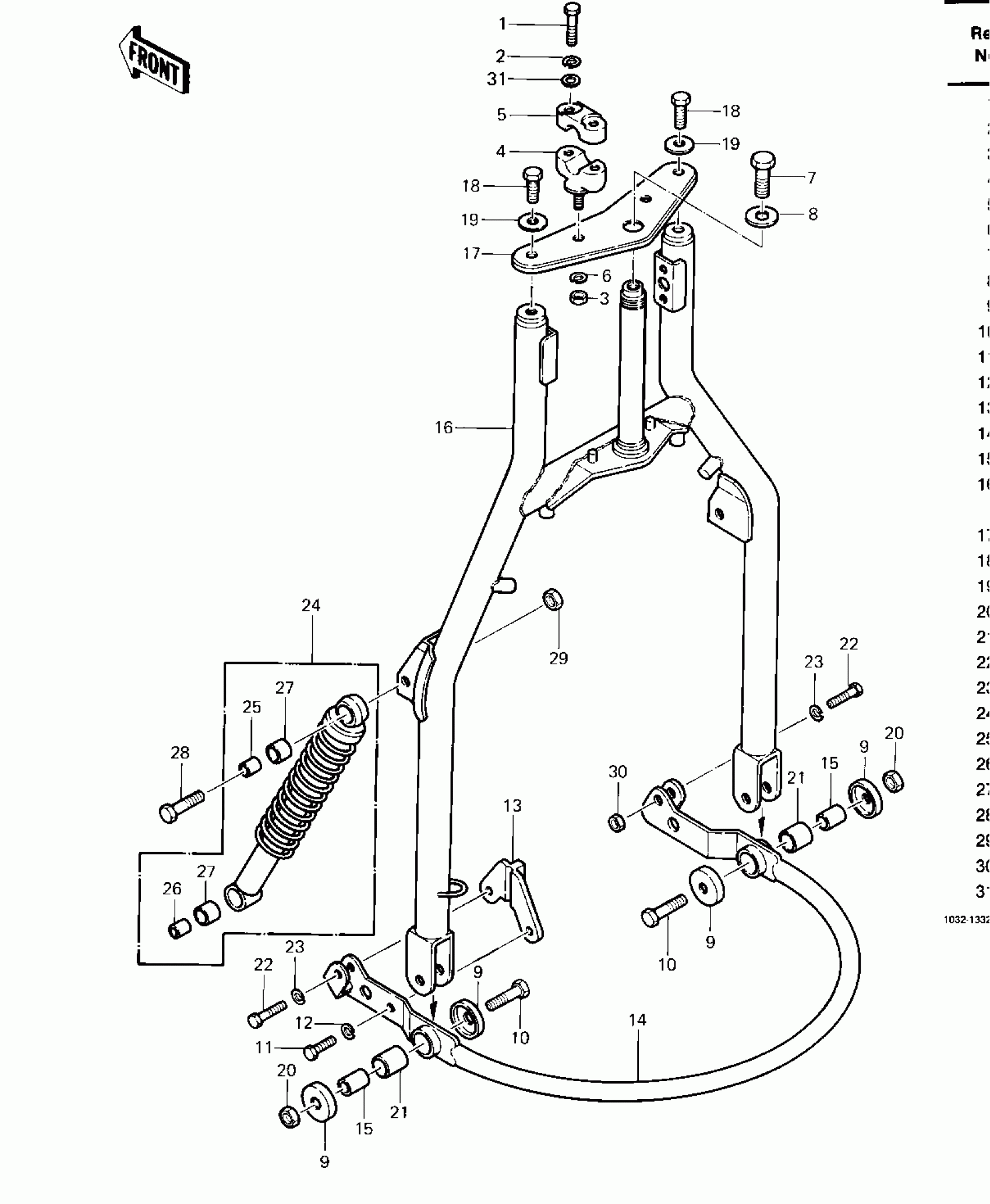

Kawasaki Prairie FRONT FORK ('83 C1) Diagram

#

Description
Price

1

BOLT,8X40

115G0840

$6.00

2

WASHER SPRING 8MM

461F0800

$0.40

3

NUT-HEX-FINE,10MM

314B1000

$0.67

4

HOLDER,HANDLEBAR,BUFF

46012-002-80

$29.86

5

HOLDER-HANDLE,UPP

46012-004

Unavailable

6

WASHER SPRING 10MM

461F1000

$0.67

7

BOLT,STEERING STEM

44041-072

Unavailable

8

WASHER,STEERING STEM

44043-056

Unavailable

9

CAP

11012-4004

Unavailable

10

BOLT HEX HEAD 14X55

113B1455

$6.88

11

BOLT-UPSET,10X20

112B1020

Unavailable

12

WASHER SPRING 10MM

461F1000

$0.67

13

STOPPER

32085-4006

$18.47

14

ARM-SUSP

39007-4003

$85.94

15

SLEEVE,14X20X25.3

42036-4003

$20.88

16

FRONT FORK,EBONY

44001-4007-8G

$222.48

16

FRONT FORK,RED

44001-4007-8R

$220.11

17

HOLDER-FORK UPPER

44039-4003

Unavailable

18

BOLT

92001-1742

$19.67

19

WASHER

92022-1381

$9.44

20

NUT-LOCK,14MM

92019-011

Unavailable

21

BUSHING,SWING ARM

92028-4001

Unavailable

22

BOLT,HEX HEAD 10X40

92001-1253

Unavailable

23

WASHER SPRING 10MM

461F1000

$0.67

24

SHOCKABSORBER,EBONY

45014-4010-8G

$122.39

25

COLLAR

92027-4023

$3.15

26

COLLAR,SHOCKABSORBER

92027-4024

$3.61

27

DAMPER,SHOCKABSORBER

92075-4030

$14.90

28

BOLT,12X45

92001-4018

$6.41

29

NUT-LOCK,12MM

92019-009

$7.29

30

NUT,LOCK,10MM

92019-021

$6.11

31

WASHER PLAIN 8MM

410B0800

$0.93
