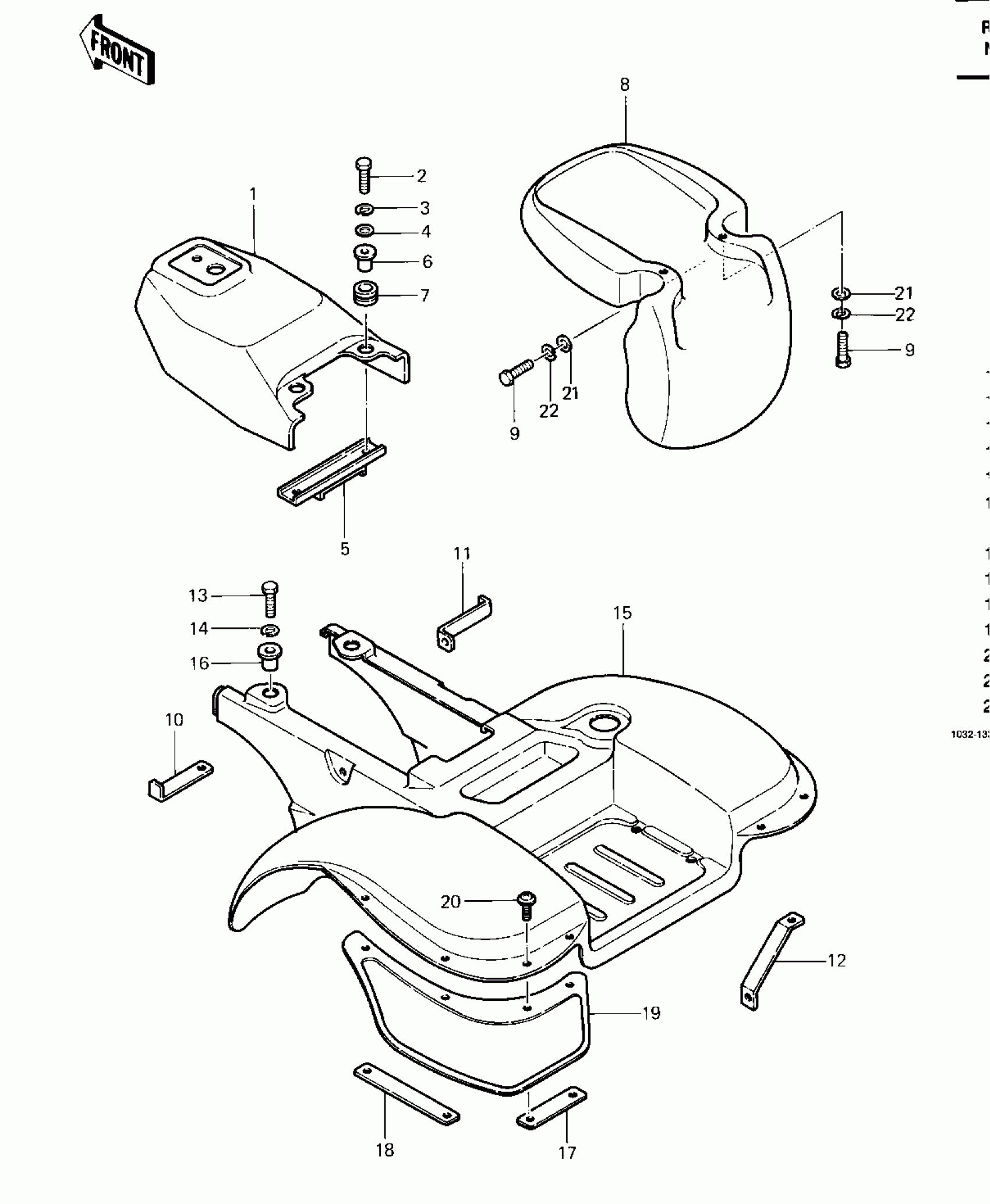

Kawasaki Prairie FENDERS/COVER ('83 C1) Diagram

#

Description
Price

1

COVER,FR,BLACK

14025-4015-6D

Unavailable

1

COVER,FR,RED

14025-4015-8S

Unavailable

2

BOLT-UPSET

112G0625

$3.62

3

WASHER SPRING 6MM

461F0600

$0.69

4

WASHER PLAIN 6MM

411B0600

$2.84

5

BRACKET-SEAT

32046-4012

$15.47

6

COLLAR

92027-194

$5.52

7

DAMPER RUBBER

92075-112

$4.31

8

FENDER-FR,BLACK

35004-4003-6D

Unavailable

8

FENDER-FR,RED

35004-4003-8S

Unavailable

9

BOLT-UPSET 6X14

112B0614

Unavailable

10

BRACE-FNDR,LH FT

35009-4001

$3.69

11

BRACE-FNDR,RH FT

35009-4002

$3.69

12

BRACE-FNDR,REAR

35009-4003

$3.62

13

BOLT-UPSET 6X14

112B0614

Unavailable

14

WASHER SPRING 6MM

461F0600

$0.69

15

FENDER-RR,BLACK

35022-4003-6D

Unavailable

15

FENDER-RR,RED

35022-4003-8S

Unavailable

16

COLLAR

92027-4020

$4.65

17

BRACKET,FLAP

11034-4062

Unavailable

18

BRACKET,FLAP

11034-4063

Unavailable

19

FLAP

35019-4004

Unavailable

20

SCREW,6X20

92009-1289

$4.31

21

WASHER,6.5X20X1.6

92022-125

$1.40

22

WASHER SPRING 6MM

461F0600

$0.69
