Description

Price

1

HEAD-ASSY-CYLINDER

11002-5030

Unavailable

2

GASKET,CYLINDER HEAD

11004-1002

Unavailable

3

CAP,ROCKER,F.BLACK

11012-1270

Unavailable

4

COVER,CAMSHAFT,F.BLAC

14025-1549

Unavailable

5

GUIDE-VALVE,INTAKE

12013-009

$27.29

6

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

7

BOLT,8X233

92003-220

$17.92

8

STUD,8X30

92004-1069

$7.51

9

PIN,DOWEL,10X14

92043-1037

$0.74

10

"0" RING

92055-105

$52.25

11

"O" RING,99M/M

92055-107

$10.37

12

RING-O,53.5X2.6

92055-112

$6.63

13

RING-O,10MM

92055-1149

$6.57

14

RING-O,9.8X2.4

92055-1150

$8.10

15

BOLT-UPSET

112G0625

$3.62

16

SCREW-PAN-CROS,6X16

220B0616

$2.84

17

WASHER PLAIN 6MM

411B0600

$2.84

18

RING-SNAP,VALVE GUIDE

92036-023

$0.48

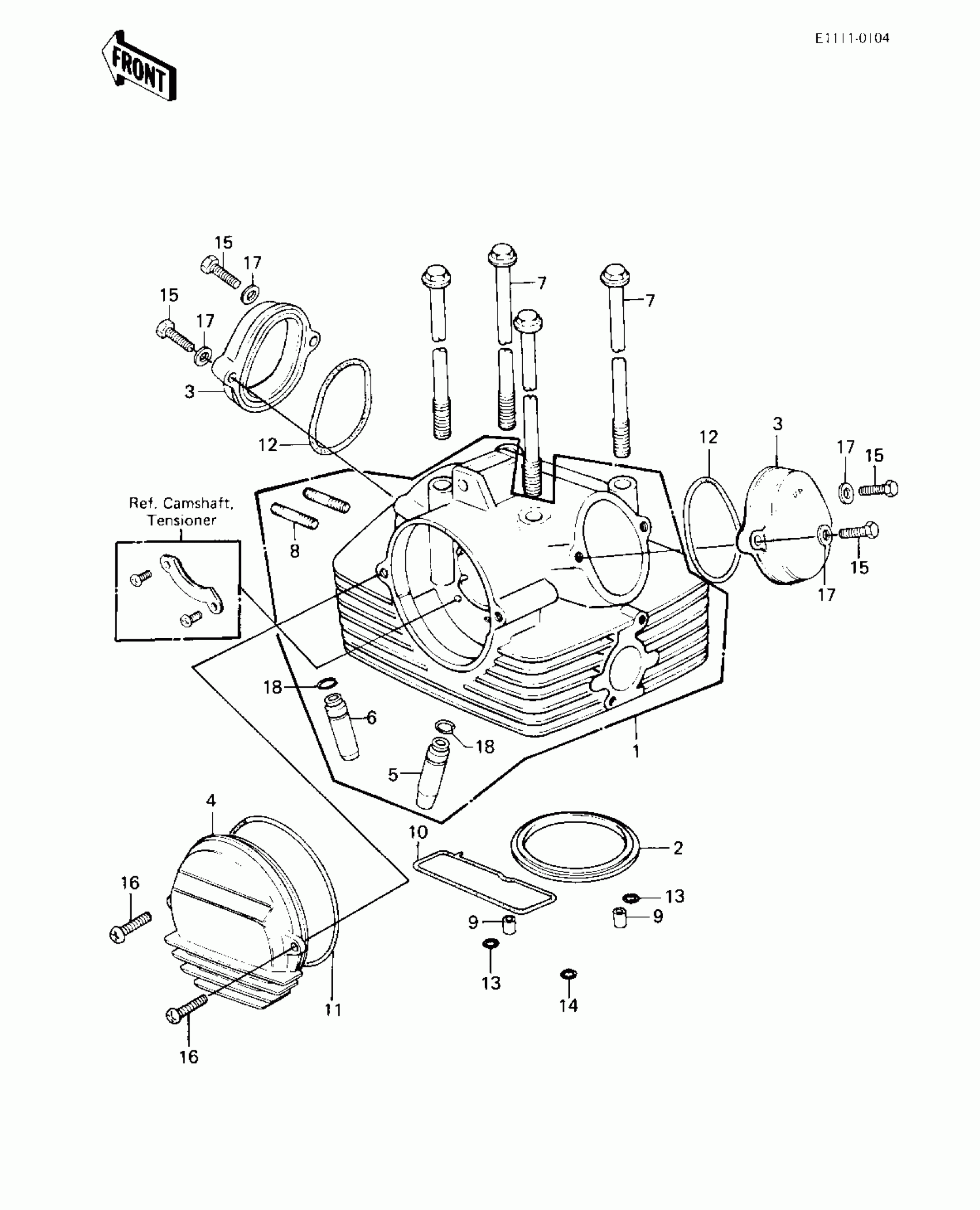

Kawasaki Prairie CYLINDER HEAD/COVERS ('83 C1) Diagram

HEAD-ASSY-CYLINDER

GASKET,CYLINDER HEAD

CAP,ROCKER,F.BLACK

COVER,CAMSHAFT,F.BLAC

GUIDE-VALVE,INTAKE

GUIDE-VALVE,EXHAUST

BOLT,8X233

STUD,8X30

PIN,DOWEL,10X14

"0" RING

"O" RING,99M/M

RING-O,53.5X2.6

RING-O,10MM

RING-O,9.8X2.4

BOLT-UPSET

SCREW-PAN-CROS,6X16

WASHER PLAIN 6MM

RING-SNAP,VALVE GUIDE
