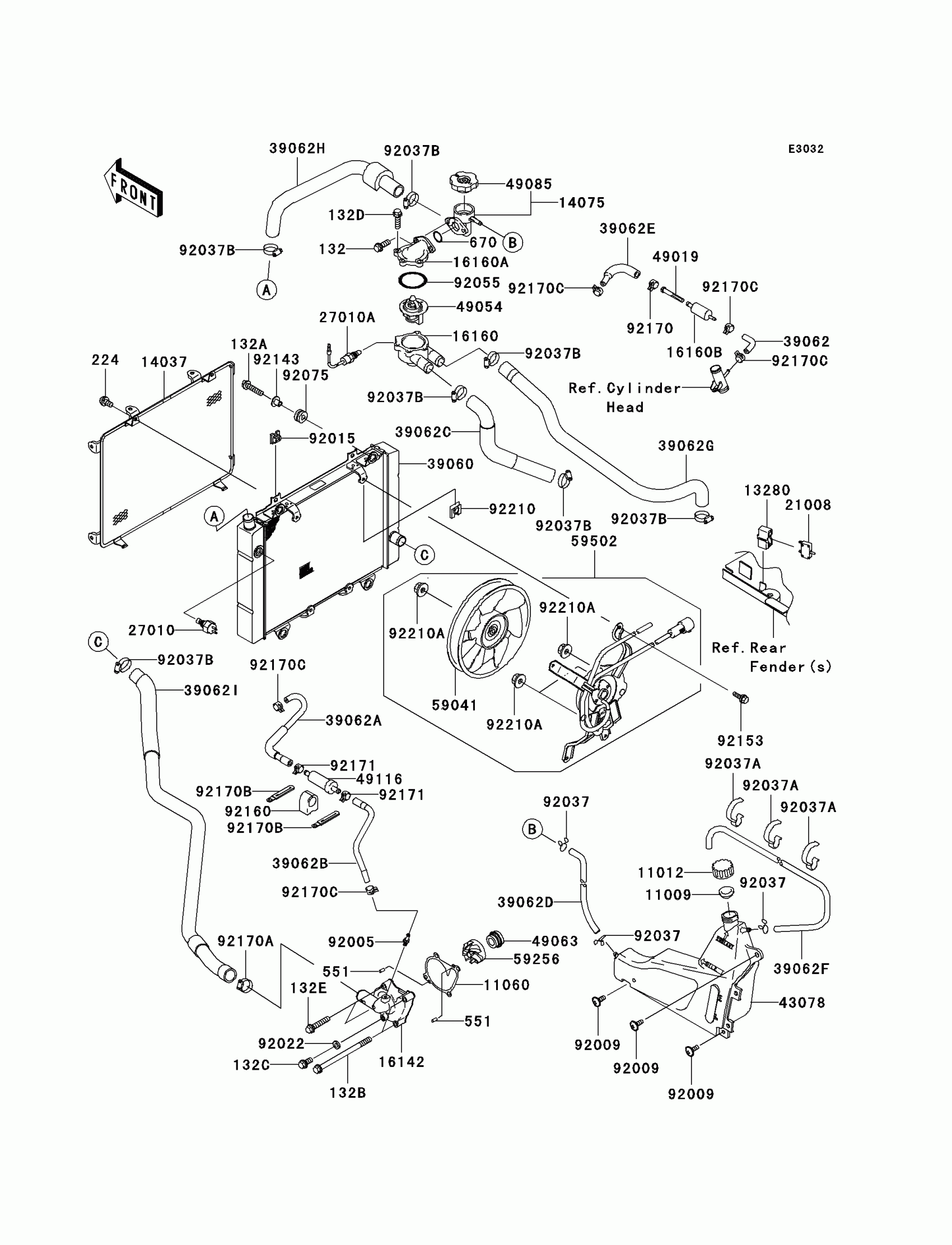

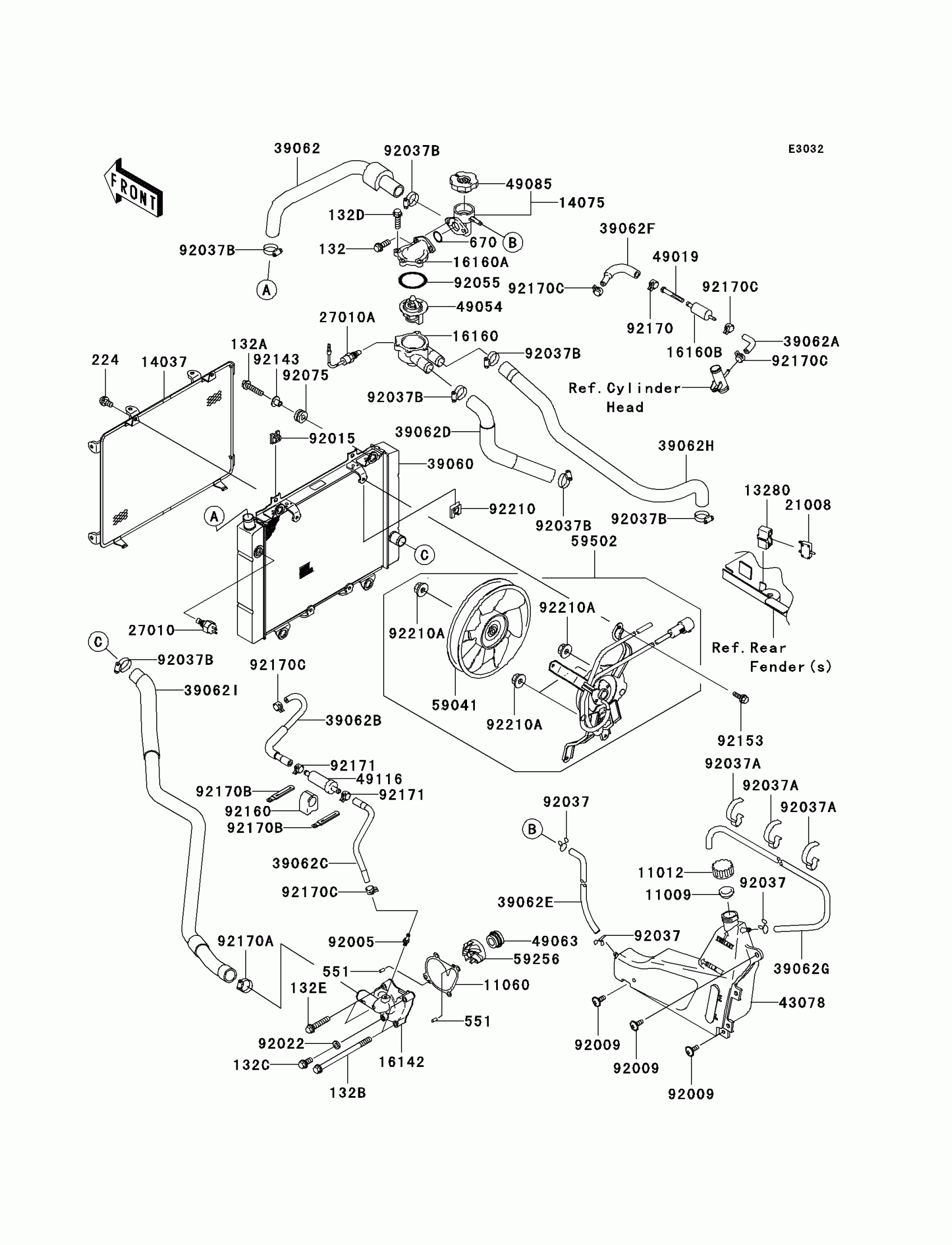

Kawasaki Prairie 700 4x4 Team Green Special Edition Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.49

11012

CAP

11012-1084

$1.72

11060

GASKET,WATER PUMP

11060-1964

$7.58

13280

HOLDER,BREAKER

13280-0082

$5.60

14037

SCREEN,RADIATOR

14037-1283

$79.64

14075

CAP-ASSY,PRESSURE

14075-1105

$168.92

16142

COVER-PUMP,WATER

16142-0002

$83.66

16160

BODY,THERMOSTAT,LWR

16160-1112

$74.17

16160A

BODY,THERMOSTAT,UPP

16160-1113

$63.84

16160B

BODY

16160-1359

$9.43

21008

BREAKER,FAN MOTOR

21008-0001

$26.03

27010

SWITCH,FAN

27010-1202

$98.81

27010A

SWITCH,SENSOR WATER

27010-1346

$120.07

39060

RADIATOR

39060-0011

$899.84

39062

HOSE-COOLING,THERMO-RADIATOR

39062-0081

$41.44

39062A

HOSE-COOLING,HEAD-FILTER

39062-1816

$5.47

39062B

HOSE-COOLING,CARB-VALVE

39062-1817

Unavailable

39062C

HOSE-COOLING,VALVE-WATER PUMP

39062-1818

Unavailable

39062D

HOSE-COOLING,HEAD,FR-THERMO

39062-1820

$13.33

39062E

HOSE-COOLING,THERMO-RESERV

39062-1823

$8.77

39062F

HOSE-COOLING,FILTER-CARB

39062-1858

$7.91

39062G

HOSE-COOLING,5.5X10.5X1030

39062-1872

$12.02

39062H

HOSE-COOLING,HEAD,RR-THERMO

39062-1874

$22.75

39062I

HOSE-COOLING,RADIATOR-PUMP

39062-1893

Unavailable

43078

RESERVOIR

43078-1171

Unavailable

49019

FILTER-WATER

49019-1068

$5.13

49054

THERMOSTAT

49054-1055

$54.56

49063

SEAL-MECHANICAL

49063-1055

$20.06

49085

CAP-ASSY-PRESSURE

49085-1067

$53.94

49116

VALVE-ASSY

49116-1190

$70.71

59041

FAN

59041-1062

$52.38

59256

IMPELLER

59256-1069

$21.38

59502

FAN-ASSY

59502-0012

$608.60

92005

FITTING,BLEED PIPE

92005-1337

$23.31

92009

SCREW,6X16

92009-1621

$3.60

92015

NUT

92015-1487

$4.80

92022

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,HOSE

92037-1552

$9.97

92037B

CLAMP,COOLING HOSE

92037-1589

$18.57

132

BOLT-FLANGED-SMALL

132H0616

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

132H0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X90

132J0690

Unavailable

132C

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

132D

BOLT-FLANGED-SMALL,6X20

132Y0620

Unavailable

132E

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

224

SCREW-PAN-WP-CROS,6X12

224C0612

Unavailable

551

PIN-DOWEL,4X8

551A0408

$1.49

670

O RING,20MM

670B2020

$1.49

92055

RING-O,44.7X2.4

92055-1279

$7.34

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92143

COLLAR

92143-1353

$8.58

92153

BOLT

92153-0531

$2.61

92160

DAMPER,VALVE

92160-1451

$10.76

92170

CLAMP

92170-1491

$7.45

92170A

CLAMP

92170-1497

$13.00

92170B

CLAMP

92170-1514

$4.31

92170C

CLAMP

92170-2042

$1.49

92171

CLAMP

92171-0515

$6.38

92210

NUT

92210-1323

$4.18

92210A

NUT

92210-1396

$3.43
