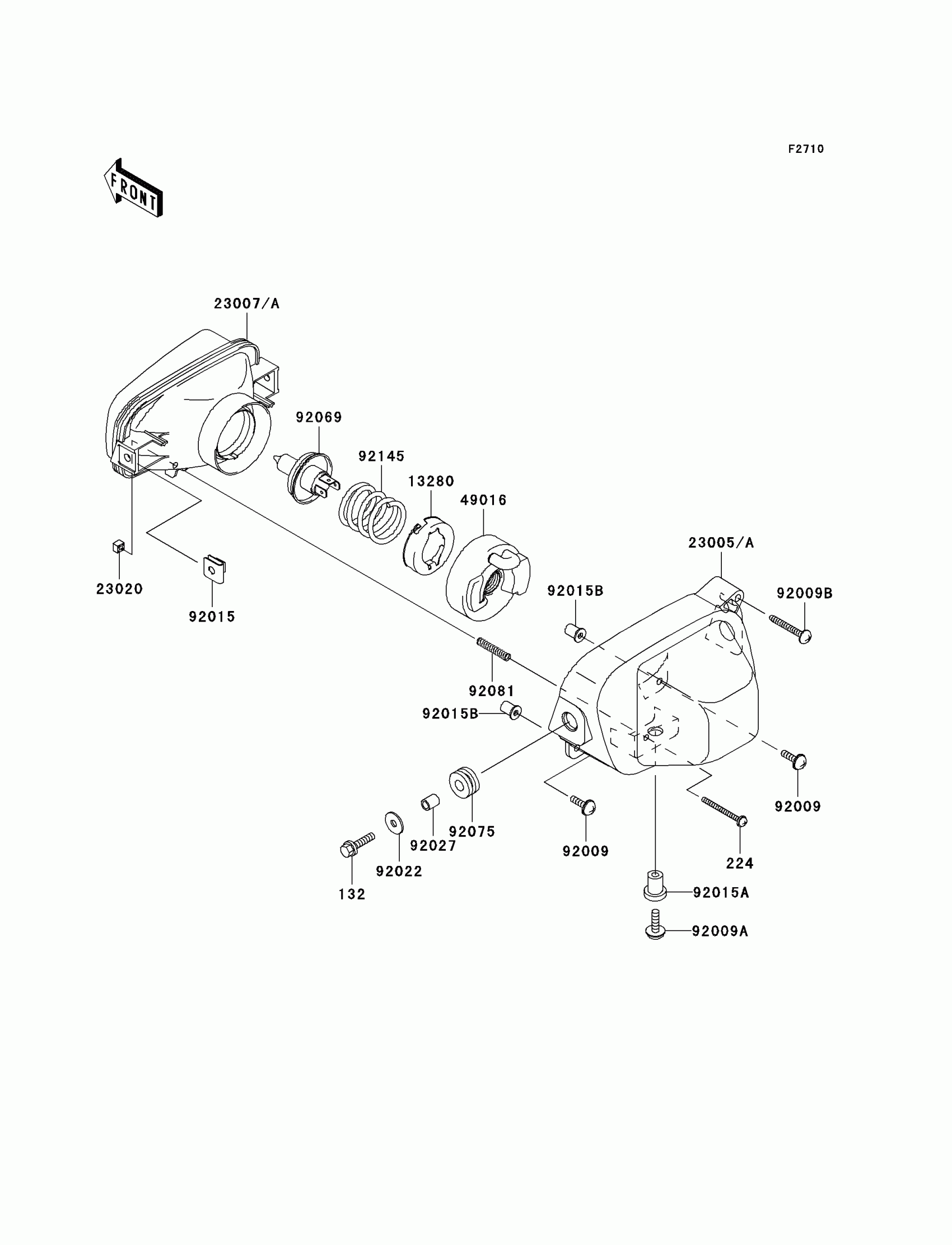

Kawasaki Prairie 700 4x4 Team Green Special Edition Headlight(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132H0625

Unavailable

224

SCREW-PAN-WP-CROS,4X45

224D0445

$1.69

13280

HOLDER,BULB SETTING

13280-1198

$9.78

23005

BODY-COMP-HEAD LAMP,LH

23005-1180

$61.25

23005A

BODY-COMP-HEAD LAMP,RH

23005-1181

$61.25

23007

LENS-COMP,HEAD LAMP,LH

23007-1389

$48.10

23007A

LENS-COMP,HEAD LAMP,RH

23007-1390

$48.10

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

49016

COVER-SEAL,HEAD LAMP

49016-1213

$9.41

92009

SCREW,5X16,BLACK

92009-1654

$3.13

92009A

SCREW

92009-1664

$4.50

92009B

SCREW,TAPPING,5X40

92009-1928

$2.52

92015

NUT,6MM

92015-1094

$8.58

92015A

NUT,RUBBER,6MM

92015-1692

$7.34

92015B

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 45/45W,T15

92069-1114

$29.28

92075

DAMPER,10X24X12

92075-1690

$5.00

92081

SPRING,FOCUS ADJUST

92081-1896

$5.25

92145

SPRING,BULB SETTING

92145-1346

$11.59
