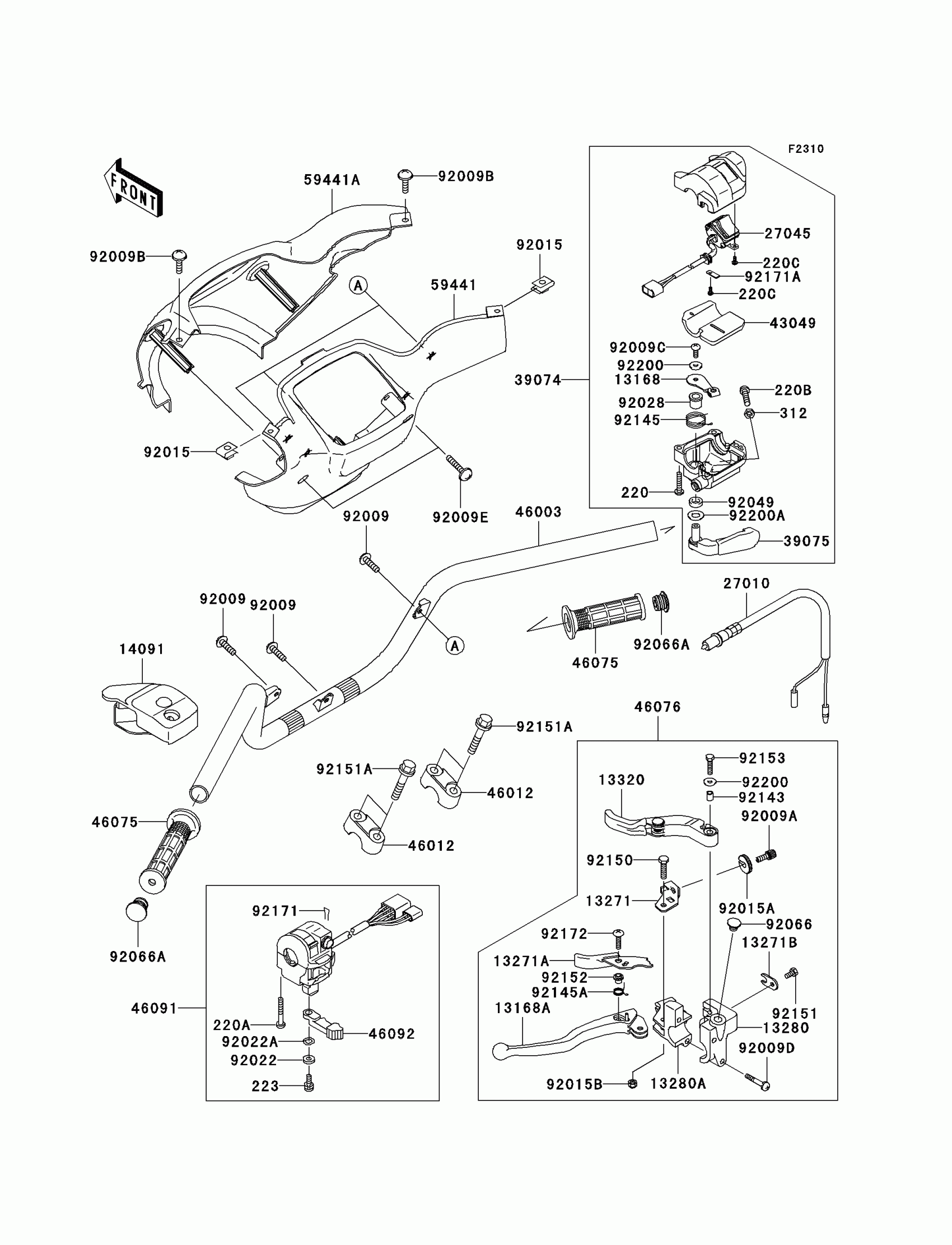

Kawasaki Prairie 700 4x4 Team Green Special Edition Handlebar Diagram

#

Description
Price

13168

LEVER

13168-1715

$8.37

13168A

LEVER,LH

13168-1736

$25.19

13271

PLATE,LOCK

13271-1259

$16.64

13271A

PLATE,LEVER LOCK

13271-1635

$13.32

13271B

PLATE,WIRE OUTER STOPPER

13271-1636

$3.75

13280

HOLDER,DIFF LOCK LEVER

13280-1226

$28.99

13280A

HOLDER,LEVER,LH

13280-1227

$28.99

13320

LEVER-ASSY,DIFF LOCK

13320-1018

$65.11

14091

COVER,DIFF LOCK LEVER

14091-1403

$17.03

27010

SWITCH,BRAKE

27010-1294

$35.85

27045

SWITCH-ASSY

27045-1081

$31.16

39074

LEVER-ASSY-THROTTLE

39074-1062

$163.93

39075

LEVER-THROTTLE

39075-1062

$29.26

43049

PACKING

43049-1088

$10.63

46003

HANDLE

46003-1580

$67.22

46012

HOLDER-HANDLE

46012-1168

$15.44

46075

GRIP,HANDLE

46075-7501

$15.87

46076

LEVER-ASSY-GRIP,DIFF LOCK

46076-1238

$105.23

46091

HOUSING-ASSY-CONTROL,LH

46091-1847

$186.61

46092

LEVER-GRIP,CHOKE

46092-1217

$4.15

59441

COVER-HANDLE,RR,L.GREEN

59441-1150-290

Unavailable

59441A

COVER-HANDLE,FR,L.GREEN

59441-1159-290

Unavailable

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92009A

SCREW,CABLE ADJUST,8MM

92009-1435

$12.40

92009B

SCREW,5X12

92009-1652

$3.03

92009C

SCREW

92009-1959

$1.73

92009D

SCREW,6X30

92009-1961

$1.98

92009E

SCREW,TAPPING,5X30

92009-1965

$2.02

92015

NUT,5MM

92015-1573

$4.97

92015A

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$6.75

92015B

NUT

92015-1829

$3.12

92022

WASHER,5MM

92022-1837

$2.31

92022A

WASHER,WAVE,5MM

92022-1838

$2.31

92028

BUSHING

92028-1986

$3.15

92049

SEAL-OIL

92049-1578

$3.55

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92066A

PLUG

92066-1550

$8.66

92143

COLLAR

92143-1216

$5.54

92145

SPRING

92145-1392

$3.25

92145A

SPRING

92145-1429

$7.46

220

SCREW-PAN-CROS,5X25

220C0525

$2.66

220A

SCREW-PAN-CROS,5X35

220C0535

$1.49

220B

SCREW-PAN-CROS,6X25,B

220C0625

Unavailable

220C

SCREW-PAN-CROSS

220D0308

Unavailable

223

SCREW-PAN-WS-CROS,5X12

223C0512

$3.29

312

NUT-HEX,6MM,BLACK

312C0600

Unavailable

92150

BOLT

92150-1420

Unavailable

92151

BOLT,5X10

92151-1975

$2.00

92151A

BOLT,FLANGED,8X40

92151-2130

$1.53

92152

COLLAR

92152-1176

$3.85

92153

BOLT,5X20

92153-1129

$2.63

92171

CLAMP,CLIP

92171-1095

$2.49

92171A

CLAMP

92171-1344

$2.00

92172

SCREW,5X20

92172-0078

$1.98

92200

WASHER

92200-1558

$4.42

92200A

WASHER

92200-1559

$4.42
