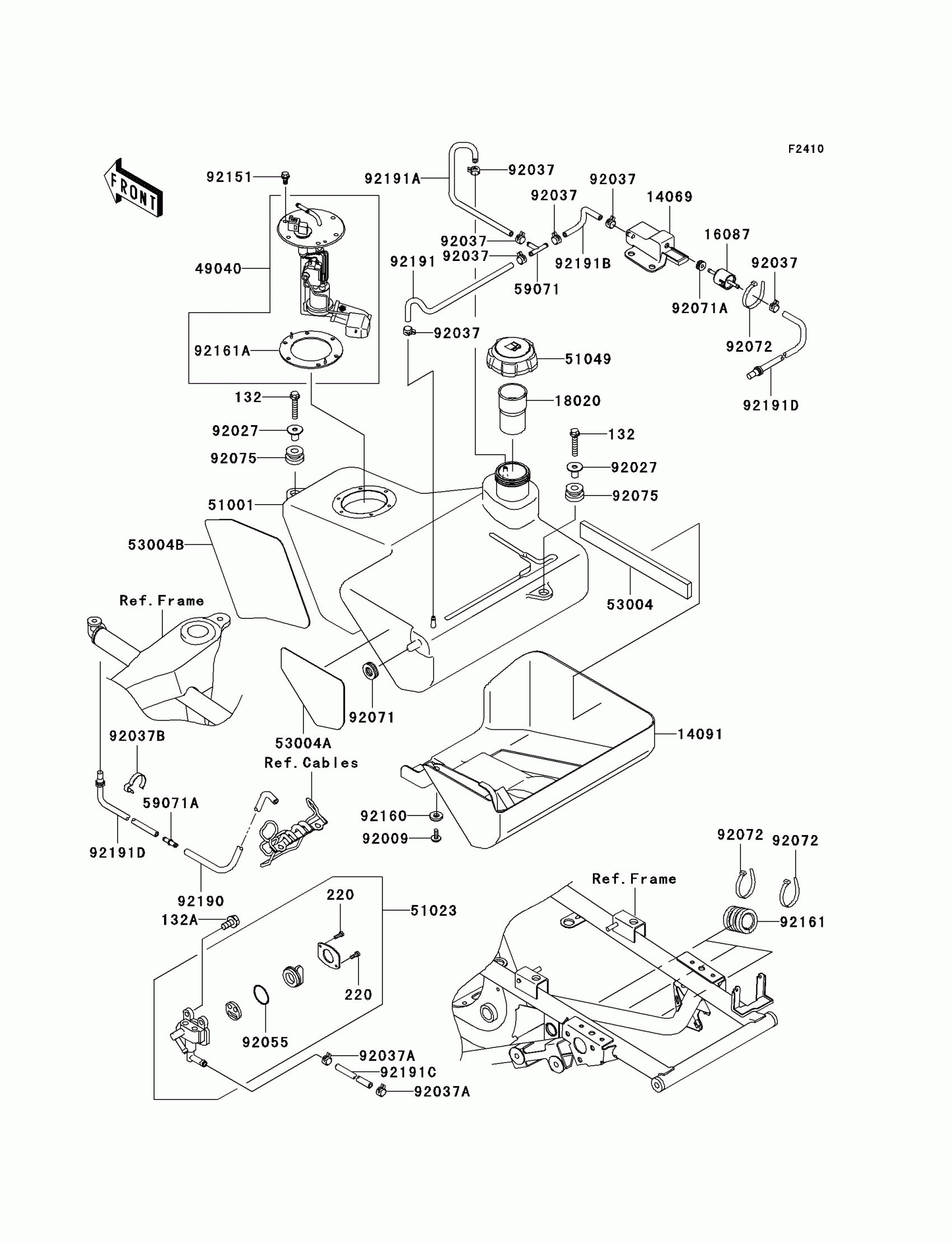

Kawasaki Prairie 700 4x4 Team Green Special Edition Fuel Tank Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X30
132G0630
$2.48
132A
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
14069
BREATHER,TANK
14069-1069
$19.72
14091
COVER,FUEL TANK
14091-1404
$57.46
16087
VALVE-CHECK
16087-0003
$51.80
18020
BAFFLE,FUEL TANK CAP
18020-1278
$11.05
49040
PUMP-FUEL
49040-0006
$942.25
51001
TANK-COMP-FUEL
51001-1638
$241.48
51023
TAP-ASSY,FUEL
51023-0002
$132.21
51049
CAP-TANK,FUEL
51049-1128
$68.82
53004
MAT,FUEL TANK COVER
53004-1161
$7.91
53004A
MAT,FUEL TANK
53004-1164
$16.32
53004B
MAT,FUEL TANK
53004-1165
$15.28
59071
JOINT
59071-3705
$4.91
59071A
JOINT
59071-3717
$3.55
92009
SCREW,6X12
92009-1480
$3.21
92027
COLLAR,L=16.1
92027-1847
$6.22
92037
CLAMP,TUBE
92037-1461
$3.88
92037A
CLAMP,TUBE
92037-1505
$4.76
92037B
CLAMP,HOSE
92037-1552
$9.97
92055
RING-O
92055-0017
$2.49
92071
GROMMET,AIR SUCTION VALVE
92071-1249
$4.11
92071A
GROMMET
92071-1266
$5.18
92072
BAND,L=188
92072-1239
$1.73
92075
DAMPER
92075-1787
$6.57
92151
BOLT,FLANGED,5X11.5
92151-1754
$1.86
92160
DAMPER
92160-1017
$5.78
92161
DAMPER,FUEL TANK,RR
92161-1111
$6.37
92161A
DAMPER,FUEL PUMP
92161-1272
$17.18
92190
TUBE,5X9X530
92190-1256
$7.61
92191
TUBE,TANK-FRONT
92191-1639
$11.32
92191A
TUBE,TANK-REAR
92191-1640
$12.25
92191B
TUBE,5X9X160
92191-1641
$4.34
92191C
TUBE,5.3X10.5X425
92191-1665
$11.64
92191D
TUBE,TANK BREATHER
92191-1666
$11.32
