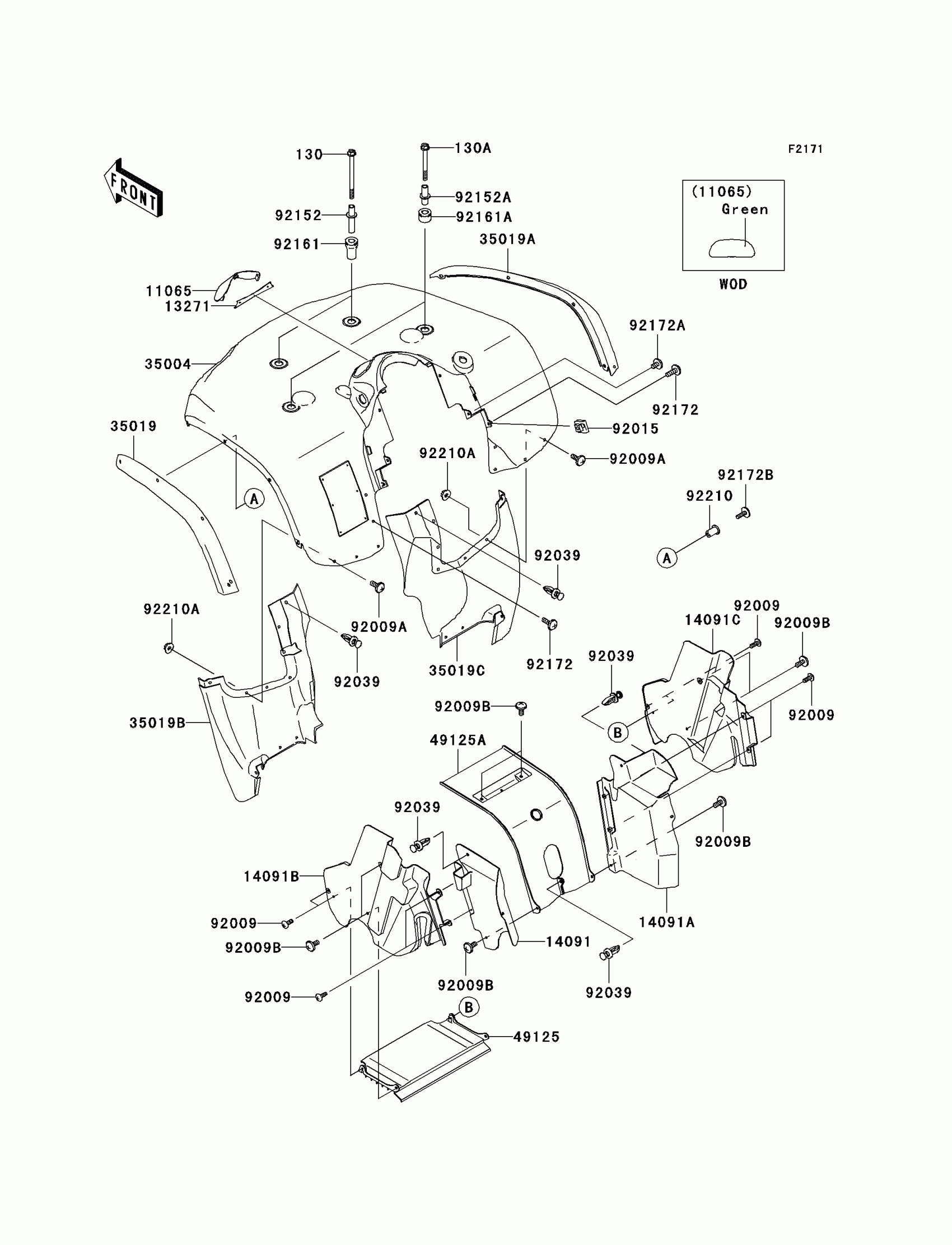

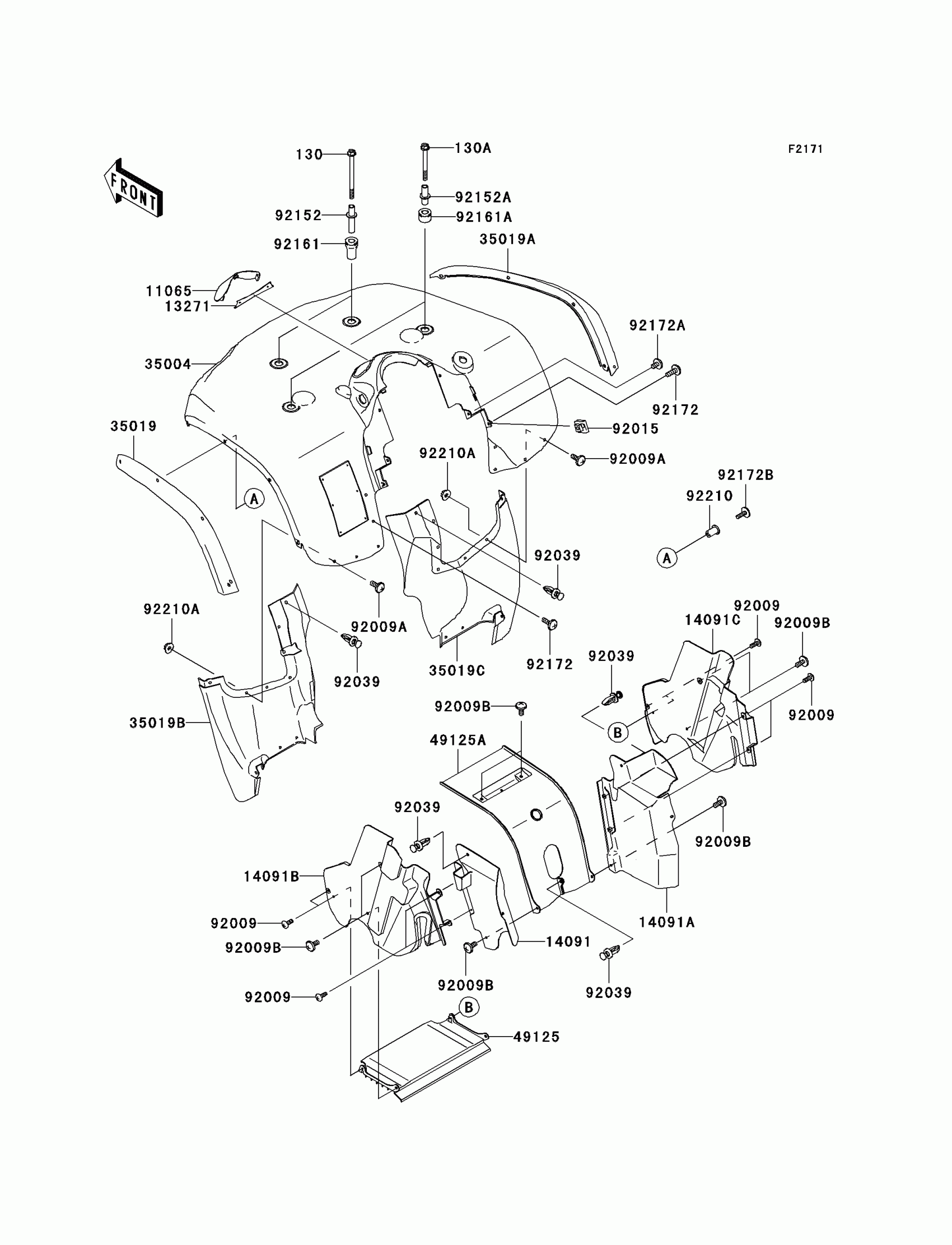

Kawasaki Prairie 700 4x4 Team Green Special Edition Front Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,8X105

130S08105

Unavailable

130A

BOLT-FLANGED,8X75

130S0875

Unavailable

11065

CAP,FR FENDER,L.GREEN

11065-1204-290

$7.73

13271

PLATE,FR FENDER CAP

13271-1640

$7.12

14091

COVER,SIDE,RR,LH

14091-1282

$14.88

14091A

COVER,SIDE,RR,RH

14091-1283

$14.88

14091B

COVER,SIDE,FR,LH

14091-1428

$18.24

14091C

COVER,SIDE,FR,RH

14091-1429

$18.24

35004

FENDER-FRONT,L.GREEN

35004-1452-290

Unavailable

35019

FLAP,FR,SIDE,LH,F.BLACK

35019-1365-6Z

$22.91

35019A

FLAP,FR,SIDE,RH,F.BLACK

35019-1366-6Z

$22.91

35019B

FLAP,FR,RR,LH,F.BLACK

35019-1391-6Z

$37.10

35019C

FLAP,FR,RR,RH,F.BLACK

35019-1392-6Z

$37.10

49125

SHROUD,FR,LWR

49125-0006

$16.39

49125A

SHROUD,FR,UPP

49125-1081

$23.98

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92009A

SCREW,6X16

92009-1621

Unavailable

92009B

SCREW,6X14

92009-1662

$2.99

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92039

RIVET

92039-1229

$0.80

92152

COLLAR,L=90

92152-0025

$15.56

92152A

COLLAR,L=60.7

92152-0026

$11.20

92161

DAMPER,L=58.5

92161-0035

$8.81

92161A

DAMPER,L=25.5

92161-1166

$4.31

92172

SCREW,6X18

92172-0002

$1.98

92172A

SCREW,6X10

92172-0005

$1.73

92172B

SCREW,5X18

92172-1063

$2.19

92210

NUT,POP,5MM

92210-0012

$2.15

92210A

NUT,6MM

92210-1368

$1.80
