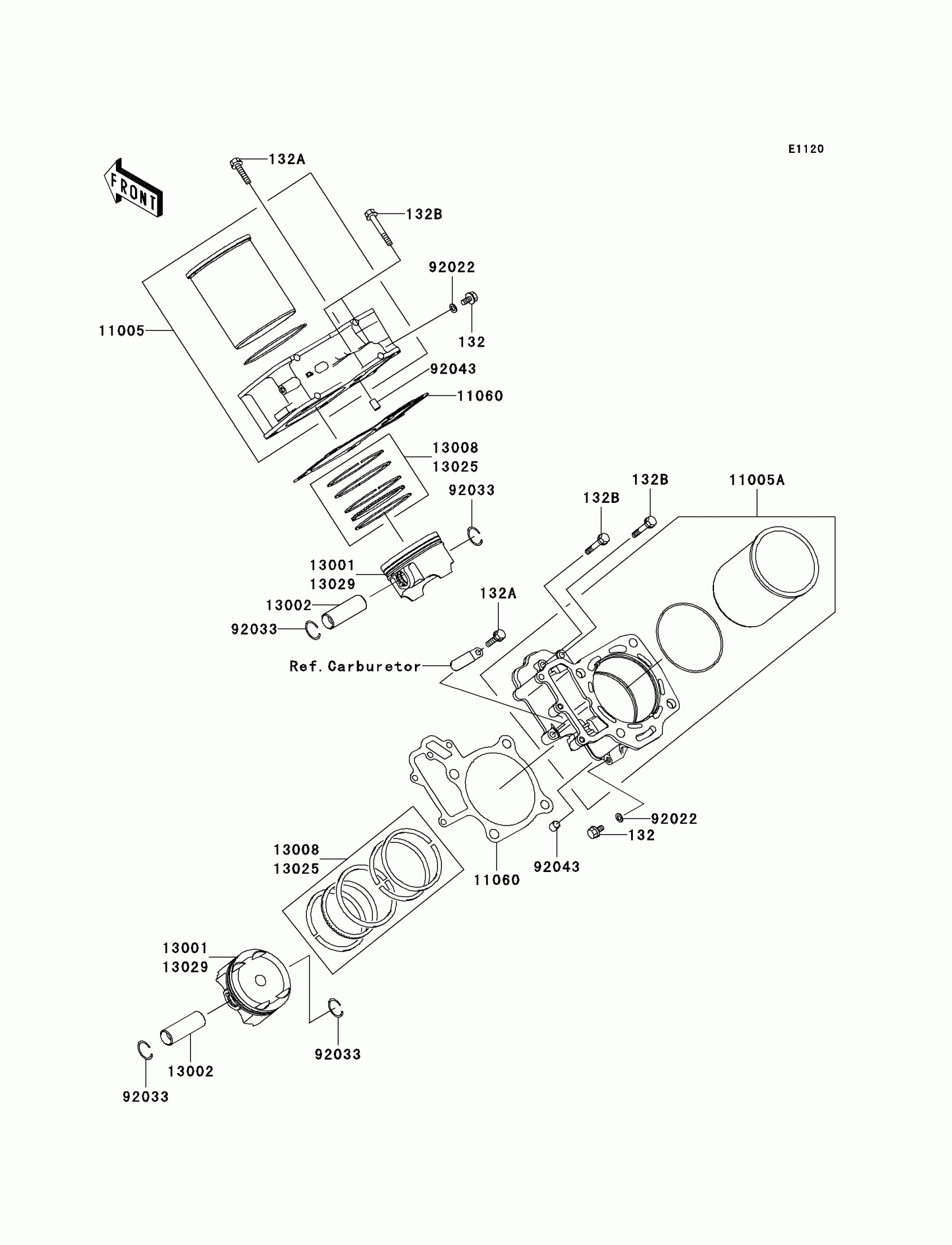

Kawasaki Prairie 700 4x4 Team Green Special Edition Cylinder/Piston(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132Y0612

$1.92

132A

BOLT-FLANGED-SMALL,6X30

132Y0630

$3.41

132B

BOLT-FLANGED-SMALL,6X40

132Y0640

$4.80

11005

CYLINDER-ENGINE,FR

11005-1990

$623.31

11005A

CYLINDER-ENGINE,RR

11005-1992

$623.31

11060

GASKET,CYLINDER BASE

11060-1965

$21.01

13001

PISTON-ENGINE,STD

13001-1658

$140.79

13002

PIN-PISTON

13002-1060

$22.21

13008

RING-SET-PISTON,STD

13008-1215

$75.75

13025

RING-SET-PISTON L,O/S 0.50

13025-0005

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-0007

Unavailable

92022

WASHER,6.2X11X1

92022-304

$3.65

92033

RING-SNAP

92033-1207

$2.38

92043

PIN,10.1X12X14

92043-4009

$6.22
